Part 1: FPGA Development Board Introduction

The entire structure of the development board is designed by inheriting our
usual core board + expansion board model. Use high-speed inter-board
connectors to connect between the core board and the expansion board.
The core board is the smallest system mainly composed of XC7K325 + 4
DDR3 + QSPI FLASH. Adopt Xilinx's KINTEX-7 series chip, model
XC7K325TFFG900. Four DDR3 memory chips are connected to the HP port of
the FPGA chip. Each DDR3 has a capacity of up to 512M bytes, forming a
64-bit data bandwidth. A 128Mb QSPI FLASH is used to statically store the
configuration file of the FPGA chip or other user data.
The carrier board expands a wealth of peripheral interfaces for the core
board, including 1 PCIex8 interface, 4 SFP interfaces, 2 SDI Output interface, 2
SDI Input interface, 2 40-pin expansion interface and some keys LEDs.

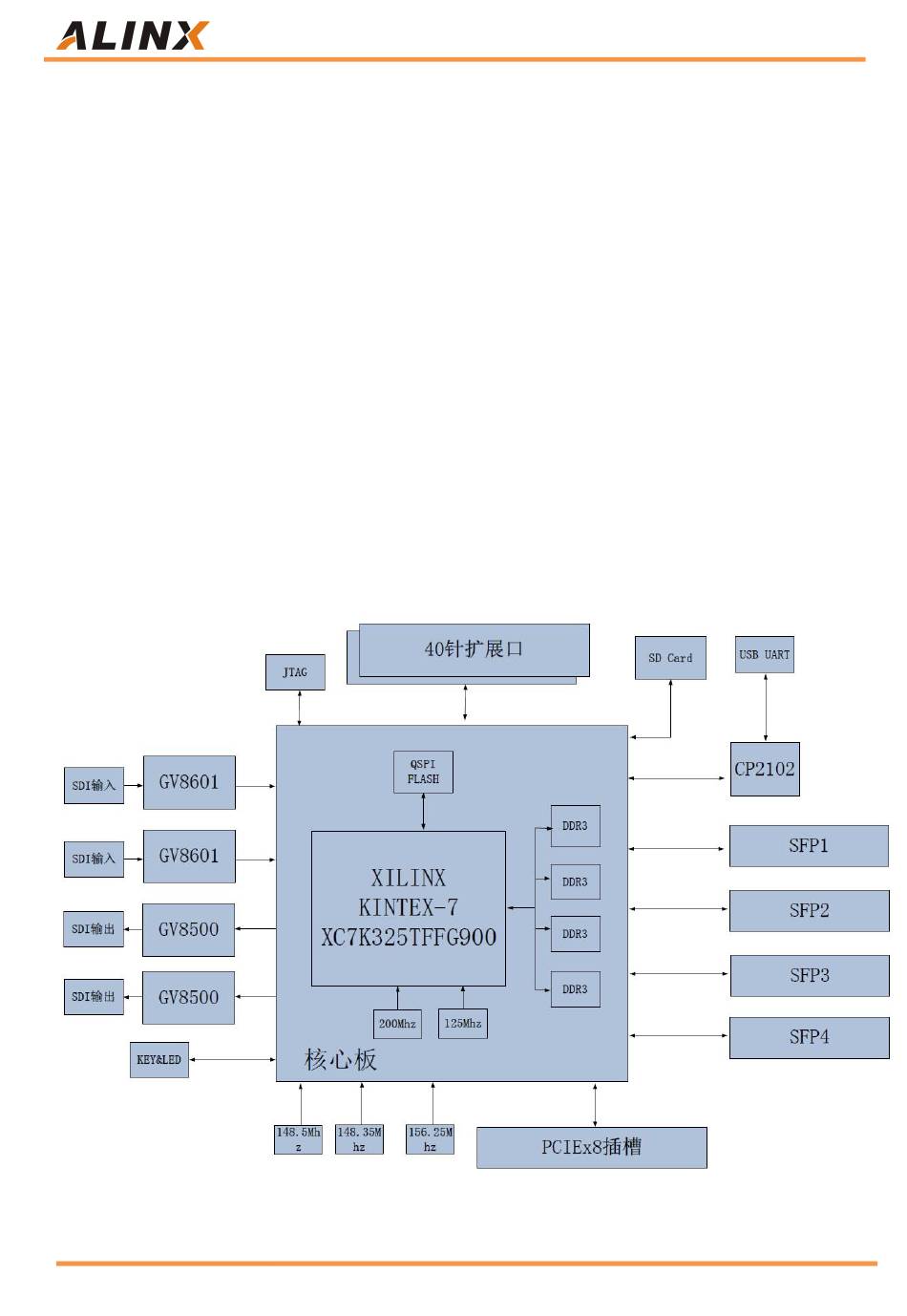

Figure 1-1: The Schematic Diagram of the AV7K300
