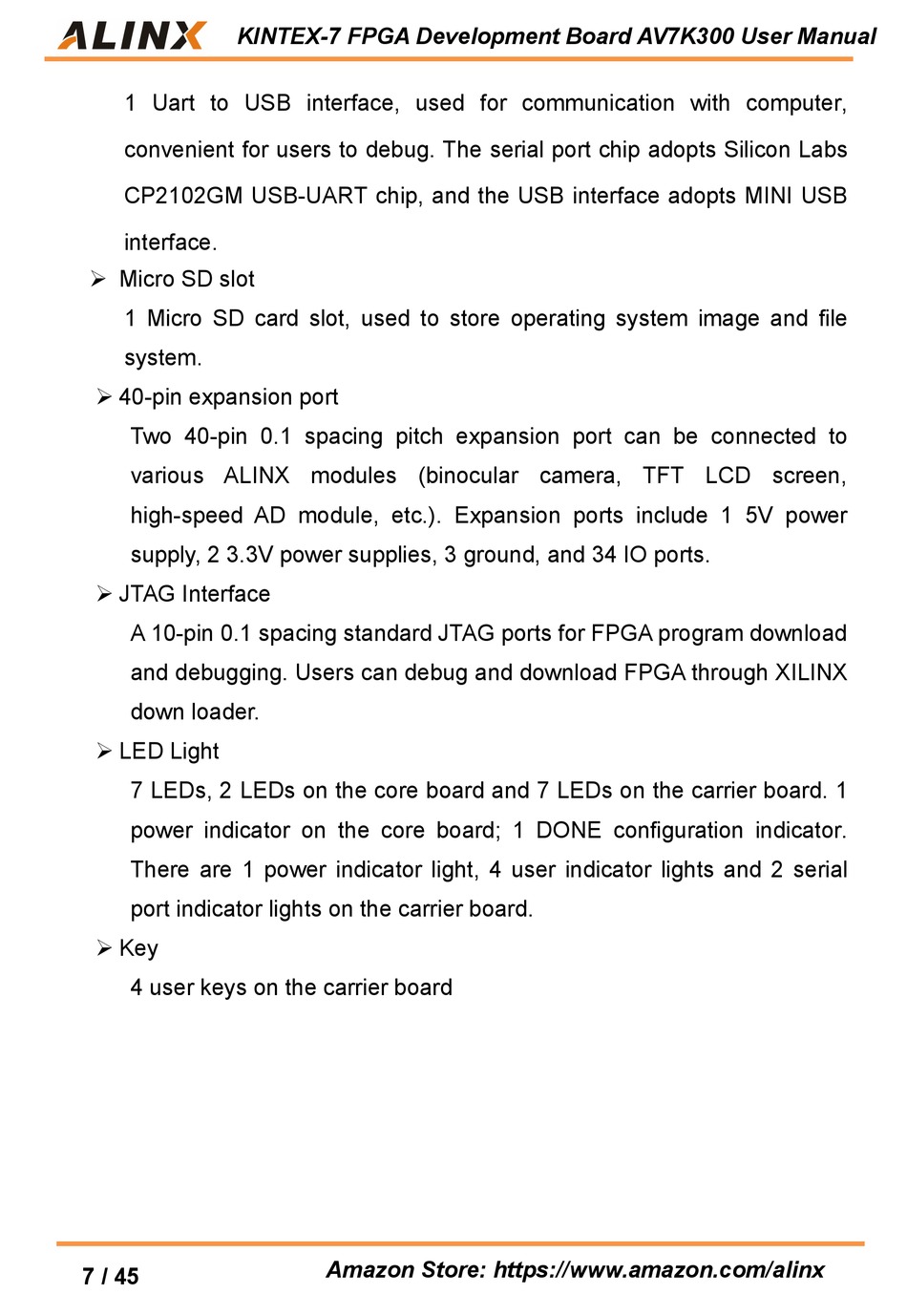

KINTEX-7 FPGA Development Board AV7K300 User Manual
1 Uart to USB interface, used for communication with computer,
convenient for users to debug. The serial port chip adopts Silicon Labs
CP2102GM USB-UART chip, and the USB interface adopts MINI USB
interface.
 Micro SD slot
1 Micro SD card slot, used to store operating system image and file
system.
 40-pin expansion port
Two 40-pin 0.1 spacing pitch expansion port can be connected to
various ALINX modules (binocular camera, TFT LCD screen,
high-speed AD module, etc.). Expansion ports include 1 5V power
supply, 2 3.3V power supplies, 3 ground, and 34 IO ports.
 JTAG Interface
A 10-pin 0.1 spacing standard JTAG ports for FPGA program download
and debugging. Users can debug and download FPGA through XILINX
down loader.
 LED Light
7 LEDs, 2 LEDs on the core board and 7 LEDs on the carrier board. 1
power indicator on the core board; 1 DONE configuration indicator.
There are 1 power indicator light, 4 user indicator lights and 2 serial
port indicator lights on the carrier board.
 Key
4 user keys on the carrier board
