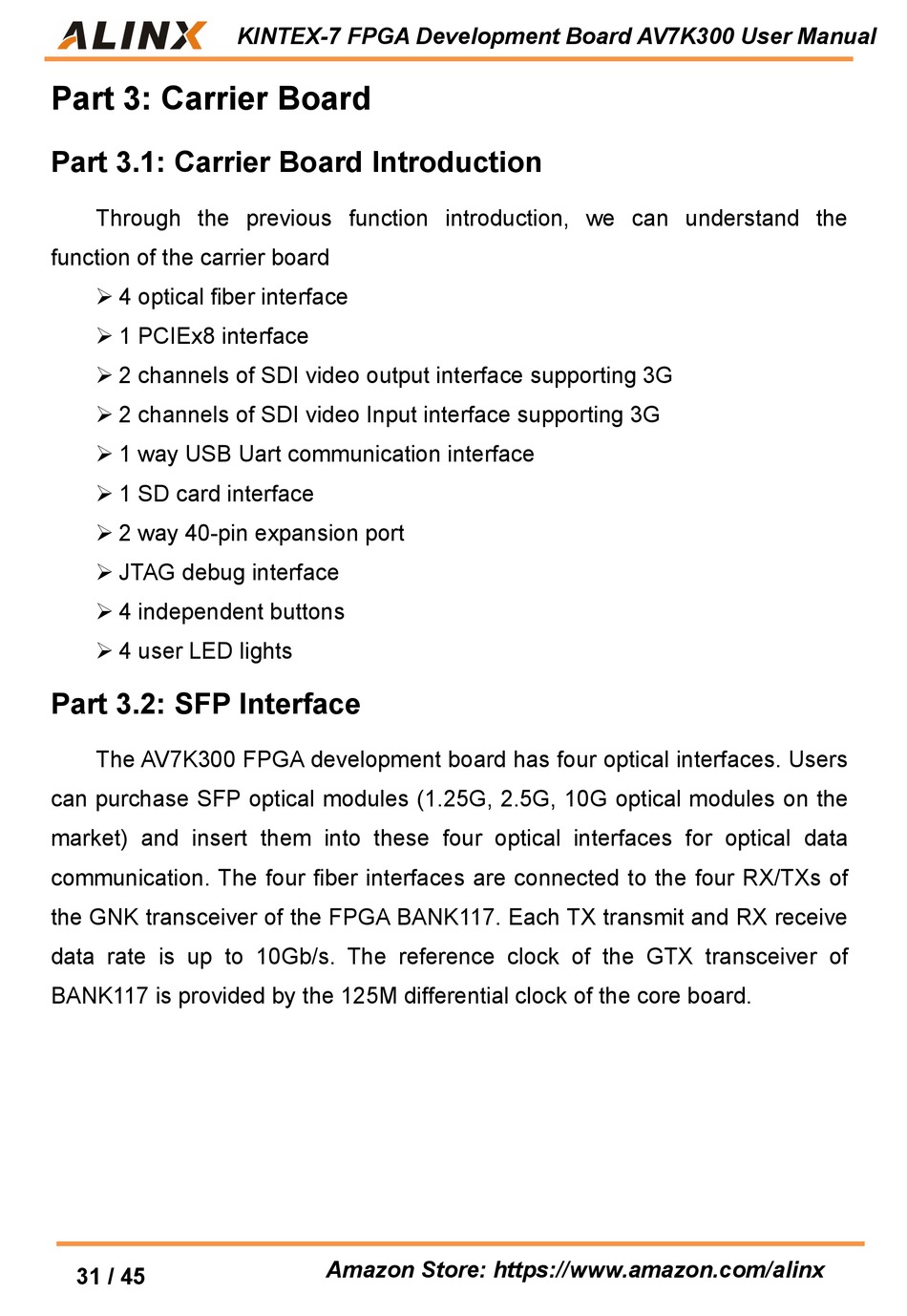

Part 3: Carrier Board

Part 3.1: Carrier Board Introduction

Through the previous function introduction, we can understand the
function of the carrier board
 4 optical fiber interface
 1 PCIEx8 interface
 2 channels of SDI video output interface supporting 3G
 2 channels of SDI video Input interface supporting 3G
 1 way USB Uart communication interface
 1 SD card interface
 2 way 40-pin expansion port
 JTAG debug interface
 4 independent buttons
 4 user LED lights

Part 3.2: SFP Interface

The AV7K300 FPGA development board has four optical interfaces. Users
can purchase SFP optical modules (1.25G, 2.5G, 10G optical modules on the
market) and insert them into these four optical interfaces for optical data
communication. The four fiber interfaces are connected to the four RX/TXs of
the GNK transceiver of the FPGA BANK117. Each TX transmit and RX receive
data rate is up to 10Gb/s. The reference clock of the GTX transceiver of
BANK117 is provided by the 125M differential clock of the core board.
