Part 3.10: JTAG debug port

A JTAG interface is reserved JTAG interface one the AV7K300 FPGA
development board for downloading FPGA programs or firmware to FLASH. In
order to prevent damage to the FPGA chip caused by hot plugging, a protection
diode is added to the JTAG signal to ensure that the voltage of the signal is
within the range accepted by the FPGA to avoid damage of the FPGA chip.

Part 3.11: Power Supply

The power input voltage of the AV7K300 FPGA development board is
DC12V, and the FPGA development board can be powered by the PCIE slot or
an external +12V power supply. On the carrier board, the voltage is converted
43 / 45
KINTEX-7 FPGA Development Board AV7K300 User Manual
B12_L19_N
B12_11_N
B12_L3_P
B12_L5_P

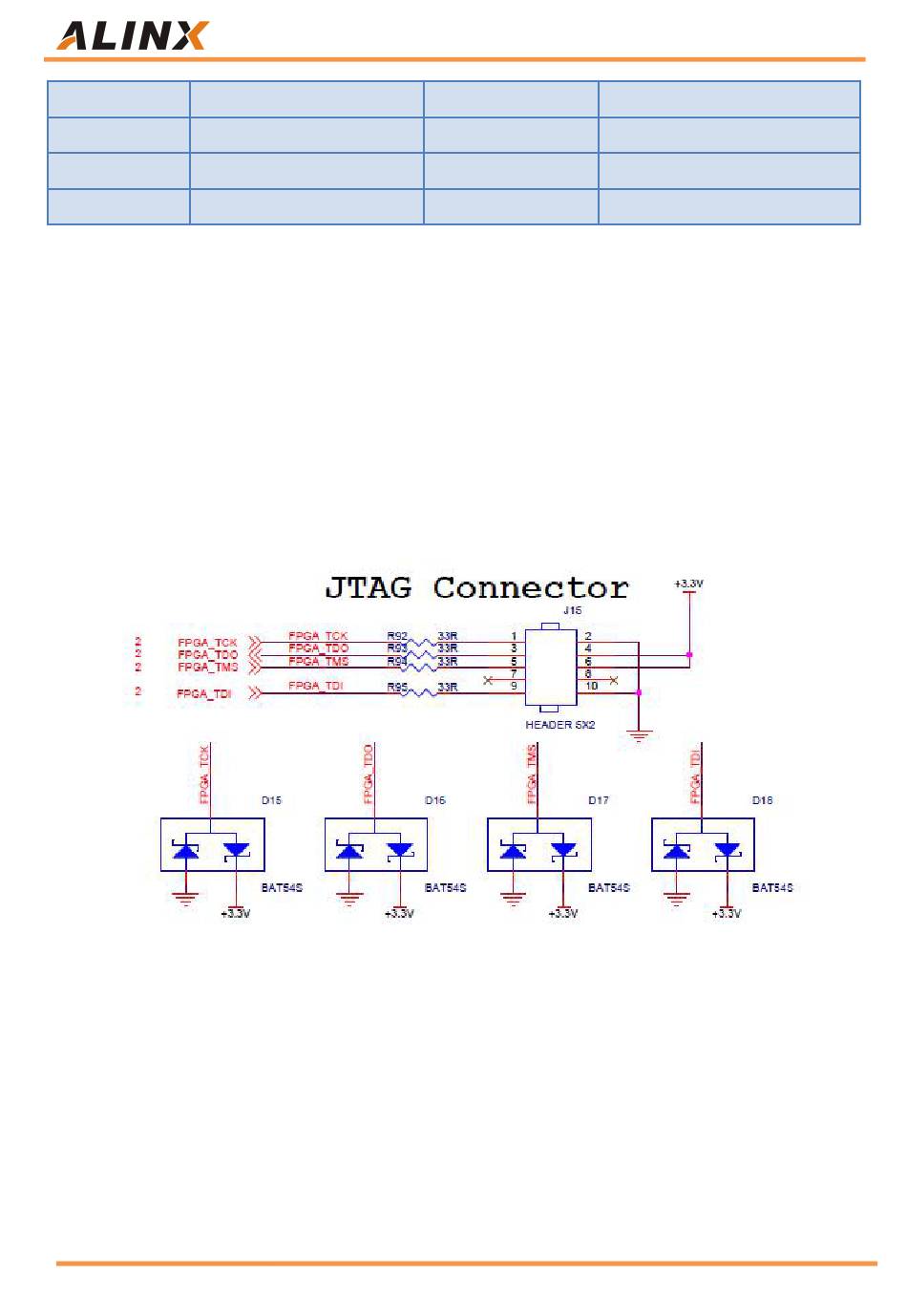

Figure 3-10-1: JTAG Interface Schematic
Amazon Store: https://www.amazon.com/alinx
AF21
AF23
AB22
AC20
User KEY1
User KEY2
User KEY3
User KEY4
