KINTEX-7 FPGA Development Board AV7K300 User Manual

Part 2.8: Size Dimension

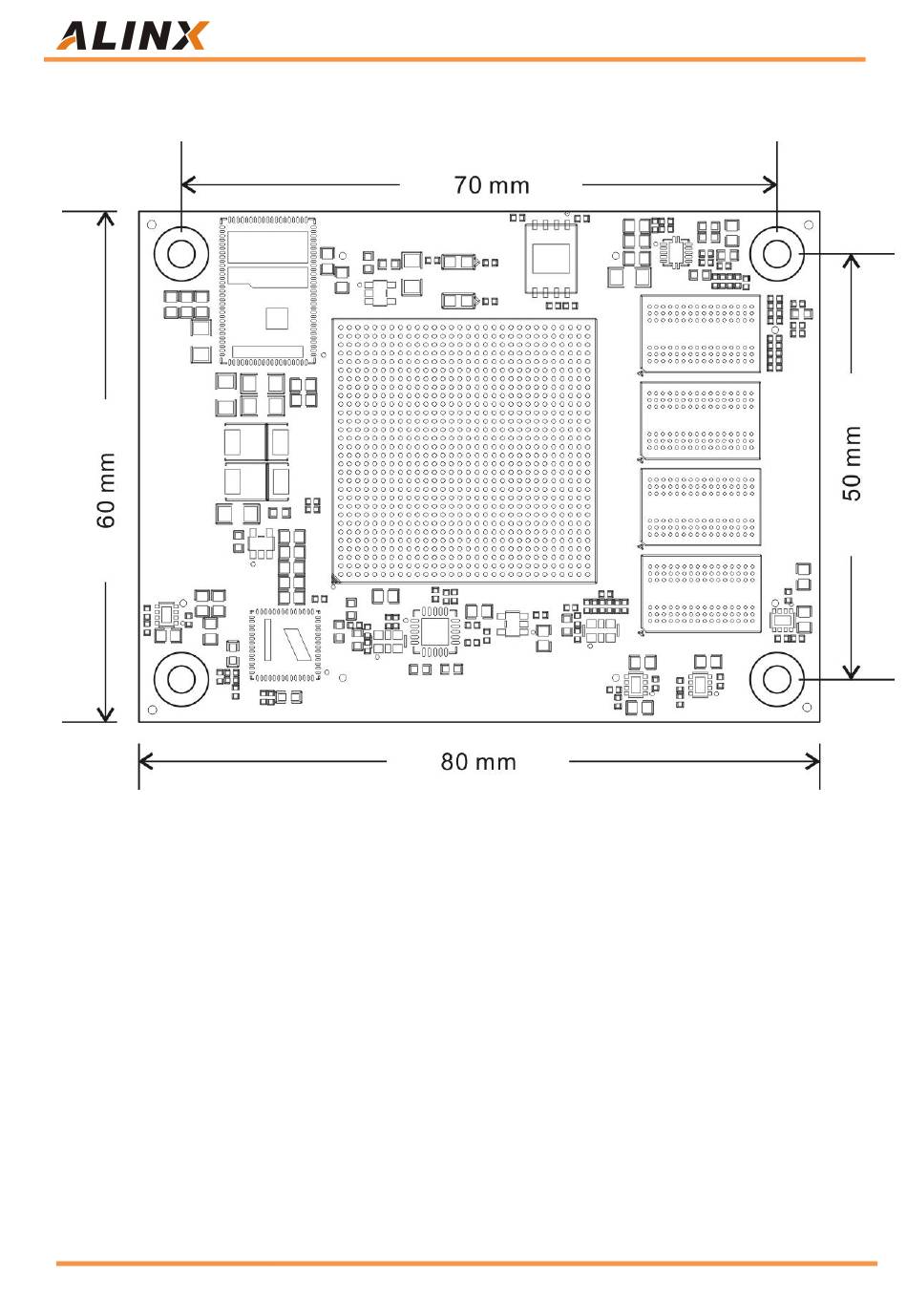

Figure 2-8-1: AC7K325 Core Board Size Dimension

The core board expands a total of 4 high-speed expansion ports, using 4

120-Pin inter-board connectors (J29~J32) to connect to the carrier board. The

connector

uses

Panasonic's AXK5A2137YG,

and

the

corresponding

connector model is AXK6A2337YG in the carrier board. J29 is connected to

GTX transceiver signal, J30 is connected to JTAG and BANK17, IO of BANK18,

J31 is connected to BANK15, IO of BANK15, and J32 is connected to IO and

5V power supply of BANK12 and BANK13.

Amazon Store: https://www.amazon.com/alinx

22 / 45
