Fourier TriLog User Manual page 83

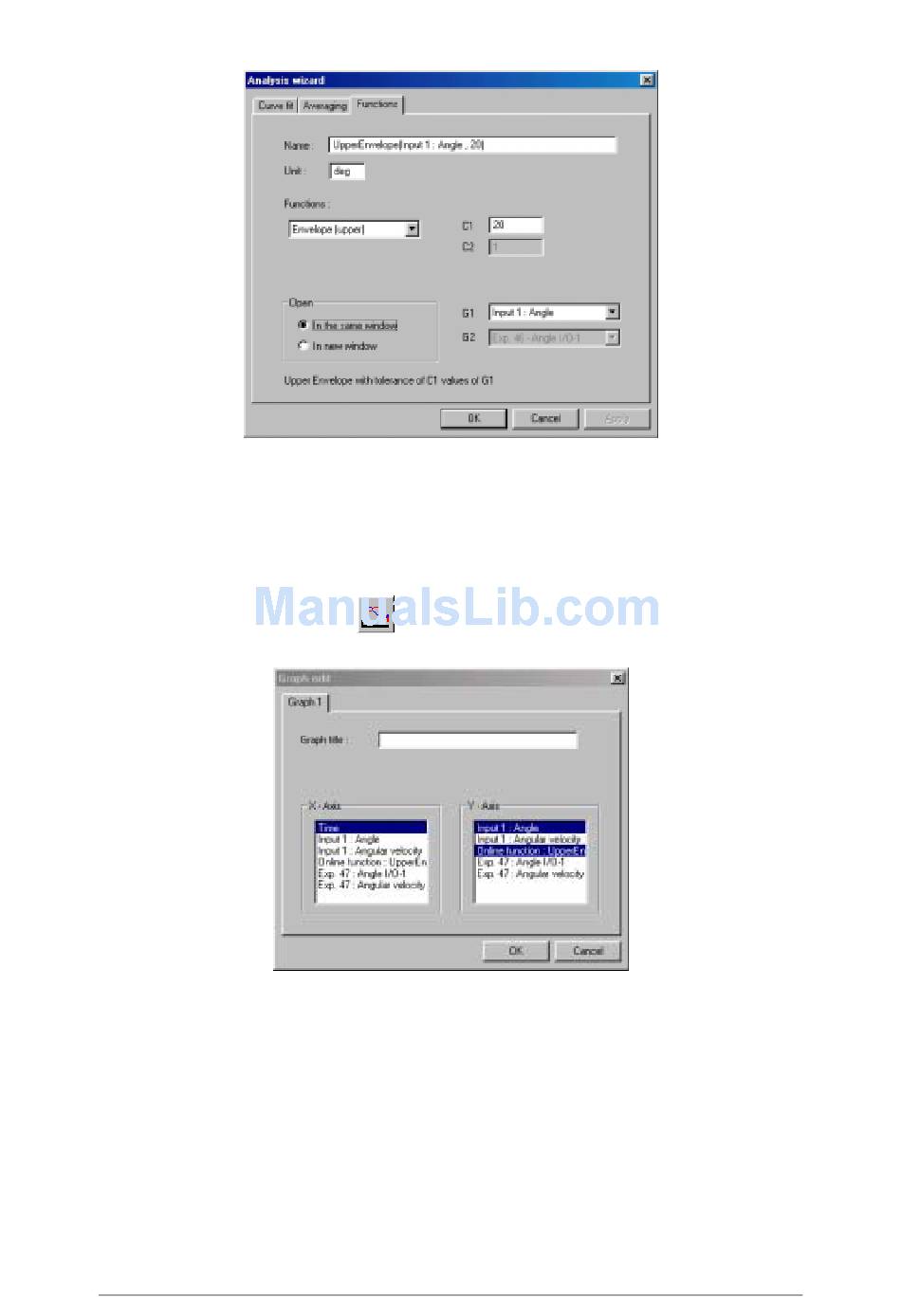

Figure 26: Analysis wizard – online functions
2. Select Envelope (upper) from the Functions list
3. Select Input 1: Angle from the G1 drop list
4. Click OK
5. Click Edit graph
dialog box:
Figure 27: Using graph edit dialog to display online functions
6. In the Y-Axis list click Input 1: Angle to select it and then click
Online function: Envelope (upper) to select it
7. If there are other highlighted data sets in the Y-Axis list, de-select
them by clicking on them
8. Click OK
on the graph toolbar to open the Graph edit
Chapter 3 Working with MultiLab 83
