Panning; Edit The Graph - Fourier TriLog User Manual

To restore auto scaling click Autoscale
7. The stretch/compress axis tool
Move the cursor onto one of the graph axes. The cursor icon changes to the double
↔
arrow symbol ( ), indicating that you can stretch or compress the axis scale. Drag
the cursor to the desired location. Repeat the procedure for the other axis if
necessary.
Double click on the axis to restore auto scaling.

4. Panning

Use the pan tool after zooming in to see any part of the graph that is outside the
zoomed area.
To do this, click Pan
drag the mouse to view another area.
Click Pan a second time to disable the Pan tool.

5. Edit the Graph

Use the Edit graph dialog box to select which data sets to display on the graph's
Y-axis and to change the X-axis from time, to one of the data sets.
1. Click Edit graph
dialog box:
2. To select a data set to display on the Y-axis, click on the data set's
name in the Y-axis list. To display more than one curve, click on the
data sets you want
3. A list entry that begins with an Experiment (Exp.) number denotes a
recorded data set. A list entry that begins with an input number
denotes the next recording and will be displayed on the graph the
next time you start a recording
4. To deselect a data set, click on it a second time
60 Chapter 3 Working with MultiLab
.
on the graph toolbar, then click anywhere on the graph and
on the graph toolbar to open the Edit graph

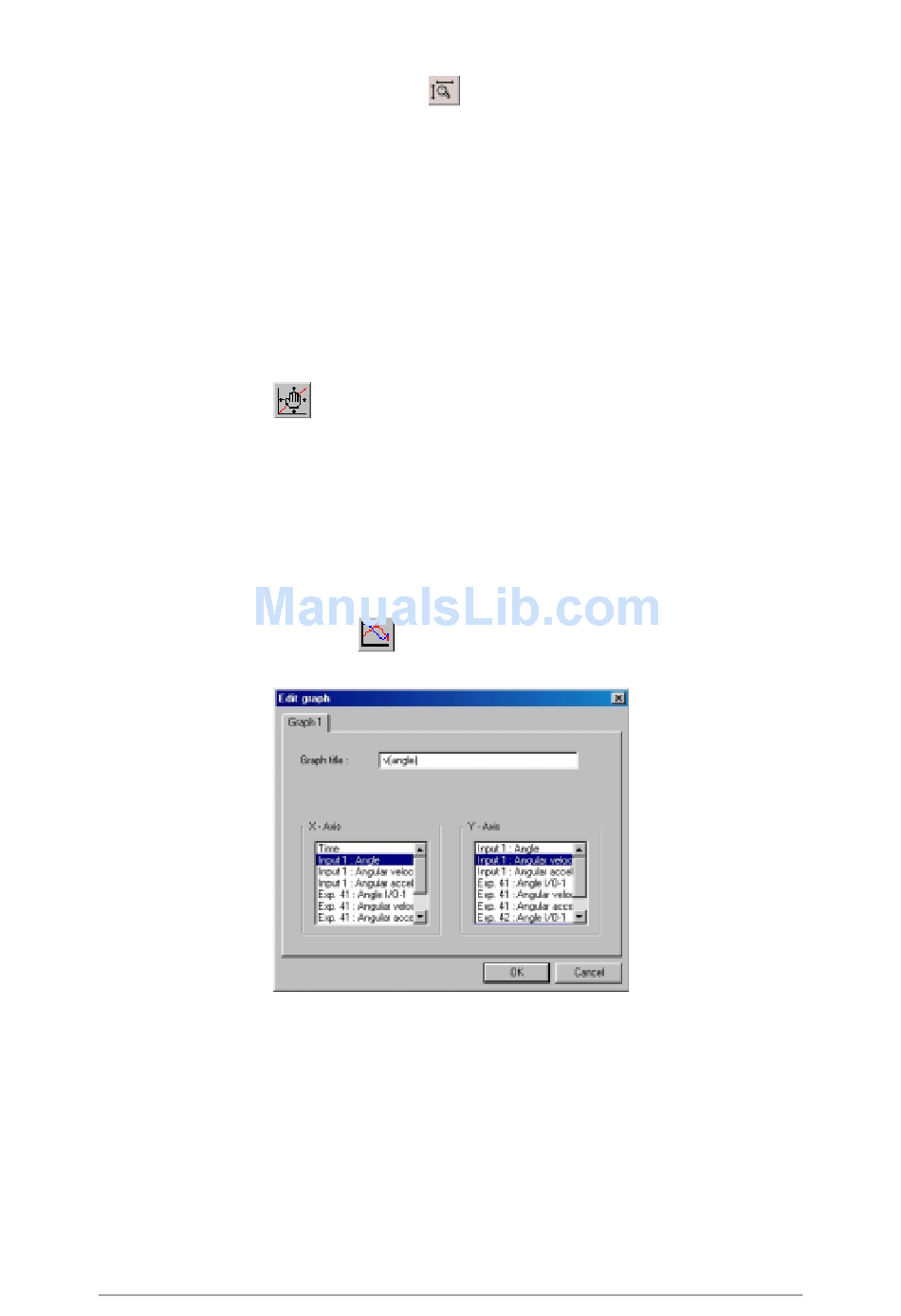

Figure 14: Edit graph dialog box
