Appendix B: Adding a code resistor to
a custom sensor
In order for TriLog to automatically identify a sensor, it must have a code resistor.
Figure 38 shows the TriLog sensor plug configuration.
You must connect the resistor between the ID resistor input and the GND input.
Sensor supply (+5V)
When you define a custom sensor in the MultiLab program you must choose one
sensor from the list provided. Note its position in the list and look in Table 1 to find
the resistance.
Position in Define
sensor dialog box
choose list
114 Appendix
ID resistor

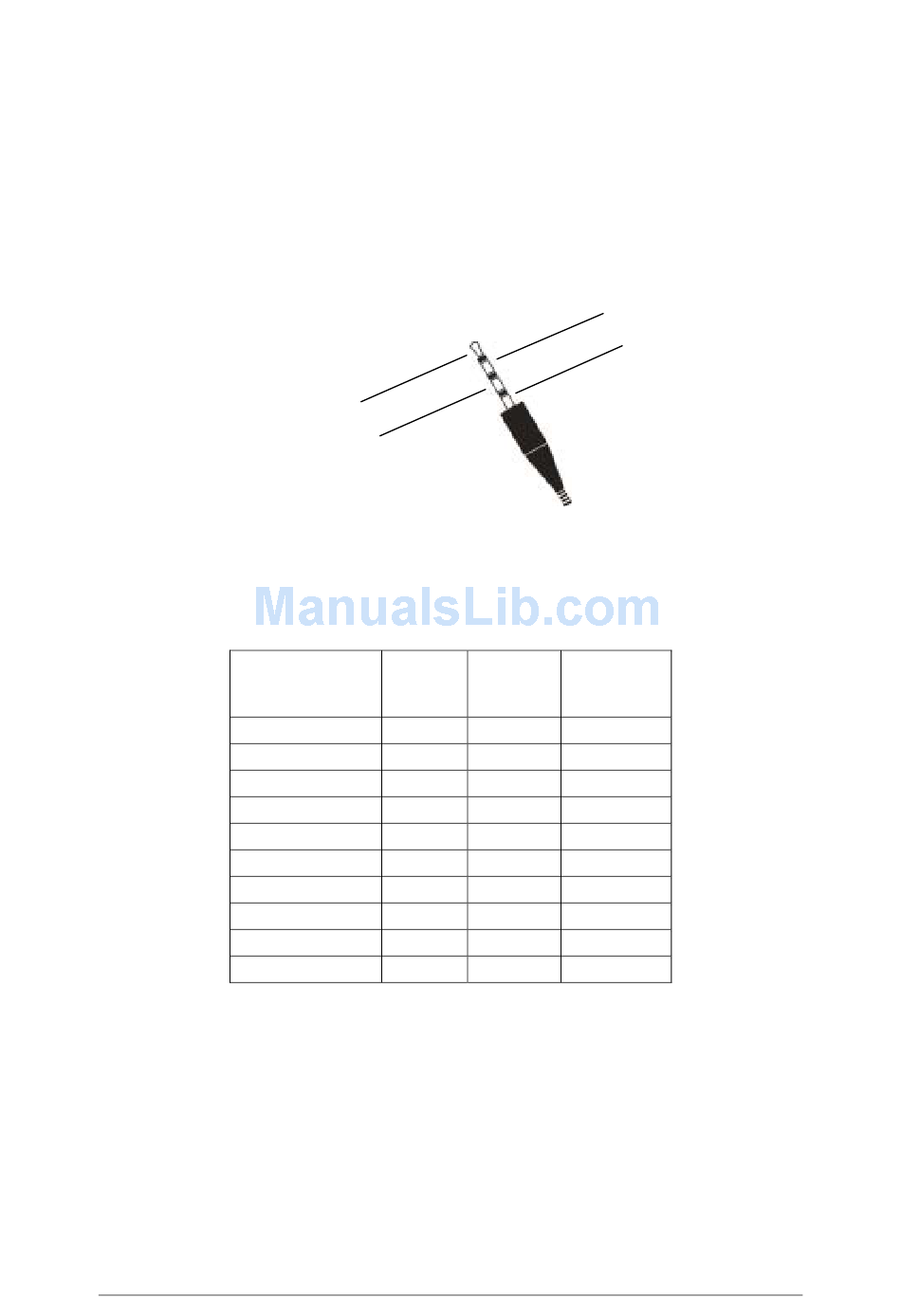

Figure 38: TriLog sensor plug configuration.
Table 1: Auto recognition resistors
Resistanc
e (kΩ)
1 372
2 410
3 455
4 508
5 573
6 653
7 754
8 888
9 1071
10 1337
Analog input
GND
Max Min
Resistance Resistance
(kΩ) (kΩ)
384.1 360.9
424.8 396.5
472.9 437.8
530.9 486.6
601.9 544.8
691.1 615.6
806.5 703.4
961.9 814.6
1183.0 959.2
1524.4 1151.2
