3.4.3.

The Table Display

Click Table to display or to remove the table window.
When you start a new recording, MultiLab displays the new data on the table.
To add or remove columns from the table, use the Edit table tool (see below).

1. Editing data values

You can change the value of any data point. When any value is changed, MultiLab
automatically creates a copy of the data set and leaves the original data unchanged.
To do this:
1. Select a data cell by clicking on it
2. Type in the new value
3. Press Enter on the keyboard to accept (you can also press Tab or
the arrow keys to accept and move to the next cell)

2. Editing the table

To add or remove data sets from the table:
1. Click Edit table
box:
To add columns to the table:
2. Select one or more of the data sets from the Available Columns list
3. Click Add
To remove columns from the table:
4. Select one or more of the data sets from the Current Columns list
5. Click Remove
6. Click OK
62 Chapter 3 Working with MultiLab
on the table toolbar to open the Edit table dialog

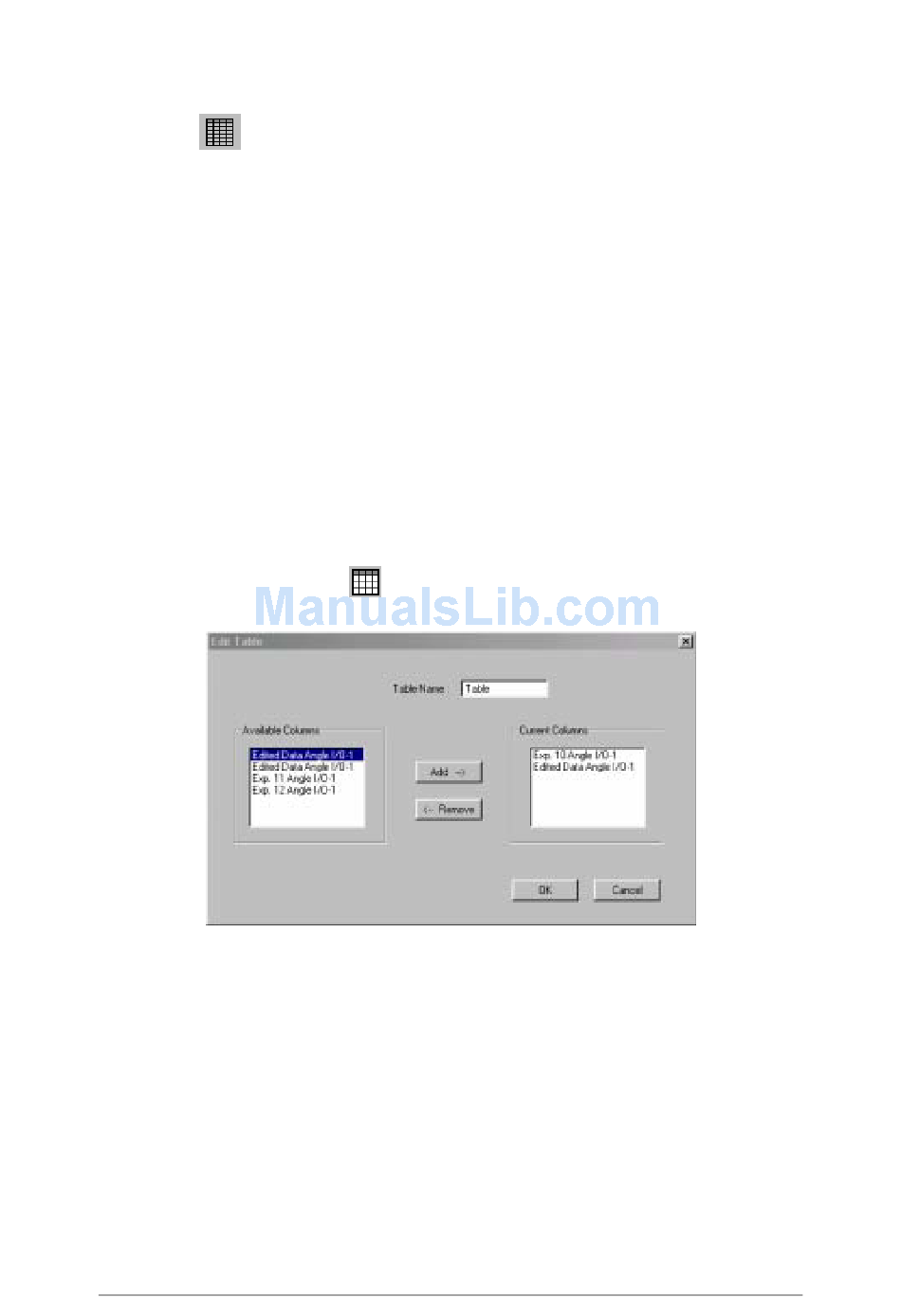

Figure 15: Edit table dialog box
