1. Tap Preview
2. Examine data as they change in the meter or as they are plotted in
the Preview graph
3. You can toggle between sensors by tapping on the Input Selector

5.Changing the Scale for the Y-Axis

By default, the ImagiProbe application sets the y-axis scale to correspond to the
maximum and minimum values of a sensor's range as specified in its calibration. You
can adjust the maximum and minimum values for the y-axis to better suit the range of
data expected in a trial. The ImagiProbe application determines the x-axis scale
based on your sampling rate.
1. Changing the Y-Axis Scale for One Sensor
To change the y-axis scale for one sensor, from the Preview Data or View Collected
Data forms:

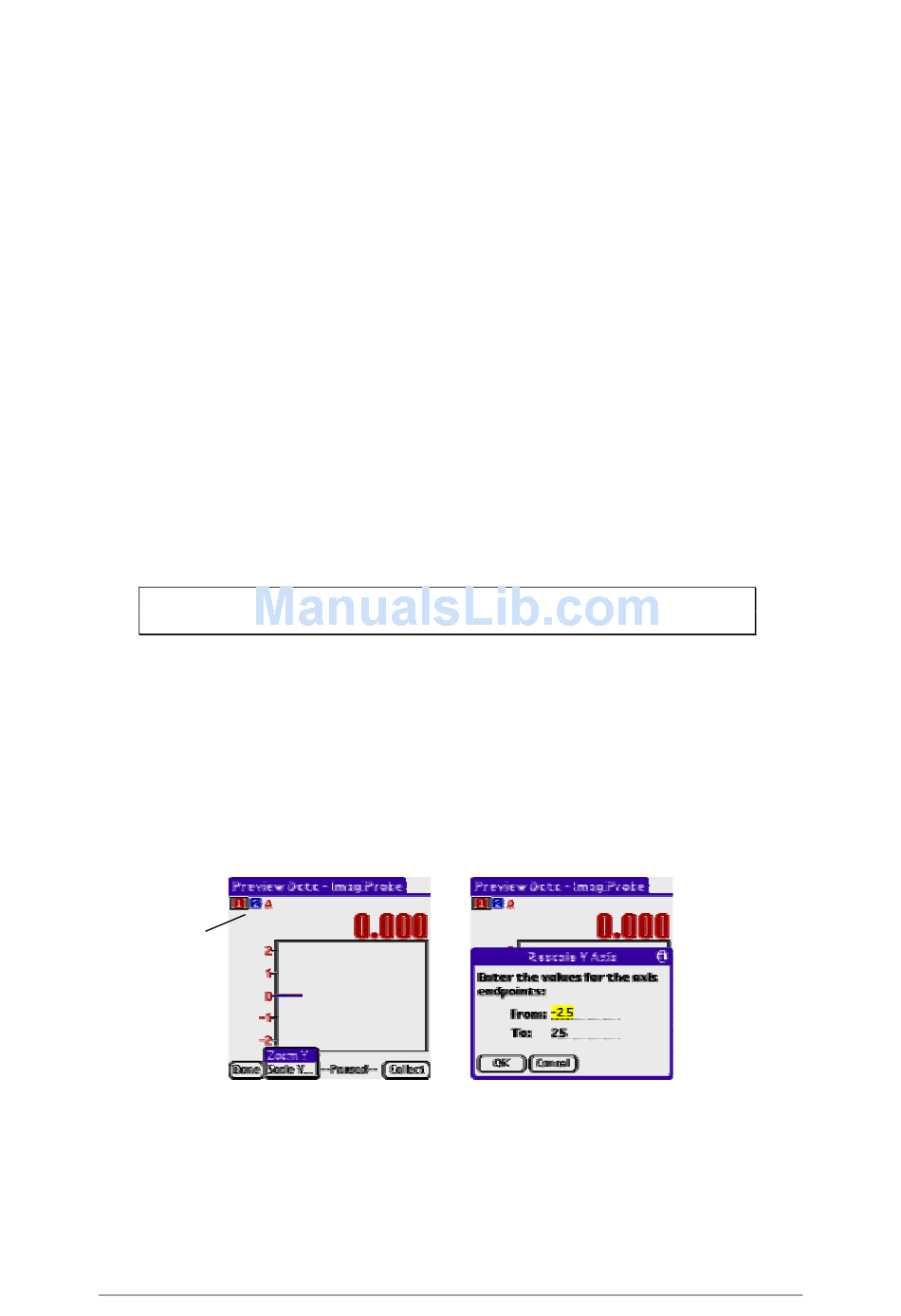

1. Tap the Scale Picker and tap Scale Y to open the Rescale Y-Axis
entry form
2. Enter new values for From and To.
3. Tap OK to accept the changes
Note: Setting too narrow a range between y-max and y-min may
produce inaccurate plots.
2. Changing the Y-Axis Scale for More Than One Sensor
To change the y-axis scale for more than one sensor, from the Preview Data or View
Collected Data forms:
1. Tap the Input Selector to select the scale for sensor for which you
wish to make a scale change
2. Tap the Scale Picker and tap Scale Y marker for the selected scale
and enter new values
3. Tap OK to accept the changes
Input selector

6.Collecting Data

From the Trial Setup, Edit Trial Setup or the Preview Data forms:
1. To start collecting data, tap Collect
2. To finish collecting data, tap Stop
