DNS

DNS
60
Controlling administrative access to a FortiGate interface connected to the Internet
allows remote administration of the FortiGate unit from any location on the Internet.
However, allowing remote administration from the Internet could compromise the
security of the FortiGate unit. You should avoid allowing administrative access for an
interface connected to the Internet unless this is required for your configuration. To
improve the security of a FortiGate unit that allows remote administration from the
Internet:
• Use secure administrative user passwords,
• Change these passwords regularly,
• Enable secure administrative access to this interface using only HTTPS or SSH,
• Do not change the system idle timeout from the default value of 5 minutes (see
set the system idle timeout" on page

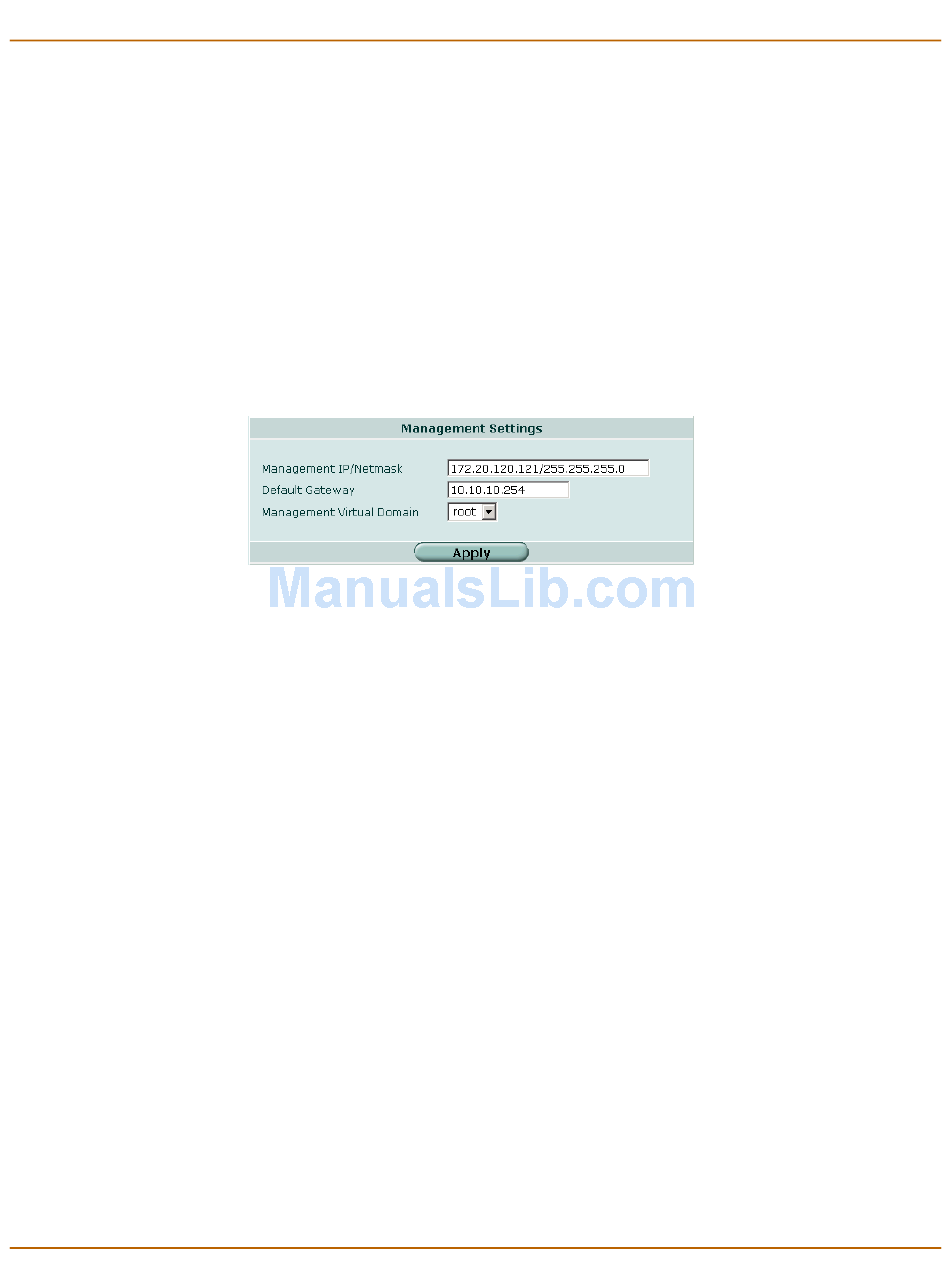

Figure 10: Management
Management Enter the management IP address and netmask.
address for the network that you want to manage the FortiGate unit
IP/Netmask
from.
Default Enter the default gateway address.
Gateway
Management Select the virtual domain from which you want to perform system
management.
Virtual Domain
To configure the management interface
1 Go to System > Network > Management.
2 Enter the Management IP/Netmask.
3 Enter the Default Gateway.
4 Select the Management Virtual Domain.
5 Select Apply.
The FortiGate unit displays the following message:
Management IP address was changed. Click here to redirect.
6 Click on the message to connect to the new Management IP.
Several FortiGate functions, including Alert E-mail and URL blocking, use DNS. You
can add the IP addresses of the DNS servers to which your FortiGate unit can
connect. DNS server IP addresses are usually supplied by your ISP.
01-28006-0009-20041105
83).
This must be a valid IP
System network
"To
Fortinet Inc.
