SNMP
100

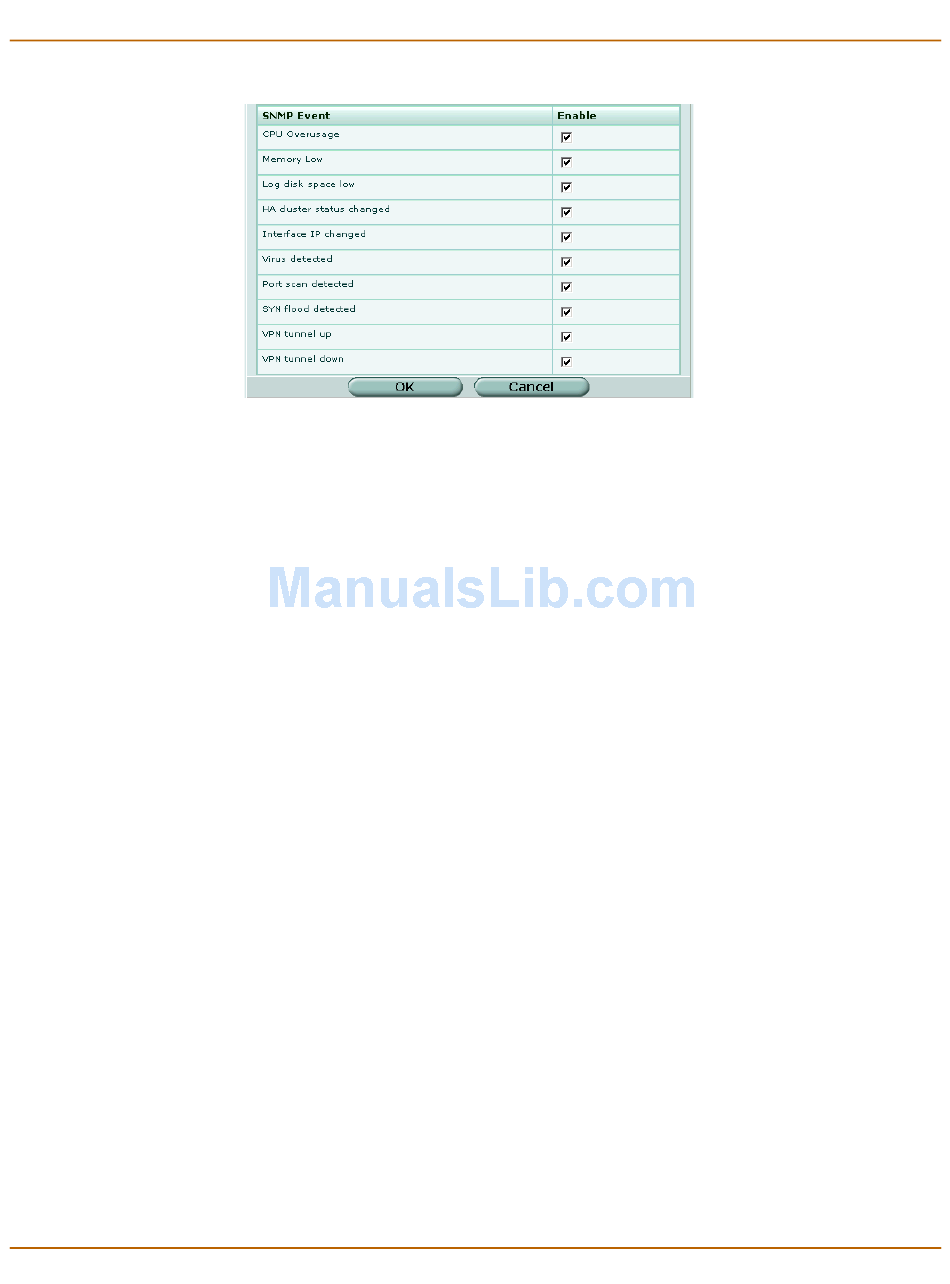

Figure 35: SNMP community options (part 2)
Community Name
Hosts
IP Address
Interface
Add
Queries
Traps
SNMP Event
To configure SNMP access to an interface in NAT/Route mode
Before a remote SNMP manager can connect to the FortiGate agent, you must
configure one or more FortiGate interfaces to accept SNMP connections. See
control administrative access to an interface" on page
1
Go to System > Network > Interface.
2
Choose an interface that an SNMP manager connects to and select Edit.
3
For Administrative Access, select SNMP.
4
Select OK.
Enter a name to identify the SNMP community.
Identify the SNMP managers that can use the settings in this SNMP
community to monitor the FortiGate unit.
The IP address of an SNMP manager than can use the settings in this
SNMP community to monitor the FortiGate unit. You can also set the IP
address to 0.0.0.0 to so that any SNMP manager can use this SNMP
community.
Optionally select the name of the interface that this SNMP manager uses
to connect to the FortiGate unit. You only have to select the interface if
the SNMP manager is not on the same subnet as the FortiGate unit. This
can occur if the SNMP manager is on the Internet or behind a router.
Select Add to add more SNMP managers. You can add up to 8 SNMP
managers to a single community. Select the Delete icon to remove an
SNMP manager.
Enter the Port number (161 by default) that the SNMP managers in this
community use for SNMP v1 and SNMP v2c queries to receive
configuration information from the FortiGate unit. Select the Enable
check box to activate queries for each SNMP version.
Enter the Local and Remote port numbers (162 by default) that the
FortiGate unit uses to send SNMP v1 and SNMP v2c traps to the SNMP
managers in this community. Select the Enable check box to activate
traps for each SNMP version.
Enable each SNMP event for which the FortiGate unit should send traps
to the SNMP managers in this community.
01-28006-0009-20041105
System config
56.
Fortinet Inc.
"To
