Router objects

New Route-map

160
The FortiGate unit attempts to match the rules in a route map starting at the top of the
list. If it finds a match it makes the changes defined in the set statements and then
takes the action specified for the rule. If no match is found in the route map the default
action is deny. If no match statements are defined in a rule, the default action is to
match everything. If multiple match statements are defined in a rule, all the match
statements must match before the set statements can be used.
For a route map to take effect it must be called by another FortiGate routing feature
such as RIP.

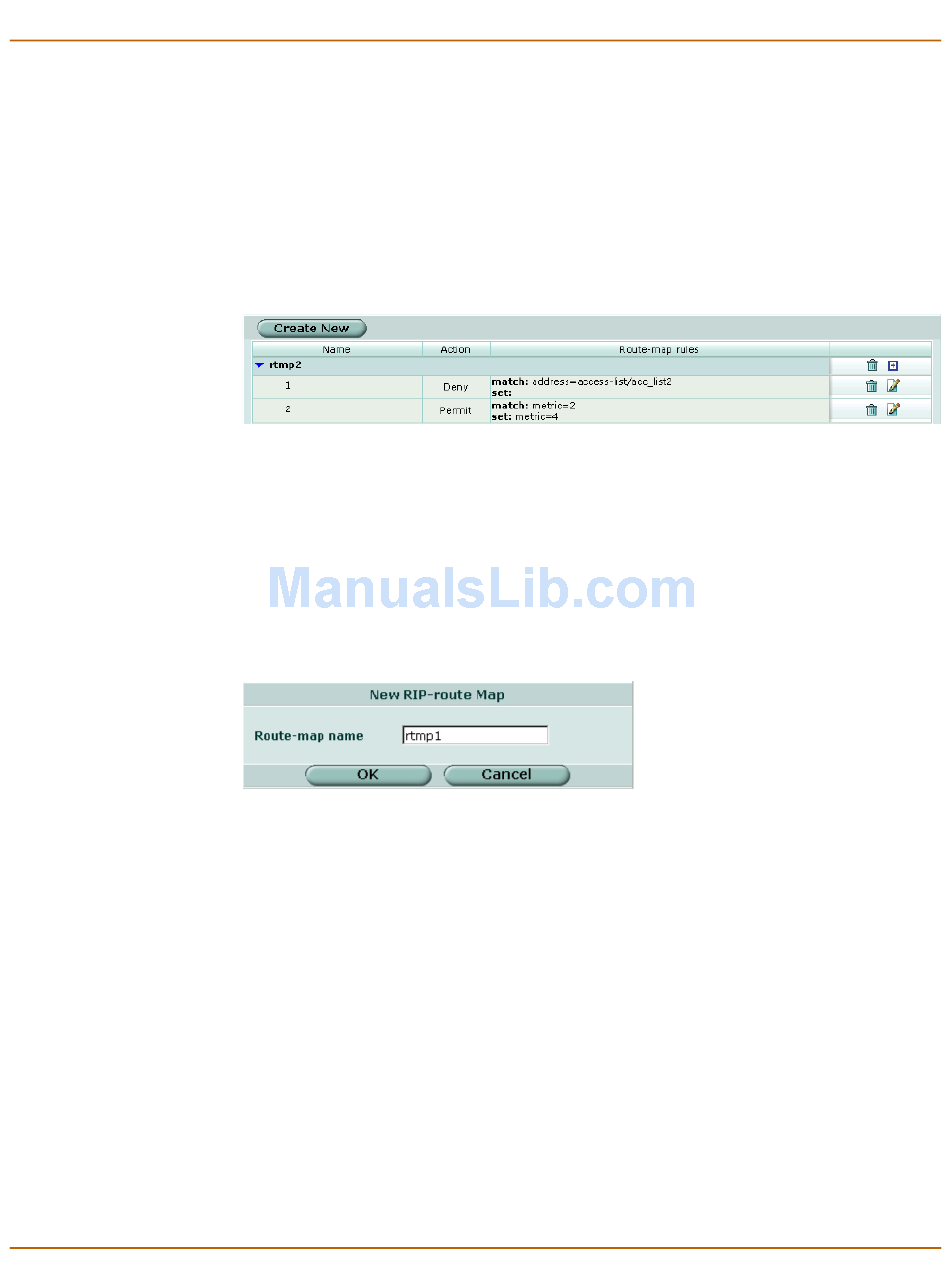

Figure 72: Route map list
Create New
Name
Action
Route-map rules
Figure 73: Route map name configuration
To add a route map name
1 Go to Router > Router Objects > Route-map.
2 Select Create New.
3 Enter a name for the route map.
4 Select OK.
Add a new route map name.
The route map name.
The action to take for this entry in the route map.
The rules for a route map entry.
The Delete, Add route-map entry, and Edit icons.
