Router

Offset list

Offset list options

FortiGate-1000 Administration Guide
Use offset lists to add the specified offset to the metric of a route.
Note: By default, all offset lists for the root virtual domain are displayed. If you create additional
virtual domains, the offset lists belonging to the current virtual domain only are displayed. To
view the settings associated with a different virtual domain, go to System > Virtual Domain >
Virtual Domains and select the virtual domain.

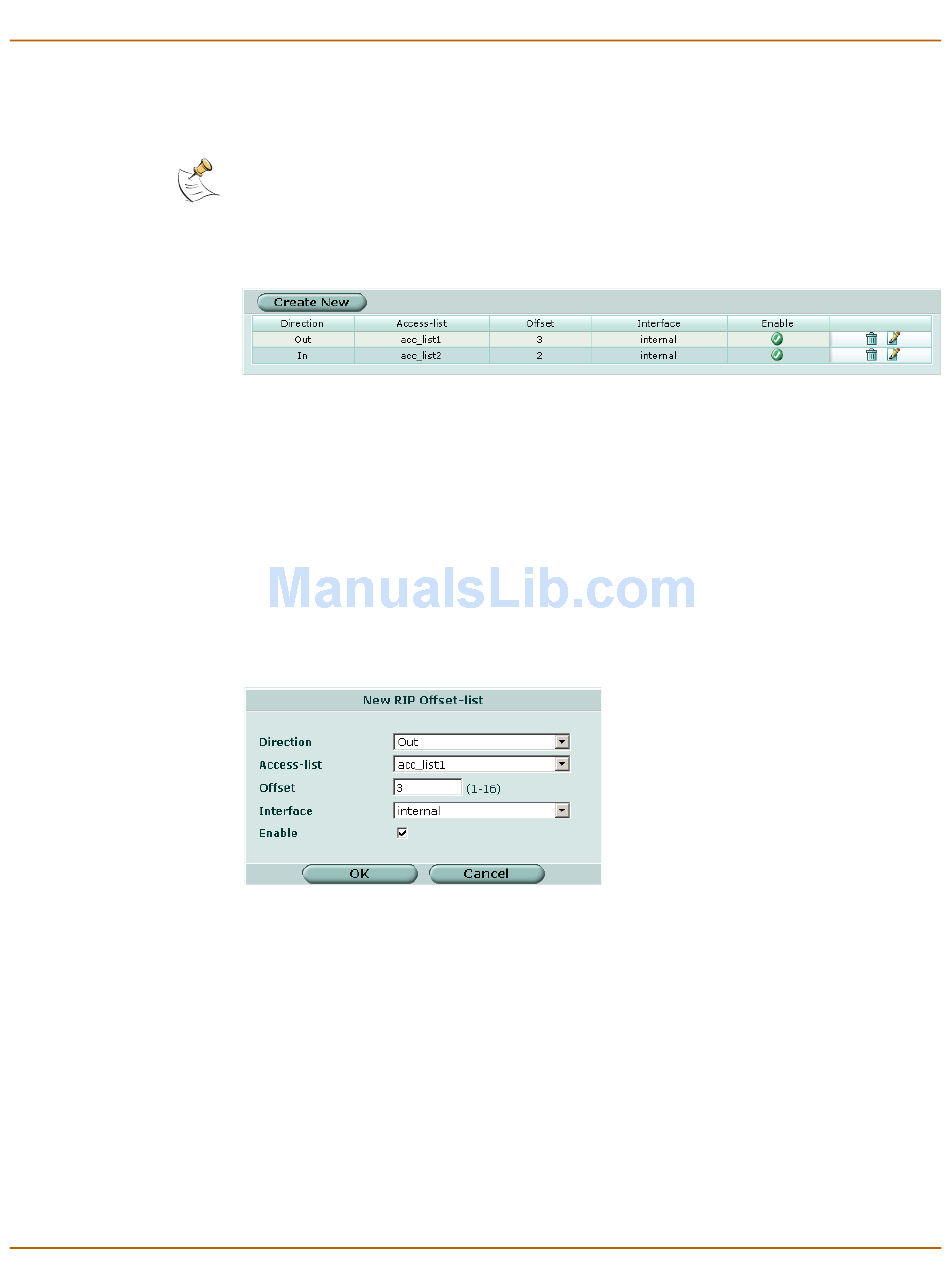

Figure 64: RIP Offset list
Create New
Direction
Access-list
Offset
Interface
Enable
Figure 65: RIP Offset list configuration
Direction
Access-list
Offset
Interface
Enable
To configure an offset list
1 Go to Router > RIP > Offset List.
2 Select Create New to add a new offset list or select the edit icon beside an existing
offset list to edit that offset list.
Add a new offset list.
The direction for the offset list.
The access list to use for this offset list.
The offset number to add to the metric for this offset list.
The interface to match for this offset list.
The status of this offset list.
The Delete and Edit icons.
Select In to apply the offset to the metrics of incoming routes. Select out
to apply the offset to the metrics of outgoing routes.
Select the access list to use for this offset list. The access list is used to
determine which routes to add the metric to.
Enter the offset number to add to the metric. Enter a number from 1 to 16.
Select the interface to match for this offset list.
Select Enable to enable this offset list.
01-28006-0009-20041105
RIP
155
