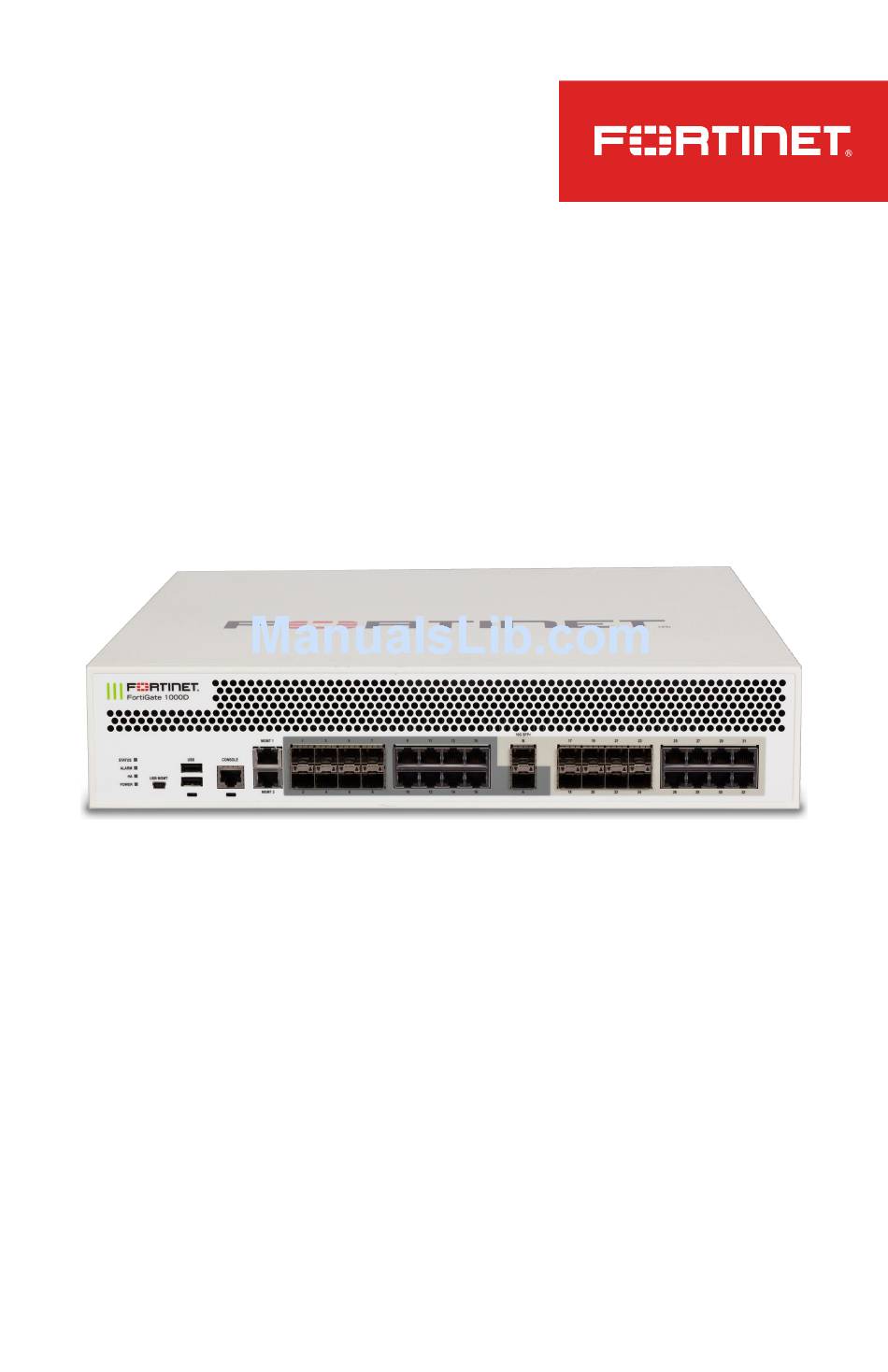

- Page 1 FortiGate 1000D QuickStart Guide...
- Page 2 Copyright© 2014 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
-
Page 3: Before You Begin
Box Includes Before You Begin Write down details that you may need from your network administrator or ISP. DSL PPPoE FortiGate 1000D FortiGate 1000D Username Password 10G SFP+ MGMT 1 STATUS CONSOLE ALARM QuickStart Guide USB MGMT POWER MGMT 2... - Page 4 Basic Connections FortiGate Setup Options OS X Web Browser Internet With FortiExplorer (p.6) Setup Wizard (p.5) Ethernet Port Terminal Emulation FortiExplorer App With console cable (p.7) Configuration (pp.8-9) Power Connections Connect your device to separate power outlets and an Internet connection. This is Web Browser with Ethernet cable usually a modem, but could also be another device on your network.
- Page 5 Windows/OS X with USB Terminal Emulation with Console Cable To Connect to the CLI 1. Connect the FortiGate unit console port to the management computer using the provided console cable. 2. Start a terminal emulation program on the management computer. Select the port and use the following settings: Baud Rate:...
- Page 6 iOS with Apple to USB cable USB Port http://forti.net/fexp-ios FortiExplorer App 1. Download the iOS FortiExplorer App to your device from http://forti.net/fexp-ios. 2. Use your Apple to USB cable to connect to the port. 3. Launch the FortiExplorer App and select the device model. 4.
- Page 7 2. Attach the provided rack-mount brackets to the sides of your Fortinet the unit using the provided screws. 1. Ensure that the surface onto which the FortiGate unit to be installed is clean, level, equipment. a. If you are installing the unit into a...
- Page 8 SFP Transceivers 5. Press the transceiver firmly into the cage socket with your thumb. Do not Caution: 6. Verify that the transceiver is latched correctly by grasping force the SFP the sides of the transceiver and trying to pull it out without transceivers into Transmit Optical Bore SFP Cage Sockets...
- Page 9 Device Guide FortiGate 1000D 10G SFP+ MGMT 1 STATUS CONSOLE ALARM USB MGMT POWER MGMT 2 SFP Ports 1 - 8 and 17 - 24 (SFP) 1Gbps small form-factor pluggable Ethernet Ports 9 - 16 and 25 - 32 (RJ-45)
- Page 10 Device Guide Logo Green: The unit is on Off: The unit is off FortiGate 1000D 10G SFP+ MGMT 1 STATUS CONSOLE ALARM USB MGMT POWER MGMT 2 Status Green: Normal Flashing Green: Booting up Red: The unit has a major alarm...
- Page 11 Safety Mechanical loading – To avoid personal injury or damage to the appliance, Fortinet recommends that 2 or more people together install the appliance into the rack. Balance the equipment to avoid uneven mechanical loading and tipping. Do not place heavy objects on the appliance.
- Page 12 AMENDED OR UPDATED VERSION. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, DO NOT START THE INSTALLATION PROCESS OR USE THE PRODUCTS. IF YOU DO Any disputes arising out of this Agreement or Fortinet’s limited warranty shall be governed by the laws of the state of California, without regard to the conflict of laws principles. In the NOT AGREE TO THE PROVISIONS OF THIS AGREEMENT, YOU SHOULD IMMEDIATELY, AND IN NO EVENT LATER THAN FIVE (5) CALENDAR DAYS AFTER YOUR RECEIPT OF THE PRODUCT event of any disputes arising out of this Agreement or Fortinet’s limited warranty, the parties submit to the jurisdiction of the federal and state courts located in Santa Clara County,...
- Page 13 copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients a) The modified work must itself be a software library. of the Program a copy of this License along with the Program.
- Page 14 CLI Reference Configuration of your device using the command line. http://forti.net/cli FortiOS Handbook Definitive guide to configuring and operating FortiOS. http://forti.net/handbook Training Services Course descriptions, availability, schedules, and location of training programs in your area. http://forti.net/training Fortinet.com...
