Policy; Policy Route List - Fortinet FortiGate FortiGate-1000 Administration Manual

Router

Policy

Policy route list

FortiGate-1000 Administration Guide

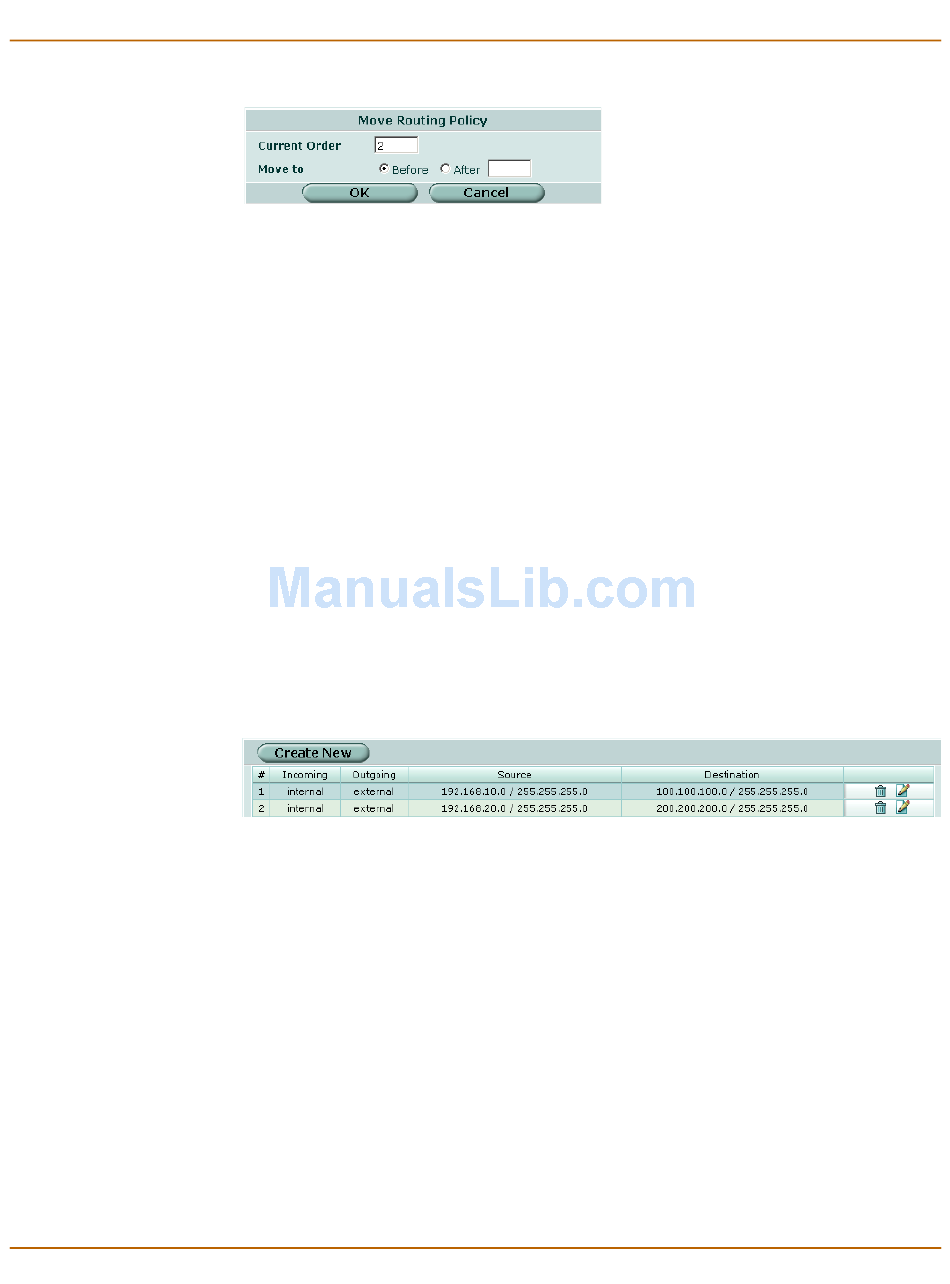

Figure 54: Move a static route
3 For Move to, select either Before or After and type the number that you want to place
this route before or after.
4 Select OK.
The route is displayed in the new location on the static route list.
Using policy routing you can configure the FortiGate unit to route packets based on:
• Source address
• Protocol, service type, or port range
• Incoming or source interface
The FortiGate unit starts at the top of the policy routing list and attempts to match the
packet with a policy. The policy route supplies the next hop gateway as well as the
FortiGate interface to be used by the traffic. If no policy route matches the packet, the
FortiGate unit routes the packet using the regular routing table.
Figure 55: Policy routes
Create New Add a new policy route.
# The sequence number for this policy route.
Incoming The policy route attempts to match packets received on this interface.
Outgoing The policy route sends packets out this interface.
Source The policy route matches packets that have this source IP address and netmask.
Destination The policy route matches packets that have this destination IP address and
netmask.
The Delete, and Edit icons.
01-28006-0009-20041105
Policy
147
