Log access
364
3
Select Disk from the Type list.
The log files are displayed.
4
Select the View icon for the log file you want to open.
The log messages are displayed.
You can change the displayed columns or see the raw log messages, go to the
previous or next log page, or search the log by selecting the corresponding icon.
Choosing columns
You can customize your log messages display using the Column Settings window.
The column settings apply only when the formatted (not raw) display is selected.

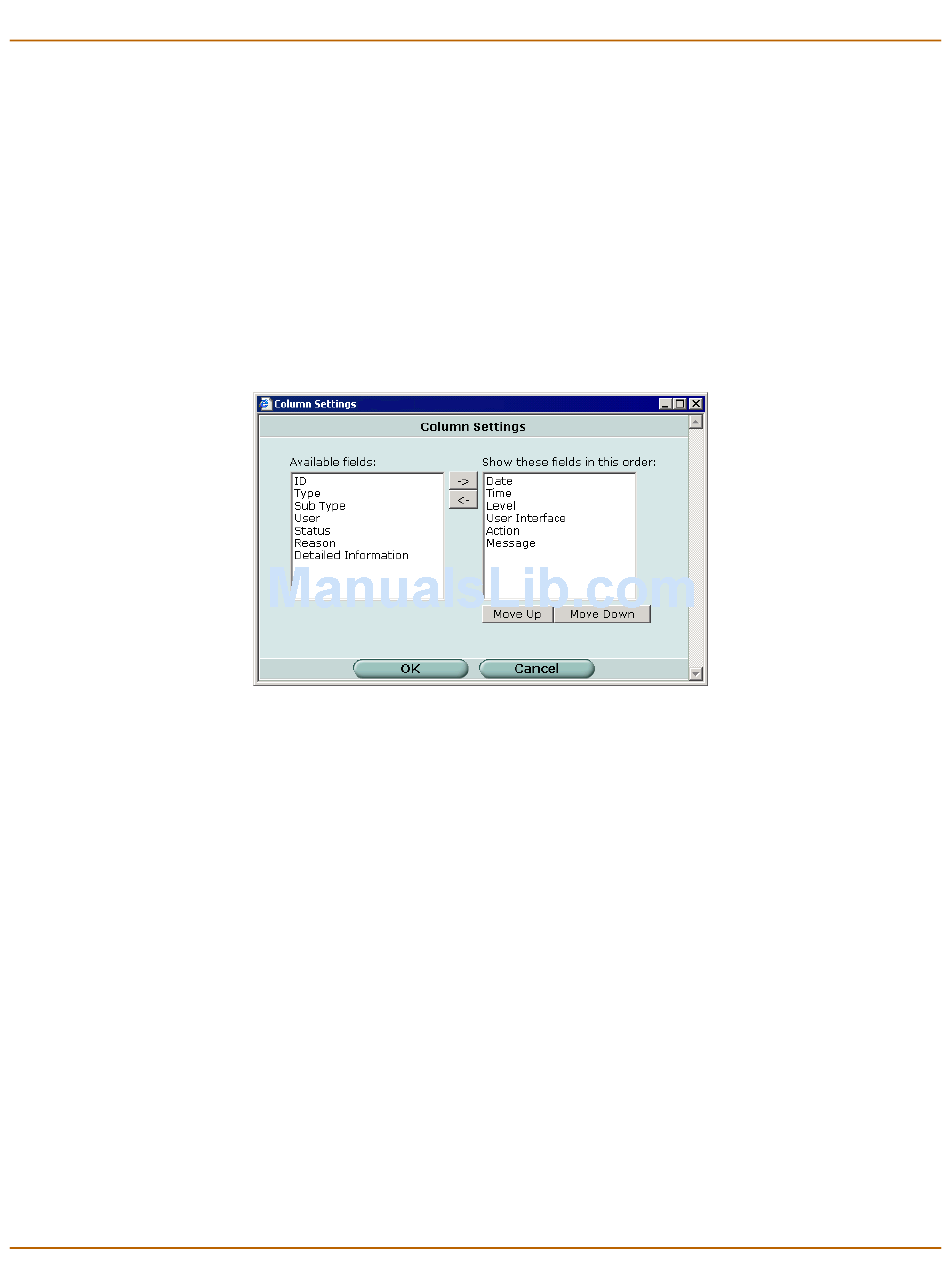

Figure 186:Column settings for viewing log messages
Available fields The fields that you can add to the log message display.
->
Right arrow button. Select to move selected fields from Available fields list to
Show these fields list.
<-
Left arrow button. Select to move selected fields from the Show these fields
list to the Available fields list.
Show these
The fields that are displayed as columns in the log messages list. The fields
are listed in order with the first column at the top of the list.
fields in this
order
Move up
Move selected field up one position in the Show these fields list.
Move down
Move selected field down one position in the Show these fields list.
The Detailed Information column provides the entire raw log entry and is not needed
unless the log contains information not available in any of the other, more specific
columns.
To change the columns in the log message display
1
While viewing log messages, select the Column Settings icon.
The Column Settings window opens.
2
To add fields, select them in the Available fields list and select the right arrow button.
01-28006-0009-20041105
