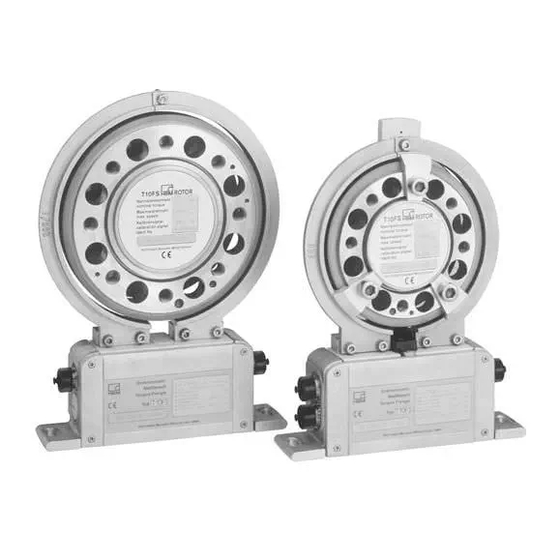

HBM T10FS Mounting Instructions

Torque flange
Hide thumbs Also See for T10FS:
Table of Contents

Advertisement

Quick Links

Download this manual
Mounting instructions
Torque Flange
T10FS
A0785 14.0 en

Advertisement

Table of Contents
loading

Related Manuals for HBM T10FS

Summary of Contents for HBM T10FS

  • Page 1 Mounting instructions Torque Flange T10FS A0785 14.0 en...

  • Page 3: Table Of Contents

    T10FS Contents Page Safety instructions ..........
  • Page 4 T10FS Electrical connection .........
  • Page 5 T10FS 10 Dimensions ..........

  • Page 6: Safety Instructions

    Safety instructions Use in accordance with the regulations T10FS torque flanges are used exclusively for torque and rotation speed measurement tasks and control and adjustment tasks directly connected thereto. Use for any additional purpose shall be deemed to be not in accordance with the regulations.
  • Page 7 Means that important information about the product or its handling is being given. Symbol: Meaning: CE mark The CE mark enables the manufacturer to guarantee that the product complies with the requirements of the relevant EC directives (the declaration of conformity is available at http://www.hbm.com/HBMdoc). A0785 14.0 en...
  • Page 8 T10FS Symbol: Meaning: Statutory marking requirements for waste disposal National and local regulations regarding the protection of the environment and recycling of raw materials require old equipment to be separated from regular domestic waste for disposal. For more detailed information on disposal, please contact the local authorities or the dealer from whom you purchased the product.
  • Page 9 T10FS Prevention of accidents According to the prevailing accident prevention regulations, once the T10F torque transducers have been mounted, a cover or casing has to be fitted as follows: • The cover or casing must not be free to rotate.

  • Page 10: Torque Flange Versions

    T10FS Torque flange versions In the case of option 2 "electrical configuration", the T10FS torque flange exists in versions KF1, SF1 and SU2. The difference between these versions lies in the electrical inputs and outputs on the stator, the rotors are the same for all the versions of a measuring range.

  • Page 11: Application

    T10FS Application T10FS torque flanges record static and dynamic torque on fixed or rotating shafts and also return RS 422 signals with direction of rotation information to determine the speed. With an optical measuring system, a reference pulse can also be output with the speed pulses. Test beds can be extremely compact because of the short construction of the measurement flanges.

  • Page 12: Structure And Mode Of Operation

    T10FS Structure and mode of operation Torque flanges consist of two separate parts: the rotor and the stator. The rotor comprises the measuring body and the signal transmission elements. Strain gages (S.G.) are mounted on the measuring body. The rotor electronics for transmitting the bridge excitation voltage and the measurement signal are located centrally in the flange.

  • Page 13: Mechanical Installation

    (medium strength) to exclude prestressing loss due to screw slackening. An appropriate shaft flange enables the T10FS torque flanges to be mounted directly. It is also possible to mount a joint shaft or relevant compensating element directly on the rotor (using an intermediate flange when required).

  • Page 14: Conditions On Site

    The measurement flange can be mounted in any position. With clockwise torque, the output frequency is 10 kHz to 15 kHz. With HBM amplifiers or with the "voltage output" option, a positive output signal (0 V to +10 V) is present.

  • Page 15: Installation Possibilities

    T10FS 4.3 Installation possibilities In principle, there are two possibilities for torque flange mounting: with the antenna ring complete or dismantled. We recommend proceeding as described in subsection 4.3.1 . If installation in accordance with 4.3.1 is not possible, (e.g. in the case of subsequent stator replacement or mounting with a speed measuring system), you will have to dismantle the antenna ring.

  • Page 16: Installation With Subsequent Stator Mounting

    T10FS 4.3.2 Installation with subsequent stator mounting (without speed measuring system) Customer mounting 1. Install rotor 2. Install shaft run 4. Install antenna segment around shaft run 3. Remove one antenna segment Support supplied by customer Clamp fixture 5. Align stator and finish installation 6.

  • Page 17: Installation Example With Couplings

    T10FS 4.3.3 Installation example with couplings Fig. 4.1: Installation example with coupling 4.3.4 Installation example with joint shaft Fig. 4.2: Installation example with joint shaft A0785 14.0 en...

  • Page 18: Mounting The Rotor

    T10FS 4.4 Mounting the rotor Additional installation notes for the speed measuring system can be found in Section 4.7, Page 23. NOTE In general, the rotor identification plate is no longer visible after mounting. This is why we include with the rotor additional stickers with the important ratings, which you can attach to the stator or any other relevant test bench components.
  • Page 19 T10FS 2. Use eight DIN EN ISO 4762 hexagon socket screws of property class 10.9 (measuring range w3 kNVm: 12.9), of the appropriate length (depending on the connection geometry) to screw fasten the rotor. We recommend fillister head screws DIN EN ISO 4762 or similar, blackened, smooth headed, permitted size and shape variance in accordance with DIN ISO 4759, Part 1, product class A.

  • Page 20: Installing The Stator

    T10FS 4.5 Installing the stator On delivery, the stator has already been installed and is ready for operation. The antenna segments can be separated from the stator, for example, for maintenance or to facilitate stator mounting. To stop you modifying the center alignment of the segment rings opposite the base of the stator, we recommend that you separate only one antenna segment from the stator.

  • Page 21: Mounting Of The Clamp Fixture

    T10FS 4. Install the two antenna segments’ upper connecting screw so that the antenna ring is closed. Also pay attention to the fan type lock washers. 5. Now fasten all antenna segment screw fastenings with a tightening torque of 5 N⋅m.
  • Page 22 T10FS Assembly sequence 1. Loosen and remove the upper antenna segment screw fitting. 2. Fasten the clamp fixture with the enclosed screw fitting as shown in Fig. 4.6. It is essential to use the new fan type locking washers. 3. Clamp a suitable support element (we recommend a threaded rod ∅...

  • Page 23: Installing The Slotted Disc (Speed Measuring System)

    T10FS 4.7 Installing the slotted disc (speed measuring system) To prevent the slotted disc of the optical speed measuring system being damaged in transit, it is not mounted on the rotor in the case of measurement flanges with option 2, code L (nominal (rated) speed 8000 min 15000 min ).

  • Page 24: Fitting The Mounting Elements (Speed Measuring System)

    T10FS 4.8 Fitting the mounting elements (speed measuring system) Three mounting elements with screws are included with the torque flange to prevent the speed sensor being damaged during installation. The mounting elements hold the rotor centrally in the antenna ring, making installation easier and safer.

  • Page 25: Fixing The Mounting Elements

    T10FS 4.8.1 Fixing the mounting elements 1. Place the rotor with the identification plate upward on a flat base. For the optical speed measuring system only: Hold the stator at a slight slant and push it over the rotor until the slotted disc is located in the optical sensor (Step A, Fig.
  • Page 26 T10FS NOTE It is essential to keep the mounting elements and fastening screws in case any modifications are needed! 6. Tighten the stator retaining screws. The stator must rest at the markers or stops. The rotor must turn freely. 7. Check whether the axial and radial tolerances have been maintained.

  • Page 27: Aligning The Stator (Speed Measuring System)

    T10FS 4.9 Aligning the stator (speed measuring system) The stator can be mounted in any position (for example, "upside down" installation is possible). For measuring mode to operate perfectly, the speed sensor (pole ring/slotted disc) of the speed measuring system must be positioned at a defined point on the sensor.
  • Page 28 T10FS Axial alignment There are markers on the sensor head for axial alignment (orientation lines). When installed, the axial inner surface of the pole ring should be exactly over the axial orientation line. Divergence of up to "1.5 mm is permissible in measuring mode (total of static and dynamic shift), in this case however, the pulse tolerance will be greater.
  • Page 29 T10FS Radial alignment The rotor axis and the optical axis of the speed sensor must be along a line at right angles to the stator platform. For radial alignment, the radial distance has to be maintained (see Fig. 4.10). A vertical orientation line on the sensor head facilitates tangential alignment (see Fig.
  • Page 30 T10FS Check radial nominal distance a with a distance gage and compensate for any possible misalignment of the stator by putting adjusting washers underneath or by adjusting the base of the stator. You can also use the central fastening screw on the sensor head for fine adjustments (setting range "1.5 mm).

  • Page 31: Optical Speed Measuring System

    T10FS 4.9.2 Optical speed measuring system Axial alignment There are markers in the optical sensor for axial alignment (orientation lines). When installed, the slotted disc should be exactly above these orientation lines. Divergence of up to "2 mm is permissible in measuring mode (total of static and dynamic shift).
  • Page 32 T10FS Radial alignment The rotor axis and the optical axis of the speed sensor must be along a line at right angles to the stator platform. A vertical marker line on the head of the sensor serves as an orientation guide.

  • Page 33: Electrical Connection

    T10FS Electrical connection 5.1 General instructions We recommend to use shielded, low−capacitance cable from HBM for the electrical connection between torque transducer and measuring amplifier. With cable extensions it is important to ensure that a good connection is provided, with minimum contact resistance and good insulation. All plug connections or cap nuts have to be tightened firmly.

  • Page 34: Option 2, Code Kf1

    T10FS 5.3 Option 2, code KF1 The stator housing has a 7 pin (Binder 723) male device connector, to which you link the connection cable for voltage supply and torque signal. Connector Pin assignment Wire MS3106 color connect Binder Zero operating voltage...
  • Page 35 Please ensure that after changing to switch position 3, the calibration signal is not initiated. Possible faults and their elimination: Fault: No signal at the output, amplifier indicates overflow. Cause: Too little power, T10FS disconnects. Remedy: Switch position 3. Fault: The calibration signal has been triggered by mistake. Remedy: Switch position 1.

  • Page 36: Option 2, Code Sf1/Su2

    The torque flanges of option 3, code SF1/SU2 are only intended for operation with a DC supply voltage. They must not be connected to older HBM measuring amplifiers with square wave excitation. This could lead to the destruction of the connection board resistances, or other errors in...
  • Page 37 T10FS Assignment for plug 2: Speed measuring system Connector Pin assignment Wire Sub D Binder color conne ctor Speed measurement signal (pulse string, ; 0 °) No function − − Binder 723 Speed measurement signal (pulse string, ; 90 °out of phase) No function −...
  • Page 38 T10FS Assignment for plug 3: Voltage supply and voltage output signal. Pin assignment Connector Binder Torque measurement signal (voltage output; 0 V) Supply voltage 0 V; Binder 723 Supply voltage 18 V ... 30 V DC Torque measurement signal (voltage output; "10 V) No function Calibration signal trigger 5 V −...

  • Page 39: Supply Voltage

    Connect an extra−low safe voltage of 18 V...30 V to pin 3 (+) and pin 2 ( ) of connector 1 or connector 3. We recommend that you use HBM cable KAB 8/00−2/2/2 and the appropriate connector jacks, since when operated at nominal voltage (24 V) the cable can be up to 50 m long, or 20 m long if within the nominal voltage range (see Accessories, page 63) .

  • Page 40: Calibration

    T10FS Calibration T10FS torque flanges deliver an electrical calibration signal that can be switched at the amplifier end for measurement chains with HBM components. The measurement flange generates a calibration signal of about 50 % of the nominal (rated) torque. The precise value is specified on the identification plate.

  • Page 41: Calibration Option 2, Code Sf1/Su2

    When voltages are less than 0.7 V, the torque flange is in measuring mode. Current consumption at nominal (rated) voltage is approx. 2 mA and at maximum voltage is approx. 22 mA. NOTE In the case of HBM system solutions, the measuring amplifier triggers the calibration signal. A0785 14.0 en...

  • Page 42: Settings

    T10FS Settings NOTE You will find a table containing all the relevant switch positions on the back of the stator cover. Changes to the factory settings should be marked or noted here using a waterproof felt tip pen. Einstellungen / Settings− OPTION 5...

  • Page 43: Torque Output Signal, Code Kf1

    T10FS Einstellungen / Settings OPTION 5, Code M Auswertefaktor Evaluation factor Impulse/Umdrehung Pulses/revolution 100 NVm−200 NVm 500 NVm−1 kNVm 2 kNVm−10 kNVm Ausgangsimpulsteilung Output pulse division Frequenz − Ausgangsspannung 2 x f Frequency Hysterese output voltage Hysteresis Fig. 7.2: Sticker with switch positions; magnetic speed measuring system Refer to Table 7.3 (page 48) for all pulse counts that can be adjusted with the...

  • Page 44: Setting Up The Zero Point

    T10FS 12 V symmetrical asymmetrical Pos. 2 Pos. 1 Fig. 7.3: Switch for changing the frequency output voltage 7.3 Setting up the zero point In the case of the torque flange with the voltage output option (SU2), you can access two potentiometers by removing the stator cover. You can use the zero point potentiometer to correct certain zero point deviations.

  • Page 45: Functional Testing

    T10FS 7.4 Functional testing 7.4.1 Power transmission If you suspect that the transmission system is not working properly, you can remove the stator cover and test for correct functioning. If the LED is on, the rotor and stator are properly aligned and there is no interference with the transmission of measuring signals.

  • Page 46: Testing The Optical Speed Module

    T10FS 7.4.2 Testing the optical speed module When required, you can test the correct functioning of the speed measuring system. Remove the cover of the stator housing. Turn the rotor by at least 2 min If both the control LEDs come on while you are turning the rotor, the speed measuring system is properly aligned and fully operational.

  • Page 47: Setting The Pulse Count

    T10FS 7.5 Setting the pulse count 7.5.1 Magnetic speed measuring system With the magnetic speed measuring system, a magnetized rotor is sampled by means of an MR sensor (magnetoresistive sensor). The sensor produces two sinusoidal signals offset by 90°, from which up to 10 evaluation points can be generated per pole (can be adjusted with switches F1 ...
  • Page 48 T10FS Output pulses/revolution Switch setting 100 N⋅m/200 N⋅m 500 N⋅m/1 kN⋅m 2 kN⋅m ... 10 kN⋅m S1 ... S4 F1 ... F3 1152 1440 1200 1440 1800 Table 7.3: Switch settings for pulse count/revolution ( ¢ switch lever) Factory default...
  • Page 49 T10FS The output pulse count is calculated according to the following formula: magnetic poles @ eval. points per pole Output pulse count + output pulse division NOTE Please make sure that when you change the pulse count, you also change the pulse duration! We recommend giving preference to the output pulse counts selected by switches F1 ...

  • Page 50: Optical Speed Measuring System

    T10FS 7.5.2 Optical speed measuring system NOTE The factory setting is 360 pulses/revolution. Please make sure that when you change the pulse count, you also change the pulse duration! Pulse duration + 2 @ pulse count @ speed The number of pulses per revolution of the rotor can be adjusted by means of DIP switches S1...S4.

  • Page 51: Vibration Suppression (Hysteresis)

    T10FS 7.6 Vibration suppression (hysteresis) Low rotation speeds and higher relative vibrations between the rotor and the stator can cause disturbance signals that reverse the direction of rotation. Electronic suppression (hysteresis) to eliminate these disturbances is connected at the factory. Disturbances caused by the radial stator vibration amplitude and by the torsional vibration of the rotor are suppressed.

  • Page 52: Form Of The Rotation Speed Output Signal

    T10FS 7.7 Form of the rotation speed output signal In the factory settings, two 90_ phase offset speed signals (5 V symmetrical, complementary RS422 signals) are available. You can double the pulse count set in each case by moving switch S6 to the "On" position. Pin 3 then outputs the direction of rotation as a static direction of rotation signal (pin 3 = +5 V, pin 7 = 0 V opposite pin 8), if the shaft turns in the direction of the arrow.

  • Page 53: Type Of The Rotation Speed Output Signal

    T10FS 7.8 Type of the rotation speed output signal You can use switch S7 to change the symmetrical 5 V output signal (factory setting) to an asymmetrical signal of 0 V ... 5 V. symmetrical asymmetrical Switch S7 Pos. 2 Pos.
  • Page 54 T10FS When the speed measuring system and the reference pulse are properly synchronized, LED L4 flashes (minimum speed 2 min ) and stays on from approx. 1000 min . If the LED is not on, please change switch S8 (see Fig.

  • Page 55: Loading Capacity

    T10FS Loading capacity Nominal (rated) torque can be exceeded statically up to the limit torque. If nominal (rated) torque is exceeded, additional irregular loading is not permissible. This includes longitudinal forces, lateral forces and bending moments. Limit values can be found in the "Specifications" section, Page 64.
  • Page 56 • The mechanical vibration bandwidth (peak to peak) must be no more than 200 % (measuring range 100 N⋅m 400 %; measuring range 3 ... 10 kN⋅m 160 %) of the nominal (rated) torque identified for the T10FS. The vibration bandwidth must fall within the loading bandwidth specified by −M ( at 100 N⋅m: −2 M...

  • Page 57: Maintenance

    T10FS Maintenance 9.1 Torque flange maintenance The speed measuring system is maintenance free. 9.2 Speed module maintenance 9.2.1 Magnetic speed measuring system The sensor head and the pole ring contain plastic components. You can clean these with a dry or spirit impregnated cotton bud or cloth. Do not use any other solvent! 9.2.2 Optical speed measuring system...

  • Page 58: Dimensions

    T10FS Dimensions 10.1 Rotor dimensions ∅d For Option 2", Code H" only ∅d Cutaway, turned by with reference pulse 22.5° on a level without reference pulse View A = measuring plane (center of the application point) For the speed measuring system only...

  • Page 59: Rotor Dimensions With The Magnetic Speed System

    T10FS 10.2 Rotor dimensions with the magnetic speed system View A For Option 2", Code H" only ∅d View B = measuring plane (center of the application point) Dimensions without tolerances, in accordance with DIN ISO 2768 mK Measuring ranges 100 N⋅m and 200 N⋅m: 30°...

  • Page 60: Stator Dimensions

    T10FS 10.3 Stator dimensions Clamp fixture not fitted as Side view X Side view Y standard! ∅ D ∅ d Dreh max. ∅ 4 Standard screw fitting Plug 1 Plug 3 Plug 2 approx. 100 For option 5, code A only; otherwise 18 mm...

  • Page 61: Stator Dimensions With The Magnetic Speed System

    T10FS 10.4 Stator dimensions with the magnetic speed system Side view Y Side view X Clamp fixture not fitted as standard! Standard screw fitting Plug 3 Plug 1 Plug 2 approx. 100 Top view For the speed measuring system option only approx.

  • Page 62: Mounting Dimensions

    T10FS 10.5 Mounting dimensions Mounting dimensions Measuring Dimension Area free of range "m" metal parts (mm) (mm) 100 N⋅m 13.8 200 N⋅m 500 N⋅m 13.8 28.5 1 kN⋅m 2 kN⋅m 15.3 28.5 3 kN⋅m 5 kN⋅m 16.3 31.5 10 kN⋅m 19.3...

  • Page 63: Order Numbers, Accessories

    <"0.03 % " For voltage output: Lin. <"0.05 % <"0.13 % For option 3, code SF1, SU2 only Order No.: K T10FS With selections V2, Ordering example: V4, V6 W2 and W6, please specify K T10FS 5 0 0 Q...

  • Page 64: Specifications

    T10FS Specifications Type T10FS Accuracy class 0.05 Torque measuring system Nominal (rated) torque M N⋅m 10 k Nominal (rated) sensitivity (spread between torque = zero and nominal (rated) torque) Frequency output Voltage output Sensitivity tolerance (deviation of the actual output quantity at...
  • Page 65 T10FS Specifications (continued) Nominal (rated) torque M N⋅m 200 500 1 k 10 k Thermal effects per 10 K in the nominal (rated) temperature range on the output signal, relative to the actual value of the signal spread Frequency output <...
  • Page 66 T10FS Specifications (continued) Nominal (rated) torque M N⋅m 10 k Magnetic speed measuring system Rotation speed measuring system Magnetic, by means of an MR (magnetoresistive) sensor and a magnetized plastic ring in the stainless steel ring. Multiplication by means of a real time...
  • Page 67 T10FS Specifications (continued) Optical speed measuring system Nominal (rated) torque M N⋅m 100 200 500 10 k Rotation speed measuring system Optical, by means of infrared light and metallic slotted disc Mechanical increments Positional tolerance of the increments "0.05 Slot width tolerance "0.05...
  • Page 68 T10FS Specifications (continued) General data Nominal (rated) torque M N⋅m 100 200 500 10 k Emission (in accordance with EN61326 1, Table 4) RFI field strength Class B Interference immunity (in accordance with EN61326 1, Table A.1) Electromagnetic field (AM)
  • Page 69 0.3% of the nominal (rated) torque. With T10FS/200 N⋅m to 10 k N⋅m, the nominal (rated) torque must not be exceeded. With T10FS/100 N⋅m, the nominal (rated) torque may be exceeded by 100 %.
  • Page 70 T10FS Specifications (continued) Nominal (rated) torque 100 200 500 1 k 10 k Max. permissible rotor vibration amplitude (peak to peak) Undulations within the range of the connecting flanges per ISO 7919−3 Normal mode (continuous + 9000 (n in min μm...

  • Page 71: Supplementary Technical Information

    T10FS Supplementary technical information 13.1 Output signals 13.1.1 Output MD torque (plug 1) Symmetrical output signals (factory default) symmetrical Pos. 2 S1 Plug 1 10 Vpp Differential inputs Asymmetrical output signal 12 V 12 V asymmetrical Pos. 1 Plug 1...

  • Page 72: Output N: Speed And Speed With A

    T10FS 13.1.2 Output N: Speed and speed with a reference pulse (plug 2) Symmetrical output signals (factory default) Plug 2 symmetrical Switch S7 Pos. 2 10 V Differential inputs 10 V Differential inputs Reference pulse Asymmetrical output signal asymmetrical Plug 2 Switch S7 Pos.

  • Page 73: Plug 2, Double Frequency, Stat. Direction Of Rotation Signal

    T10FS 13.1.3 Plug 2, double frequency, stat. direction of rotation signal Direction of Direction of rotation in rotation against direction of the direction of the arrow arrow Plug 2 10 V 10 V Vibration suppression 10 V Reference pulse A0785 14.0 en...

  • Page 74: Circular Run Out Values

    T10FS 13.2 Circular run out values circular run−out−axial AB circular run−out−radial AB Internal centering Hardness 46 ... 54 HRC Surface quality of the run out and concentric surfaces (A, B and AB) Measuring range circular run out−axial tolerance circular run−out−radial...
  • Page 76 Hottinger Baldwin Messtechnik GmbH 7 2002.1315 Postfach 10 01 51, D 64201 Darmstadt Im Tiefen See 45, D 64293 Darmstadt Tel.: +49 6151 803 0 Fax: +49 6151 8039100 Email: support@hbm.com Internet: www.hbm.com A0785 14.0 en...
