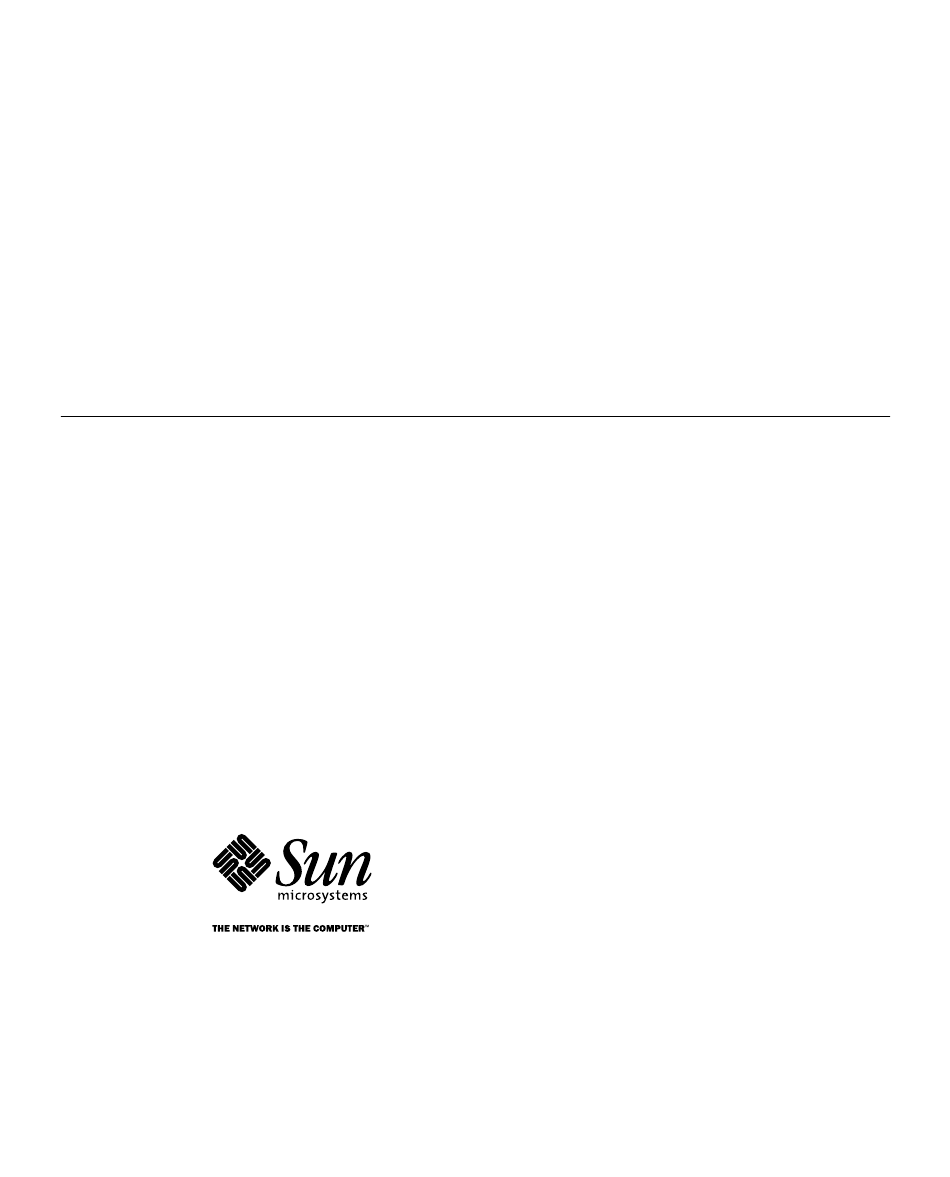

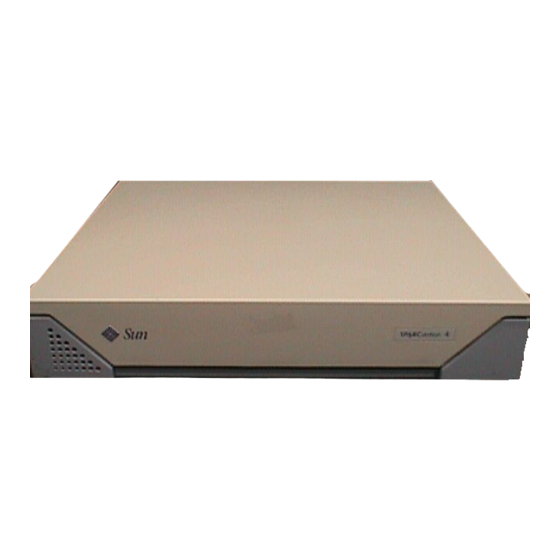

SPARCstation 4/Xterminal 1
Service Manual
Sun Microsystems Computer Company
A Sun Microsystems, Inc. Business
901 San Antonio Road Palo Alto, CA 94303-4900 USA
650 960-1300
fax 650 969-9131
Part No.: 802-1529-10
Revision A, January 1995

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPARCstation 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Microsystems SPARCstation 4

Summary of Contents for Sun Microsystems SPARCstation 4

  • Page 1 SPARCstation 4/Xterminal 1 Service Manual Sun Microsystems Computer Company A Sun Microsystems, Inc. Business 901 San Antonio Road Palo Alto, CA 94303-4900 USA 650 960-1300 fax 650 969-9131 Part No.: 802-1529-10 Revision A, January 1995...
  • Page 2 FAR 52.227-19(6/87), or DFAR 252.227-7015(b)(6/95) and DFAR 227.7202-3(a). Sun, Sun Microsystems, the Sun logo, and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and in other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the United States and in other countries.

  • Page 3: Table Of Contents

    Contents Product Description 1-1 Standard Features 1-1 1.1.1 Subassemblies, Boards, and Components 1-2 1.1.2 Interior Views 1-3 1.1.3 Rear Panel Views 1-4 Internal Options 1-6 External Options 1-7 Troubleshooting Overview 2-1 Factory-Defined Boot Mode 2-1 After Power Is Switched On 2-3 Diagnostic Tools and When to Use Them 2-7 Power-On Self-Test 2-7 FORTH-Based PROM Diagnostics 2-8...
  • Page 4 When the System Is Working Normally 6-1 6.1.2 When the System Does Not Respond Normally Powering On the System 6-4 Internal Access 7-1 Removing the Cover 7-1 Attaching the Wrist Strap 7-3 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 5 Replacing the Cover 7-4 Major Subassemblies 8-1 Power Supply 8-1 8.1.1 Removing the Power Supply 8-1 8.1.2 Replacing the Power Supply 8-3 Speaker/LED Cable 8-5 8.2.1 Removing the Speaker/LED Cable 8-5 8.2.2 Replacing the Speaker/LED Cable 8-6 Internal Speaker 8-8 8.3.1 Removing the Internal Speaker 8-8 8.3.2...
  • Page 6 System Board 11-25 11.5.1 Removing the System Board 11-25 11.5.2 Replacing the System Board 11-28 11.5.3 Setting Jumpers 11-30 11.6 NVRAM 11-32 11.6.1 Removing the NVRAM Chip 11-32 11.6.2 Replacing the NVRAM Chip 11-33 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 7 External SCSI Connector—SPARCstation 4 System Only B-1 Parallel Port Connector B-2 Attachment Unit Interface (AUI) Connector B-3 Twisted-Pair Ethernet Connector B-4 Serial Connector Ports A and B—SPARCstation 4 System Only B-4 Audio Module Ports (Optional) B-5 B.6.1 Headphone Connector B-6 B.6.2...
  • Page 8 D.1.5 probe-scsi, probe-scsi-all D-6 D.1.6 module-info D-7 D.1.7 test-memory D-7 Returning to the Old-Style Sunmon Compatibility Mode Prompt D-8 Glossary Glossary-1 viii SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 9 Figures Basic System 1-2 FIGURE 1-1 Interior View of SPARCstation 4 System 1-3 FIGURE 1-2 Interior View of SPARC Xterminal 1 System 1-4 FIGURE 1-3 Rear View of SPARCstation 4 System 1-5 FIGURE 1-4 Rear View of SPARC Xterminal 1 System 1-5 FIGURE 1-5 Factory-Defined Boot Sequence—POST Phase Settings and Tests 2-2...
  • Page 10 Removing the Hard Disk Drive 9-3 FIGURE 9-2 Replacing the Disk Drive 9-4 FIGURE 9-3 Removing the CD-ROM Drive 9-5 FIGURE 9-4 Jumper Settings for SPARCstation 4 CD-ROM Drive 9-6 FIGURE 9-5 Replacing the CD-ROM Drive 9-7 FIGURE 9-6 Diskette Drive Location 9-8 FIGURE 9-7...
  • Page 11 FIGURE 9-25 CD-ROM Drive Rear Panel Connectors 9-26 FIGURE 9-26 Reconnecting the Main Logic Board Connectors 9-27 FIGURE 9-27 SPARCstation 4 System Board 10-2 FIGURE 10-1 SPARC Xterminal 1 System Board 10-3 FIGURE 10-2 SBus Slot Location 11-1 FIGURE 11-1...
  • Page 12 Serial Connector—SPARCstation 4 System Only B-4 FIGURE B-5 Audio Module Connectors B-5 FIGURE B-6 Headphone Connector B-6 FIGURE B-7 Audio Line-out Connector B-6 FIGURE B-8 Audio Line-in Connector B-6 FIGURE B-9 Microphone Connector B-7 FIGURE B-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 13 Keyboard/Mouse Connector B-8 FIGURE B-11 13W3 Video Connector B-9 FIGURE B-12 Figures xiii...
  • Page 14 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 15 Power Supply Connector Pin Assignments 4-4 TABLE 4-2 Troubleshooting Disk Drive Errors 4-6 TABLE 4-3 Physical Memory Address Ranges for SPARCstation 4 System 4-8 TABLE 4-4 Physical Memory Address Ranges for SPARC Xterminal 1 System 4-9 TABLE 4-5 Safety Precautions...
  • Page 16 Physical Specifications—SPARC Xterminal 1 System A-2 TABLE A-2 Input Power Requirements and Power Dissipation—SPARCstation 4 System TABLE A-3 Input Power Requirements and Power Dissipation—SPARC Xterminal 1 System TABLE A-4 Input Power Requirements and Power Dissipation—SPARCserver 4 System TABLE A-5 Environmental Requirements A-4...
  • Page 17 Preface This service manual describes how to troubleshoot problems and replace parts in the SPARCstation™™ 4/SPARC®™ Xterminal 1 computer systems. Technicians, advanced computer system end-users (with experience replacing hardware and troubleshooting), system administrators, or qualified service providers should use this book. Document Organization This book is divided into seven parts.
  • Page 18 AaBbCc123 Book titles, new words or Read Chapter 6 in User’s Guide. These terms, or words to be are called class options. emphasized You must be root to do this. xviii SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 19 Shell Prompts in Command Examples The following table shows the default system prompt and superuser prompt for the C shell, Bourne shell, and Korn shell. Shell Prompts TABLE P-2 Shell Prompt C shell prompt machine_name% C shell superuser prompt machine_name# Bourne shell and Korn shell prompt Bourne shell and Korn shell...
  • Page 20 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 21: Product Description

    “Standard Features” on page 1 “Internal Options” on page 6 “External Options” on page 7 Standard Features The SPARCstation 4 system accommodates the following storage devices: 545-Mbyte single-connector hard disk drive 1.05-Gbyte single-connector hard disk drive Diskette drive Internal CD-ROM drive It also accommodates up to 160 Mbytes of memory using dynamic single in-line memory modules (DSIMMs).

  • Page 22: Subassemblies, Boards, And Components

    Basic System FIGURE 1-1 1.1.1 Subassemblies, Boards, and Components The SPARCstation 4 system unit accommodates the following subassemblies, boards, and components: System board DSIMMs (up to 5) One VSIMM Audio Module card One SBus card One hard disk drive (3.5-inch, 88.0-mm, single-connector) CD-ROM drive Diskette drive (3.5-inch)

  • Page 23: Interior Views

    1.1.2 Interior Views show interior views of the major subassemblies and the FIGURE 1-2 FIGURE 1-3 system board for SPARCstation 4 and SPARC Xterminal 1 systems, respectively. CD-ROM drive Diskette drive (top unit) (bottom unit) DSIMMs Hard drive Power supply...

  • Page 24: Rear Panel Views

    Interior View of SPARC Xterminal 1 System FIGURE 1-3 1.1.3 Rear Panel Views The rear views of SPARCstation 4 and SPARC Xterminal 1 systems are shown in , respectively. FIGURE 1-4 FIGURE 1-5 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 25 6 – SBus 12 – Serial ports A/B * Audio ports are part of the optional Audio Module card. SERIAL A/B Rear View of SPARCstation 4 System FIGURE 1-4 Legend: 1 – AC On/Standby switch 4 – SBus video (Optional) 7 –...

  • Page 26: Internal Options

    Internal Options lists the internal options for a SPARCstation 4 system. TABLE 1-1 Internal Options—SPARCstation 4 System TABLE 1-1 Option Quantity Comments Audio Module System board provides a connection for one Audio Module for recording and playing audio. SBus card System board provides one SBus slot for additional system functionality.

  • Page 27: External Options

    External Options lists selected external small computer system interface (SCSI) options for TABLE 1-3 the SPARCstation 4 system. Note – The SPARC Xterminal 1 system does not support SCSI devices. Selected External SCSI Peripheral Options TABLE 1-3 Unit Description Desktop Backup Pack 150-Mbyte tape drive or DAT tape drive.
  • Page 28 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 29: Troubleshooting Overview

    Troubleshooting Overview This chapter describes the factory-defined boot sequence. It also describes the different types of SPARCstation 4 and SPARC Xterminal 1 diagnostic firmware and software tools that are available to you for troubleshooting; the chapter explains how the tools are related and when to use them.
  • Page 30 Low-level false Diagnostic: POST Phase Display errors only on POST keyboard LEDs, passed ttya, and console. OpenBoot PROM firmware takes control Factory-Defined Boot Sequence—POST Phase Settings and Tests FIGURE 2-1 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 31: After Power Is Switched On

    OpenBoot PROM Phase After POST phase, OpenBoot PROM firmware takes control System initialization Probe memory Stop-a keys pressed? Probe CPU Stop-n keys diag- false true pressed? switch? Tests selftest-#megs Tests all memory Setting nvram defaults Press Stop-a to go to ok prompt Stop-d keys true...
  • Page 32 OBP monitor (prompt is ok). lists NVRAM parameters and explains their effect on the power-up TABLE 2-1 sequence. For more detailed information about NVRAM parameters, see the OpenBoot Command Reference. SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 33 Note – At any point during the high-level OBP execution, you can abort the OBP sequence and access the FORTH Monitor by pressing the Stop and “a” keys simultaneously. NVRAM Parameters Used During POST and Boot Sequence TABLE 2-1 NVRAM Parameter Description This parameter determines how many megabytes of selftest-#megs...
  • Page 34 System Exerciser, for additional information. To boot user-specified programs, you must be at the > prompt or ok prompt. See Appendix D, for a detailed procedure on how to access the > or the ok prompt. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 35: Diagnostic Tools And When To Use Them

    Diagnostic Tools and When to Use Them provides a summary of the available diagnostic tools and describes when TABLE 2-3 to use each tool. Diagnostic Tools TABLE 2-3 Diagnostic Tool When or Why to Use the Tool Power-On Self-Test (POST) Executes automatically at power-on when Stop-d keys are pressed or when the diag-switch? parameter is set to true.

  • Page 36: Forth-Based Prom Diagnostics

    A cable must be attached to See description. test net external loopback test on the the system and to an auto-selected system Ethernet Ethernet tap or hub or the interface. external loopback test will fail. SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 37 Selected FORTH Diagnostic Tests (Continued) TABLE 2-4 Type of Test Description Preparation When to Use Tests internal or external SCSI The drive must be spinning Disk drive does not test disk disks that have a self-diagnostic before this test is executed function properly.

  • Page 38: Forth Monitor

    The FORTH Monitor is a basic diagnostic utility and system interface. If there is any problem with your operating system, the FORTH Monitor automatically starts, as indicated by the appearance of the ok prompt (the Monitor also starts if auto- boot? is set to false). 2-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 39: Sundiag System Exerciser

    You can also choose to access the FORTH Monitor by halting the system. For information about how to access the FORTH Monitor, see Appendix D. For extensive information about tests you can run from the FORTH Monitor, see OpenBoot Command Reference. SunDiag System Exerciser Use the SunDiag System Exerciser to determine real-time use of system resources and peripheral equipment, such as Desktop Storage Modules and External Storage...
  • Page 40 2-12 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 41: Power-On Self-Test (Post)

    C H A P T E R Power-On Self-Test (POST) This chapter describes the Power-On Self-Test (POST) for Normal, Full, and Abbreviated modes, available with your SPARCstation 4 and SPARC Xterminal 1 system. Power-On Self-Test (POST) Normal Mode Full Diagnostic Mode...
  • Page 42 Caps Lock LED Caps Lock LED Compose (UNIX keyboard) (U.S. keyboard) Arrangement of Sun Type-5 Keyboard Diagnostic LEDs FIGURE 3-1 Caps Lock Compose Scroll Lock Num Lock Sun Type-4 Keyboard FIGURE 3-2 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 43: Power-On Self-Test (Post)

    Scroll Lock Caps Lock LED Caps Lock LED Compose Num Lock (UNIX keyboard) (U.S. keyboard) Sun Compact 1 Keyboard FIGURE 3-3 If the system fails any POST, one of the LEDs will light to indicate the nature of the problem. The LED may be lit continuously, or for just a few seconds. TABLE 3-1 provides the meaning of each diagnostic LED.

  • Page 44: Normal Mode

    POST is successful, control is transferred to the OBP firmware that probes the installed SBus modules. Full Diagnostic Mode runs if one of these conditions is met: You press and hold the Stop-d keys while you turn on the power. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 45: Abbreviated Diagnostic Mode

    You set the diag-switch? NVRAM parameter to true in the OpenBoot PROM. You disconnect the keyboard and you set the diag-switch? NVRAM parameter to true in the OpenBoot PROM. Note – POST does not perform extensive testing on any system board component. POST detects only major failures.

  • Page 46: Tests The Post Runs

    MMU Context Table Reg Test MMU Context Register Test MMU TLB Replace Ctrl Reg Tst MMU Sync Fault Stat Reg Test MMU Sync Fault Addr Reg Test MMU TLB RAM NTA Pattern Test SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 47 List of Full Diagnostic Mode Tests (Continued) TABLE 3-2 MMU TLB CAM NTA Pattern Test MMU TLB LCAM NTA Pattern Test IOMMU SBUS Config Regs Test IOMMU Control Reg Test IOMMU Base Address Reg Test IOMMU TLB Flush Entry Test IOMMU TLB Flush All Test SBus Read Time-out Test EBus Read Time-out Test...

  • Page 48: Post Error Messages

    DSIMM is installed in the system, the POST will tell you that no DSIMM is installed and will indicate the slot number of the DSIMM slot. Use the error messages returned by POST to troubleshoot the system. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 49: Status Lights (Leds) And Indicators

    Status Lights (LEDs) and Indicators The LED at the front of the chassis lights when the system is operating normally. shows the location of the system LED. Chapter 4 shows flow diagrams of FIGURE 3-5 actions to take when the system LED is not lit. System Front System power LED Location of System Power LED...
  • Page 50 3-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 51: Troubleshooting Procedures

    C H A P T E R Troubleshooting Procedures This chapter describes how to troubleshoot SPARCstation 4 and SPARC Xterminal 1 system problems. Each problem is described, and a set of procedures is provided as a solution to the problem.

  • Page 52: No Video Output On The System Monitor

    If the power cord and video cable connection are good and there is still no video output, reseat the video card for the monitor. 4. If the monitor power supply is internally fused, check the fuse. The fuse could be blown. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 53: Power-On Does Not Succeed

    Power-On Does Not Succeed 1. Turn off the system power switch. 2. Check that the system power cord is properly connected to the system rear panel power receptacle and to the wall outlet. 3. Verify with a VOM that the wall outlet is supplying AC power to the system.

  • Page 54: Figure 4-1 Power Supply Connector

    Power on 1. All volts are direct current. 2. SPARCstation 4 and SPARC Xterminal 1 power supplies have no connections to pins 5, 6, 12, 13, and 16. The SPARCserver 4 power supply has connections to all pins. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 55: System Board Test

    4.2.2 System Board Test 1. Connect a terminal to serial port A or use a tip connection to another workstation to receive additional POST failure information. To set up a tip connection to another workstation, see Section 3.4.1 “Setting Up a tip Connection to Another System.”...

  • Page 56: Verifying The Built-In Scsi Controller

    Note – This test does not apply to the SPARC Xterminal 1 system. At the ok prompt, type probe-scsi See the following example. ok probe-scsi Target 3 Unit 0 Disk SEAGATE ST3610N SUN0535881200054301 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 57: Determining Faulty Dsimm Locations

    If the error message displays the location number, see for DSIMM location FIGURE 4-2 numbers in the SPARCstation 4 system and see for DSIMM location FIGURE 4-3 numbers in the SPARC Xterminal 1 system. If the error message displays a physical...

  • Page 58: Figure 4-2 Dsimm Slot Locations-Sparcstation 4 System

    Slot 0 DSIMM Slot Locations—SPARC Xterminal 1 System FIGURE 4-3 The following table shows the Physical Memory Address Ranges for the SPARCstation 4 system. Physical Memory Address Ranges for SPARCstation 4 System TABLE 4-4 Slot SIMM # Physical Memory Address Ranges...

  • Page 59: Table 4-5 Physical Memory Address Ranges For Sparc Xterminal 1 System

    The following table shows the Physical Memory Address Ranges for the SPARC Xterminal 1 system Physical Memory Address Ranges for SPARC Xterminal 1 System TABLE 4-5 Slot SIMM # Physical Memory Address Ranges J0301 0000 0000 through 01FF FFFF J0302 0200 0000 through 03FF FFFF J0303 0400 0000 through 05FF FFFF...
  • Page 60 4-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 61: Safety And Tools Requirements

    C H A P T E R Safety and Tools Requirements This chapter describes standards, safety procedures, and precautions you should follow whenever you need to replace or remove assemblies or subassemblies from your system. “Safety Requirements” on page 1 “Symbols”...

  • Page 62: Symbols

    Heat, burns Do not touch the metal heat sink on the heat sink microSPARC II chip. The heat sink can be hot enough to cause personal injury. Symbols The following symbols mean: SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 63: System Precautions

    Procedures contained in this document must be performed by trained maintenance providers. Only people who have been trained at the Sun Microsystems®™ training facilities (or at Sun Microsystems affiliates) and have been certified as required by local and national laws are considered qualified.

  • Page 64: Electrostatic Discharge (Esd) Precautions

    The soldered pins are easily damaged or shorted by the probe point. Transport boards, cards, or modules in an antistatic bag. Always wear an antistatic wrist strap connected to a metal surface on the chassis when working on system components and parts. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 65: Power On And Off

    C H A P T E R Power On and Off This chapter explains steps to perform before removing a customer replaceable unit (CRU). “Powering Off the System” on page 1 “Powering On the System” on page 4 Powering Off the System Before you begin any removal or replacement procedure, you must halt the system in an orderly manner.

  • Page 66: When The System Does Not Respond Normally

    If the response is not due to the network, go to the next step. 2. Press Stop-a (or Break). If you use a Wyse®™ WY-50™™, VT-100™™, or compatible terminal as the console with your system unit, press Break instead of Stop-a. SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 67 Note – If the system does not respond to the mouse and keyboard, pressing Stop-a will not be effective. You may have to turn the power off, wait at least 10 seconds, and turn the power on again. Then try pressing Stop-a once more. 3.

  • Page 68: Powering On The System

    1. If your system uses external drive units, turn on the power to these units first, starting with the unit that is furthest electrically from the system unit. 2. Turn on the power to the monitor. 3. Turn on the power to the system unit. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 69: Internal Access

    C H A P T E R Internal Access This chapter describes how to access the subassemblies inside the system unit, and how to close the system unit after you have finished. “Removing the Cover” on page 1 “Attaching the Wrist Strap” on page 3 “Replacing the Cover”...

  • Page 70: Figure 7-1 Removing The Rear Panel Cover Screws

    3. Unscrew the Phillips-head screw that secures the lock block to the cover. Remove the lock block and put it aside (see FIGURE 7-1 Removing the Rear Panel Cover Screws FIGURE 7-1 4. Lift the cover free of the chassis. FIGURE 7-2 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 71: Attaching The Wrist Strap

    SPARCstation 4 System Shown Removing the Cover FIGURE 7-2 5. Attach a wrist strap to your wrist and to the metal casing of the power supply. See Section 7.2 “Attaching the Wrist Strap.” Caution – When you are finished servicing parts inside the system unit, be sure to close the system unit before turning on the power.

  • Page 72: Replacing The Cover

    2. Align the cover hinge tabs with the tab slots on the bottom front of the system chassis. Carefully lower the cover, making sure that the hinge hooks remain inside their respective slots. FIGURE 7-4 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 73: Figure 7-4 Replacing The Cover

    Guide cover hinge hooks into corresponding slots at front of system chassis. SPARCstation 4 System Shown Replacing the Cover FIGURE 7-4 3. Replace the lock block on the rear panel. Tighten the Phillips-head screw that secures the lock block to the cover.

  • Page 74: Figure 7-5 Securing The System Unit Cover

    Caution – Do not use a power driver to tighten captive screws. Do not overtighten captive screws. Securing the System Unit Cover FIGURE 7-5 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 75: Major Subassemblies

    When servicing any other system component, the AC power cord should remain connected; it poses no safety hazard. SPARC Xterminal 1 and SPARCstation 4 systems have a 50-watt power supply with an unswitched AC accessory outlet. SPARCserver 4 systems have a 150-watt power supply, with a switched AC accessory outlet.
  • Page 76 5. On the rear panel, loosen the captive screw securing the power supply to the chassis. FIGURE 8-1 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 77: Replacing The Power Supply

    Power supply Power supply rear view DC power harness Power supply connector DC power SPARCstation 4 connector System Shown Captive screw Removing the Power Supply FIGURE 8-1 6. Disconnect the power supply connector from the system board. FIGURE 8-1 7. Slide the power supply toward the chassis front to free it from the chassis mounts.

  • Page 78: Figure 8-2 Connecting The Dc Power Harness To The Power Supply

    6. Plug the power supply connector into the system board. FIGURE 8-1 7. Remove the wrist strap first from your wrist and then from the power supply. 8. Replace the cover. See Section 7.3 “Replacing the Cover.” SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 79: Speaker/Led Cable

    9. Plug in the power cord to the system unit and the wall outlet. 10. Power on the system. See Section 6.2 “Powering On the System.” Speaker/LED Cable The system power LED is located at one end of the speaker/LED cable assembly. 8.2.1 Removing the Speaker/LED Cable 1.

  • Page 80: Replacing The Speaker/Led Cable

    Replacing the Speaker/LED Cable 1. Position the replacement speaker/LED cable so that the power LED contacts the LED light pipe. Then press the cable between the LED tabs to secure it in place. FIGURE 8-4 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 81: Figure 8-4 Positioning The Led Cable

    SPARCstation 4 System Shown Press LED cable between tabs to secure it in place. LED light pipe Positioning the LED Cable FIGURE 8-4 2. Route the speaker/LED cable behind the diskette drive bracket and through the metal cable clips. FIGURE 8-3 3.

  • Page 82: Internal Speaker

    5. Use the screwdriver to push on the tab inside the slot. At the same time, pull slightly on the speaker cover to disengage the tab from the chassis. 6. Repeat Step 1 for the second slot. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 83: Figure 8-5 Removing The Speaker Cover

    Insert small, flat-blade screwdriver into slots on underside of chassis. Push up on tabs to disengage speaker cover. Removing the Speaker Cover FIGURE 8-5 7. Use the screwdriver to deflect the third tab, behind the top corner of the speaker cover, and remove the speaker cover.

  • Page 84: Figure 8-6 Removing The Speaker

    10. Hold the speaker in one hand and disconnect the two fast-on connectors from the speaker terminals on the back of the speaker. FIGURE 8-7 11. Set the speaker aside. 8-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 85: Replacing The Internal Speaker

    Speaker (rear view) Small fast-on connector Large fast-on connector Speaker Connections FIGURE 8-7 8.3.2 Replacing the Internal Speaker Caution – Do not touch the black inner surface of the speaker. Handle the speaker only by the metal frame to avoid damage. 1.
  • Page 86 6. Reconnect the speaker/LED cable to the system board. FIGURE 8-3 7. Detach the wrist strap and replace the cover. See Chapter 7. 8. Power on the system. See Section 6.2 “Powering On the System.” 8-12 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 87: Storage Devices

    “DC Power Harness” on page 18 “Diskette Data Cable” on page 19 “CD-ROM Audio Cable” on page 21 Note – The information in this chapter applies only to a SPARCstation 4 system; it does not apply to a SPARC Xterminal 1 system. Hard Disk Drive The SPARCstation 4 system accommodates one internal 545-Mbyte or 1.05-Gbyte...

  • Page 88: Removing The Hard Disk Drive

    SCSI cable from the connector at the rear of the drive. 5. Grasp the drive bracket handle and lift the drive straight up and out of the chassis. Place the drive on an antistatic surface. See FIGURE 9-2 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 89: Replacing The Hard Disk Drive

    Removing the Hard Disk Drive FIGURE 9-2 9.1.2 Replacing the Hard Disk Drive Note – No jumper settings are required for the hard drive. The SCSI ID and termination are provided by the system board. 1. Remove the replacement drive from its antistatic shipping bag. 2.

  • Page 90: Cd-Rom Drive

    7. Power on the system. See Section 6.2 “Powering On the System.” CD-ROM Drive 9.2.1 Removing the CD-ROM Drive 1. Shut down and power off the system. See Section 6.1 “Powering Off the System.” SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 91: Replacing The Cd-Rom Drive

    2. Remove the cover and attach a wrist strap. See Chapter 7. 3. Disconnect the CD-ROM SCSI, DC power, and audio cable (if present) from the CD-ROM drive. Leave the cables plugged into the system board. 4. Push the CD-ROM drive toward the edge of the chassis to disengage it. FIGURE 9-4 5.

  • Page 92: Figure 9-5 Jumper Settings For Sparcstation 4 Cd-Rom Drive

    4. Attach the CD-ROM SCSI cable, the DC power, and the audio cable (if present) to the drive. FIGURE 9-6 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 93: Figure 9-6 Replacing The Cd-Rom Drive

    DC power cable Audio Module (option) SCSI data cable Audio cable (option) Replacing the CD-ROM Drive FIGURE 9-6 5. Detach the wrist strap and replace the cover. See Chapter 7. 6. Power on the system. See Section 6.2 “Powering On the System.” Chapter 9 Storage Devices...

  • Page 94: Diskette Drive

    The diskette drive is not a SCSI device. The other drives in your system are SCSI devices—such as the CD-ROM drive and the hard disk drives. The diskette drive connects to an 8-bit internal bus in the SPARCstation 4 system. CD-ROM...

  • Page 95: Removing The Diskette Drive

    9.3.1 Removing the Diskette Drive 1. Shut down and power off the system. See Section 6.1 “Powering Off the System.” 2. Remove the cover and attach a wrist strap. See Chapter 7. 3. Remove the CD-ROM drive (if installed). If the CD-ROM drive is not installed, remove the CD-ROM filler panel as shown in FIGURE 9-8 If you need to remove the CD-ROM drive, see Section 9.2.1 “Removing the...

  • Page 96: Figure 9-9 Disengaging The Diskette Drive

    Disengaging the Diskette Drive FIGURE 9-9 5. Disconnect the diskette drive data and DC power cables from the diskette drive. FIGURE 9-10 6. Lift the diskette drive out of the drive bracket. 9-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 97: Replacing The Diskette Drive

    Diskette driv data cable DC Power cable Removing the Diskette Drive FIGURE 9-10 7. Place the drive on an antistatic mat. 8. Remove the mounting grommets and screws from the drive. 9.3.2 Replacing the Diskette Drive 1. Take the four grommets and screws that you removed from the defective diskette drive and install them on the replacement drive.
  • Page 98 3. Move the CD-ROM SCSI and DC power cables away from the diskette drive opening. 4. To clear the diskette drive bay, lift up the diskette data cable and the two-wire diskette drive power cable (P3). 9-12 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 99 Diskette data cable CD-ROM SCSI cable CD-ROM drive power cable Diskette drive power cable (P3) Positioning the Diskette Drive Power Cable FIGURE 9-13 5. Lower the diskette drive into the drive bracket. Push it forward so it is fully seated in the diskette drive mounts. The diskette drive data cable must be between the side of the diskette drive and the metal drive bracket.

  • Page 100: Figure 9-14 Lowering The Diskette Drive Into Place

    Route the diskette cable over the side and the top of the drive to the connector at the back. When installed, the cable bends at a 90-degree angle on top of the installed drive. See FIGURE 9-16 9-14 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 101: Cd-Rom Scsi Cable

    Diskette drive data cable Connecting the Diskette Drive Data Cable to the Diskette Drive FIGURE 9-16 8. If there is a CD-ROM drive, reinstall it. Otherwise, replace the CD-ROM drive filler panel shown in FIGURE 9-8 If you need to reinstall the CD-ROM drive, see Section 9.2.2 “Replacing the CD-ROM Drive.”...

  • Page 102: Replacing The Cd-Rom Scsi Cable

    For the CD-ROM SCSI cable, the colored tape should be centered directly below that same cable clip. 9-16 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 103: Figure 9-18 Internal Cable Routing

    1. Feed the CD-ROM SCSI cable through the opening in the drive bracket. 2. Route the CD-ROM SCSI cable through the metal cable clips. The taped portion of the SCSI cable should be positioned directly beneath the lower cable clip, as shown in FIGURE 9-18 Speaker/LED cable Metal cable clips...

  • Page 104: Dc Power Harness

    1. Connect the DC power harness to the rear of the power supply. 2. Reinstall the power supply. See Section 8.1.2 “Replacing the Power Supply.” 3. Connect the DC power harness to the diskette drive (if present). 9-18 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 105: Diskette Data Cable

    4. Route the DC power harness through the metal cable clips. The two tie-wrap cords on the DC power harness should straddle the cable clip that is closest to the system board. See FIGURE 9-18 5. Reinstall the CD-ROM SCSI cable (if present). See section 9.4.2, “Replacing the CD-ROM SCSI Cable.”...

  • Page 106: Replacing The Diskette Data Cable

    4. Connect the two-wire power and the new diskette cable to the rear of the diskette drive. 5. Install the CD-ROM drive (if necessary). See Section 9.2.2 “Replacing the CD-ROM Drive.” 9-20 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 107: Cd-Rom Audio Cable

    6. Detach the wrist strap and replace the cover. See Chapter 7. 7. Power on the system. See Section 6.2 “Powering On the System.” CD-ROM Audio Cable 9.7.1 Removing the Audio Cable 1. Shut down and power off the system. See Section 6.1 “Powering Off the System.”...

  • Page 108: Figure 9-21 Removing The Audio Cable From The Audio Module

    Removing the Audio Cable From the Audio Module FIGURE 9-21 7. From the system board, disconnect the power supply cable, the SCSI cable, and the diskette drive cable (if present). 9-22 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 109: Replacing The Audio Cable

    Power supply connector Diskette drive connector SCSI connector Disconnecting the System Board Connectors FIGURE 9-22 8. Remove the audio cable from the system. 9.7.2 Replacing the Audio Cable 1. Feed the CD-ROM audio cable beneath the metal shield and connect it to its matching Audio Module connector.

  • Page 110: Figure 9-23 Pressing The Audio Cable Into The Cable Slot

    Cable slot Metal Audio cable connector shield Pressing the Audio Cable Into the Cable Slot FIGURE 9-23 4. Feed the Audio Module cable around the corner post of the card guide. 9-24 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 111: Figure 9-24 Routing The Audio Cable Around The Corner Post

    Corner post Routing the Audio Cable Around the Corner Post FIGURE 9-24 5. If you have a CD-ROM drive, go to Step 1. Otherwise, secure the audio cable under the card guide. Chapter 9 Storage Devices 9-25...

  • Page 112: Figure 9-25 Securing The Audio Cable

    6. If you have a CD-ROM drive, connect the audio cable to the CD-ROM drive Audio Out connector. CD-ROM Audio Out connector CD-ROM Drive Rear Panel Connectors FIGURE 9-26 7. Reconnect the diskette drive, SCSI, and power supply cables to the main logic board. 9-26 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 113: Figure 9-27 Reconnecting The Main Logic Board Connectors

    Power supply connector Diskette drive connector SCSI connector Reconnecting the Main Logic Board Connectors FIGURE 9-27 8. If you removed an SBus card earlier, replace it now. See Section 11.1.2 “Replacing the SBus Card.” 9. Detach the wrist strap and replace the cover. See Chapter 7.
  • Page 114 9-28 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 115: System Board Overview

    Part numbers for antistatic mats from Sun Microsystems are listed in Chapter 12 “. 10.2 Handling System Boards and Assemblies Caution –...

  • Page 116: System Board Layouts

    Transport the board in an antistatic bag. Protect yourself and the equipment by observing the safety precautions described in Chapter 5. 10.3 System Board Layouts shows the major components on the SPARCstation 4 system board. FIGURE 10-1 Diskette drive CD-ROM SCSI connector connector...

  • Page 117: Replaceable System Board Components

    VSIMM PROM NVRAM SPARC Xterminal 1 System Board FIGURE 10-2 10.4 Replaceable System Board Components The following are the system board replaceable components for a SPARCstation 4 system: DSIMMs VSIMM Audio Module SBus card NVRAM System board The following are the system board replaceable components for a SPARC Xterminal...
  • Page 118 10-4 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 119: System Board And Component Replacement

    C H A P T E R System Board and Component Replacement This chapter describes how to remove, replace, and configure the system board and its replaceable parts. “SBus Card” on page 1 “Audio Module” on page 7 “DSIMMs” on page 17 “VSIMM”...

  • Page 120: Removing The Sbus Card

    4. Remove the SBus card extractor handle from the replacement SBus card. a. Bend one leg of the extractor handle slightly to the outside until the hook clears the hole in the SBus card. 11-2 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 121: Figure 11-3 Removing The Extractor Handle From An Sbus Card

    b. Remove the other side of the extractor handle, which should come out easily without bending it. SBus card extractor handle SBus Card Removing the Extractor Handle From an SBus Card FIGURE 11-3 5. Insert the legs of the card extractor into the holes on the installed SBus card.

  • Page 122: Figure 11-4 Installing The Sbus Card Extractor

    6. Hold both ends of the card extractor. Pull upward slowly and evenly until the card is disconnected. Removing the SBus Card FIGURE 11-5 7. Remove the card extractor from the SBus card (refer to Step 1). 8. Place the SBus card on an antistatic surface. 11-4 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 123: Replacing The Sbus Card

    11.1.2 Replacing the SBus Card 1. If required for your card, set the jumpers or switches on the replacement card. See the manual accompanying your SBus product, or duplicate the settings on the defective card. 2. If the new SBus card has an adapter bracket with tabs, unscrew the retaining screws and discard the adapter bracket before installing the card.

  • Page 124: Figure 11-6 Inserting The Sbus Card

    Caution – Align the connectors carefully and push down evenly on both corners of the card to avoid damaging the connector pins. 6. Push the card retainers forward to secure the SBus card. 11-6 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 125: Audio Module

    8. Power on the system. See Section 6.2 “Powering On the System.” 11.2 Audio Module Note – The Audio Module is for the SPARCstation 4 workstation only. The SPARCstation 4 Audio Module plugs into the Audio Module connector shown FIGURE 11-8 Chapter 11...

  • Page 126: Removing The Audio Module

    5. Unplug the audio cable from the connector on the Audio Module. Gently pull the audio cable from underneath the Audio Module metal shield, so that the connector does not snag on any Audio Module components. 11-8 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 127 Retaining hooks Cable slot Taped cable section Metal Audio cable connector shield Removing the Audio Cable From the Audio Module FIGURE 11-9 6. Unlock the Audio Module retainers. Push back the lower card retainers to release the Audio Module. Chapter 11 System Board and Component Replacement 11-9...

  • Page 128: Figure 11-10 Unlocking The Audio Module

    9. Holding the connector end of the Audio Module, disengage the Audio Module from its opening on the system back panel. Hold the module by its edges and remove its central tab from the corresponding slot on the system back panel. 11-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 129: Figure 11-11 Removing The Audio Module

    Disengage tab from central slot. Removing the Audio Module FIGURE 11-11 10. Remove the card extractor from the Audio Module. See Step 4. 11. Place the Audio Module on an antistatic surface. 12. If you are not replacing the Audio Module, insert an Audio Module filler panel into the Audio Module rear panel opening.

  • Page 130: Replacing The Audio Module

    1. Remove the Audio Module filler panel (if present). Squeeze the two tabs at the base of the lower bay filler panel until they disengage from the rear panel. See FIGURE 11-13 11-12 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 131: Figure 11-13 Removing The Audio Module Filler Panel

    Removing the Audio Module Filler Panel FIGURE 11-13 2. Align the Audio Module with its opening on the system back panel. Hold the module by its edges and insert its central tab into the corresponding slot on the system back panel. See FIGURE 11-14 3.

  • Page 132: Figure 11-14 Inserting The Audio Module

    Inserting the Audio Module FIGURE 11-14 5. Lock the module in place. Push both lower card retainers into the upright position. Push module down. Lock module in place. Securing the Audio Module FIGURE 11-15 11-14 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 133: Figure 11-16 Connecting The Cd-Rom Audio Cable

    6. Feed the CD-ROM audio cable beneath the metal shield and connect it to its matching connector on the Audio Module. The connectors are keyed to install in one way only. Audio cable Audio cable connector Metal shield Connecting the CD-ROM Audio Cable FIGURE 11-16 7.

  • Page 134: Figure 11-17 Pressing The Audio Cable Into The Cable Slot

    Retaining hooks Taped cable section Cable slot Pressing the Audio Cable Into the Cable Slot FIGURE 11-17 9. Ensure that the cable is routed around the corner post of the card guide. 11-16 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 135: Dsimms

    Corner post Routing the Audio Cable Around the Corner Post FIGURE 11-18 10. If you removed an SBus card earlier, replace it now. See Section 11.1.2 “Replacing the SBus Card.” 11. Detach the wrist strap and replace the cover. See Chapter 7. 12.

  • Page 136: Removing The Dsimm

    Microsystems offers two different types of DSIMMs for these systems—an 8-megabyte DSIMM and a 32-megabyte DSIMM. SPARCstation 4 system units come equipped with a minimum of 16 megabytes of dynamic random access memory (DRAM), expandable to 160 megabytes using 32- megabyte SIMMs in all five slots.

  • Page 137: Figure 11-19 Dsimm Slot Locations On The System Board

    Slot 4 Slot 3 Slot 2 Slot 1 Slot 0 SPARCstation 4 system shown. SPARC Xterminal 1 systems have four slots (slots 0 to 3). Rear Panel DSIMM Slot Locations on the System Board FIGURE 11-19 5. To eject the faulty DSIMM, press down on the ejection levers on both sides of the DSIMM connector.

  • Page 138: Replacing The Dsimm

    4. Place your thumbs as shown in and push the DSIMM firmly into its FIGURE 11-22 connector. 5. To lock the DSIMM in place, push both ejector levers into the upright position. 11-20 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 139: Vsimm

    Push the DSIMM firmly into its connector. Installing the DSIMM FIGURE 11-22 6. Detach the wrist strap and replace the cover. See Chapter 7. 7. Power on the system. See Section 6.2 “Powering On the System.” 8. Watch for the system banner to verify that the system recognizes the new memory. The system banner appears at the top of the screen a few seconds after you power on the system.

  • Page 140: Figure 11-23 Vsimm Slot Location

    SPARCstation 4 System Shown Rear Panel VSIMM Slot Location FIGURE 11-23 5. To eject the faulty VSIMM, press down on the ejection levers on both sides of the VSIMM connector. FIGURE 11-24 11-22 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 141: Replacing The Vsimm

    Push down ejector levers to eject VSIMM Ejecting the VSIMM FIGURE 11-24 6. Holding the VSIMM by its edges, remove it from the slot and place it on an antistatic surface. 11.4.2 Replacing the VSIMM 1. Carefully remove the new VSIMM from its protective packaging and place it on an antistatic surface.

  • Page 142: Figure 11-25 Orienting The Vsimm

    4. Place your thumbs as shown in and push the VSIMM firmly into its FIGURE 11-26 connector. 5. To lock the VSIMM in place, push both ejector levers into the upright position. 11-24 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 143: System Board

    Push the VSIMM firmly into its connector. Installing the VSIMM FIGURE 11-26 6. Detach the wrist strap and replace the cover. See Chapter 7. 7. Power on the system. See Section 6.2 “Powering On the System.” 11.5 System Board 11.5.1 Removing the System Board Shut down anad power off the system.
  • Page 144 7. Remove the NVRAM. See Section 11.6.1 “Removing the NVRAM Chip.” 8. Unplug the DC power, SCSI data, diskette data, and speaker/LED cables (if present) from the system board. FIGURE 11-27 11-26 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 145 SCSI data connector Speaker/LED cable DC power harness Diskette data connector Diskette data cable DC power connector Speaker/LED connector System Board Cable Connections FIGURE 11-27 9. Loosen the two captive Phillips-head screws that secure the system board to the rear of the chassis. FIGURE 11-28 SERIAL A/B Loosen captive screw.

  • Page 146: Replacing The System Board

    Lift the rear panel of the board slightly to make sure that the “foot” on the underside of the board doesn’t catch the metal edge of the chassis. c. Slide the board along the card guide until it is fully inserted. 11-28 SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 147 Card guide System board Installing the System Board FIGURE 11-30 2. Tighten the two captive Phillips-head screws that secure the board to the rear of the chassis. Do not overtighten these screws. See FIGURE 11-31 SERIAL A/B Tighten captive screw. Tighten captive screw.

  • Page 148: Setting Jumpers

    See Section 6.2 “Powering On the System.” 11.5.3 Setting Jumpers Note – This section applies to SPARCstation 4 systems only. There are two serial port jumpers on the system board. The jumpers are factory-set to RS423 mode (position A in ).

  • Page 149: Figure 11-32 Setting The Serial Port Jumpers

    4. If an Audio Module is installed, remove it. See Section 11.2.1 “Removing the Audio Module.” 5. Use needlenose pliers to move both serial port jumpers from position A to position B. FIGURE 11-32 RS423 RS232 Setting the Serial Port Jumpers FIGURE 11-32 6.

  • Page 150: Nvram

    NVRAM chip Locating the NVRAM Chip FIGURE 11-33 6. Hold the NVRAM chip carrier on both ends and lift it straight up to remove it. Gently wiggle the chip carrier as necessary. 11-32 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 151: Replacing The Nvram Chip

    7. Put the NVRAM in its chip carrier on an antistatic surface. 11.6.2 Replacing the NVRAM Chip 1. Locate the NVRAM chip on the system board. FIGURE 11-33 2. Carefully align the pins and insert the NVRAM chip into the socket; make certain that the notches on the socket and chip are aligned properly.
  • Page 152 11-34 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 153: Illustrated Parts Breakdown

    (CRUs) and their part numbers. “Illustrations of Selected CRUs” on page 1 “Replacement Parts List” on page 4 12.1 Illustrations of Selected CRUs through illustrate selected CRUs for the SPARCstation 4 and FIGURE 12-1 FIGURE 12-4 SPARC Xterminal 1 systems. 12-1...

  • Page 154: Figure 12-1 Selected Crus-System Unit

    CD-ROM Diskette drive drive (top) (bottom) SPARCstation 4 SPARCstation 4 system only system only Power supply System board Hard disk drive DSIMMs SPARCstation 4 system only Selected CRUs—System Unit FIGURE 12-1 12-2 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 155: Figure 12-2 Standard External Cables

    AC power cord Twisted-pair Ethernet cable 13W3 video cable Keyboard cable Standard External Cables FIGURE 12-2 SCSI cable (Sparcstation 4 system only) Optional External Cable FIGURE 12-3 Chapter 12 Illustrated Parts Breakdown 12-3...

  • Page 156: Replacement Parts List

    VSIMM Module 501-2576 NVRAM/TOD 525-1391 Main Logic Board (0-Mbyte, SPARCstation 4 System) 501-2549 Main Logic Board (0-Mbyte, SPARC Xterminal 1 System) 501-2540 545-Mbyte Internal Disk Drive 540-2443 1-Gbyte Internal Disk Drive 540-2560 12-4 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 157: Table 12-2 Part Number List-Miscellaneous Items

    501-2592 Type-5 Mouse and Pad 370-1398 Keyboard Cable 530-1442 Twisted-Pair Ethernet Cable 530-1871 13W3 Video Cable 530-1870 SunMicrophone II (SPARCstation 4 System Only) 370-1678 Part Number List—Miscellaneous Items TABLE 12-2 Item Description Sun Part No. Wrist Strap 250-1007 Antistatic Mat with Sun Logo...
  • Page 158 12-6 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 159: System Specifications

    “Physical Specifications” on page 1 “Input Power Requirements” on page 2 “Environmental Requirements” on page 4 Physical Specifications lists the physical specifications for the SPARCstation 4 system unit, TABLE A-1 keyboard, and optical mouse. Physical Specifications—SPARCstation 4 System TABLE A-1...

  • Page 160: Input Power Requirements

    3.5 (1.6) Mouse 2.0 (50) 4.0 (100) 3.0 (80) 0.3 (0.14) Input Power Requirements lists the input power requirements for the SPARCstation 4 system. TABLE A-3 Input Power Requirements and Power Dissipation—SPARCstation 4 System TABLE A-3 Parameter Specification Nominal Frequencies...

  • Page 161: Table A-5 Input Power Requirements And Power Dissipation-Sparcserver 4 System

    lists the input power requirements for the SPARC Xterminal 1 system. TABLE A-4 Input Power Requirements and Power Dissipation—SPARC Xterminal 1 TABLE A-4 System Parameter Specification Nominal Frequencies 50 Hz or 60 Hz nominal Nominal Voltage Range 100-120 Vac or 200-240 Vac (100-240 Vac Auto) Maximum Current AC RMS 0.75 A @ 100-120 Vac, 0.375 A @...

  • Page 162: Table A-6 Environmental Requirements

    -40 ˚C to 75 ˚C (-40 ˚F to 167 ˚F) at 20%–70% RH, noncondensing—IEC 68-2-1, 68-2-2 Humidity 95% RH, noncondensing—IEC 68-2-2, 68-2-3 Vibration 0.5 g peak, 5–500 Hz, 3 perpendicular axes—IEC 68-2-6 Shock 30 g peak, 11 milliseconds half-sine pulse— IEC 68-2-27 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 163: Input/Output Connectors And Ports

    “Attachment Unit Interface (AUI) Connector” on page 3 “Twisted-Pair Ethernet Connector” on page 4 “Serial Connector Ports A and B—SPARCstation 4 System Only” on page 4 “Audio Module Ports (Optional)” on page 5 “Audio Module Ports (Optional)” on page 5 “13W3 Video Connector”...

  • Page 164: Parallel Port Connector

    Parity 1. All signals are active low. Parallel Port Connector Parallel Port Connector FIGURE B-2 Pinout for Parallel Port Connector TABLE B-2 Description Description Strobe_out_l Auto_feed_out_l Data[0] Errpr_in_l Data[1] Init_out_l Data[2] Select_in_l SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 165: Attachment Unit Interface (Aui) Connector

    Pinout for Parallel Port Connector (Continued) TABLE B-2 Description Description Data[3] Ground Data[4] Ground Data[5] Ground Data[6] Ground Data[7] Ground Ack_out_l Ground Busy_out_l Ground Pe_in Ground Select_out Attachment Unit Interface (AUI) Connector Attachment Unit Interface (AUI) Connector FIGURE B-3 Pinout for Attachment Unit Interface (AUI) Connector TABLE B-3 Description Description...

  • Page 166: Twisted-Pair Ethernet Connector

    A – Transmit Data (TxDB) A – Transmit Data (TxDA) Transmit Clock DCE Source (TRxCA) A – Receive Data (RxDA) B – Receive Data (RxDB) A – Request to Send (RTSa) A – Receive Clock (RTxCa) SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 167: Figure B-6 Audio Module Connectors

    Pinout for Combined Serial Connector Ports A and B (Continued) TABLE B-5 Description Description A – Clear to Send (CTSa) Transmit Clock DCE Source (TRxCB) A – Data Set Ready (DSRa) B– Request to Send (RTSb) Signal Ground (GND) A – Data Terminal Ready (DTRa) A–Data Carrier Detect (DCDa) N/C –...

  • Page 168: Headphone Connector

    B.6.3 Audio Line-In Connector Audio Line-in Connector FIGURE B-9 This connector is used to connect external stereophonic sound sources such as a compact disc player or cassette tape player to the system. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 169: Microphone Connector

    This connector is used to connect the SunMicrophone™™ II (or other suitable microphone) to the system. Note – The SPARCstation 4 microphone port accepts stereophonic input; however, the SunMicrophone II is a monophonic device. Note also that the older SunMicrophone is not compatible with the SPARCstation 4 system.

  • Page 170: Keyboard/Mouse Connector

    2.The internal stereo CD connector is located on the module. 3.SunMicrophone II (370-1678) specifications. lists the SPARCstation 4 internal monaural speaker specifications. TABLE B-8 Internal Monaural Speaker Specifications TABLE B-8 Monaural Speaker Specifications Internal Speaker: Power Output 1.5 W average, 3 W peak Distortion 0.02%, typical at 1 kHz...

  • Page 171: 13W3 Video Connector

    13W3 Video Connector 13W3 Video Connector FIGURE B-12 13W3 Video Connector Pin Assignments TABLE B-10 Function Level Analog Green Analog Blue Analog Serial Read Vert Sync Sense <0> Ground Comp Sync Hort Sync Serial Write Sense <1> Sense <2> Ground Appendix B Input/Output Connectors and Ports...
  • Page 172 B-10 SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 173: Scsi Targeting

    TABLE C-2 the device is present. Note – On the SPARCstation 4 system, SCSI termination takes place on the system board when the internal disk is present. When assigning SCSI targets to external devices, make sure that none of the external targets conflict with the target automatically assigned to the internal disk drive.

  • Page 174: Table C-2 Scsi Targeting-Solaris 2.X (Sunos 5.X) Operating Systems

    0, 1, 2, 4, 5, 6* External CD-ROM drive 0, 1, 2, 4, 5, 6* * Do not assign target 3 or 6 to an external device if it is automatically assigned to an internal device. SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 175: Forth Diagnostics

    A P P E N D I X FORTH Diagnostics This appendix explains FORTH Diagnostic tests. The following topics and tests are described. “Running the FORTH Diagnostics” on page 1 “test <alias name>, test <device path>” on page 3 “test-all” on page 3 “watch-clock”...
  • Page 176 - test net (device-specifier is an alias) test scsi - test scsi(device-specifier is an alias) watch-clock (--) show ticks of real-time clock watch-net (--) - monitor broadcast packets using auto-selected interface SPARCstation 4/Xterminal 1 Service Manual • January 1995...

  • Page 177: Test-All

    Displaying FORTH Diagnostics CODE EXAMPLE D-1 watch-aui (--) - monitor broadcast packets using AUI interface watch-tpe (--) - monitor broadcast packets using TPE interface watch-net-all (--) - monitor broadcast packets on all net interfaces probe-scsi (--) - show attached SCSI devices probe-scsi-all (--) - show attached SCSI devices for all host adapters...

  • Page 178: Watch-Net, Watch-Aui, Watch-Tpe, And Watch-Net-All

    The AUI port is first tested by transmitting packets and checking for “no carrier” or response packets. If the AUI test fails, the TPE port is then tested. SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 179 Entering causes this automatic selection to take place. You may see these watch-aui messages: ok watch-aui Using AUI Ethernet Interface Lance register test -- succeeded Internal loopback test -- succeeded External loopback test -- Lost Carrier (transceiver cable problem?) send failed. You may also control the selection of Ethernet interfaces to monitor by using specific commands.
  • Page 180 SCSI host adapters installed in the system. The first identifier listed in the display is the SCSI host adapter address in the system device tree, followed by the SCSI device identification data. SPARCstation 4/Xterminal 1 Service Manual • January 1995...
  • Page 181 For example: ok probe-scsi-all /iommu@0,100000000/sbus@0,10001000/espdma@5,8400000/esp@5,8800000 Target 1 Unit 0 Disk CONNER CP30548 SUN0535AEBX93081QTT Target 3 Unit 0 Disk CONNER CP30548 SUN0535AEBX93081QTT Target 6 Unit 0 Removable Read Only device TOSHIBA CD-ROM XM-4101TA289310/16/93 D.1.6 module-info This command reports back the system CPU information including: the microprocessor name, its revision, the speed at which it is running in megahertz, and the SBus speed in megahertz.
  • Page 182 FORTH Diagnostic tests. Returning to the Old-Style Sunmon Compatibility Mode Prompt If you need to return to the > prompt from the FORTH Monitor, type old-mode the ok prompt. ok old-mode > SPARCstation 4/Xterminal 1 Service Manual • January 1995...
