3 - 6

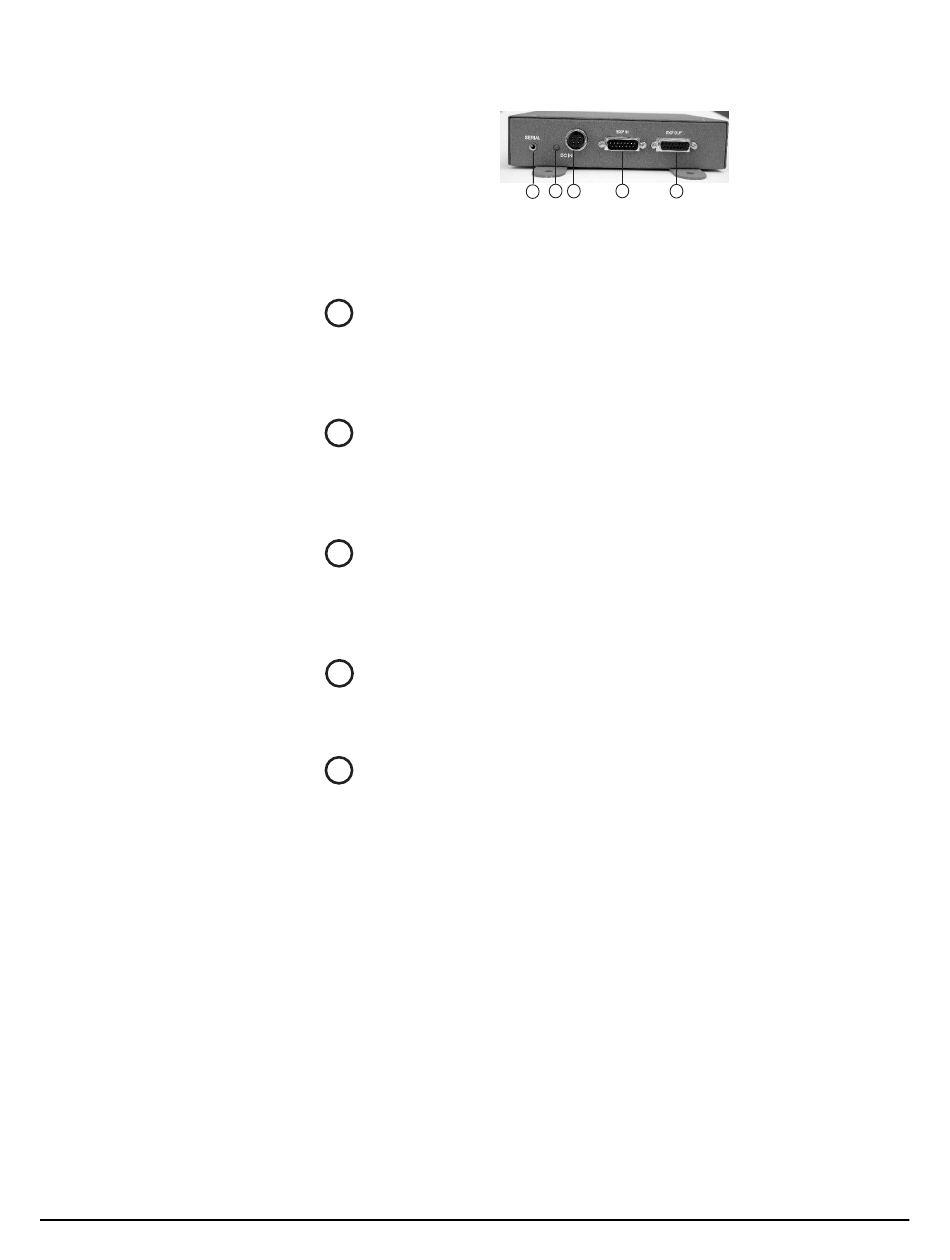

SPLITTER REAR PANEL

Serial Data Connector

1
This 3.5 mm (1/8 inch) tip-ring-sleeve (TRS) connector is used for upgrading
the firmware in the splitter. It will typically be unused.

Power Indicator

2
This green LED indicates that the splitter is receiving power from the external
power supply.

DC IN Power Connector

3
This connector is used to locally power the antenna splitter with the supplied
universal power supply. Use of local power is required.

EXP IN Connector

4
This male DB-15 connector is reserved for future use.

EXP OUT Connector

5
This female DB-15 connector is reserved for future use.
CONNECTING AN ANTENNA SPLITTER TO THE ECLIPSE BASE AND TO
TRANSCEIVER/ANTENNAS
After the connections have been made between the splitter and the
transceiver/antennas, make sure that the data LED's are lit at the individual ports
on the antenna splitter. Also make sure that the both the green power LED and
the yellow data LED are lit on each transceiver/antenna. If all are properly lit,
then the connection has been successfully made and the coverage zones will be
active and will support beltpacks. If the transceiver antennas are not lit, check the
connections.
1 2 3 4 5
1 Serial Data Connector 4 Reserved for future use
5 Reserved for future use
2 Power Indicator Light
3 DC IN Power Connector
