E C L I P S E W I R E L E S S C O M M U N I C A T I O N S Y S T E M

SPLITTER FRONT CONNECTOR PANEL

1

1 Base Connection Indicator Light

2 Matrix Connector
3 Splitter-to-Transceiver/Signal Indicator Lights (5)

4 Transceiver/Antenna Connectors (5)

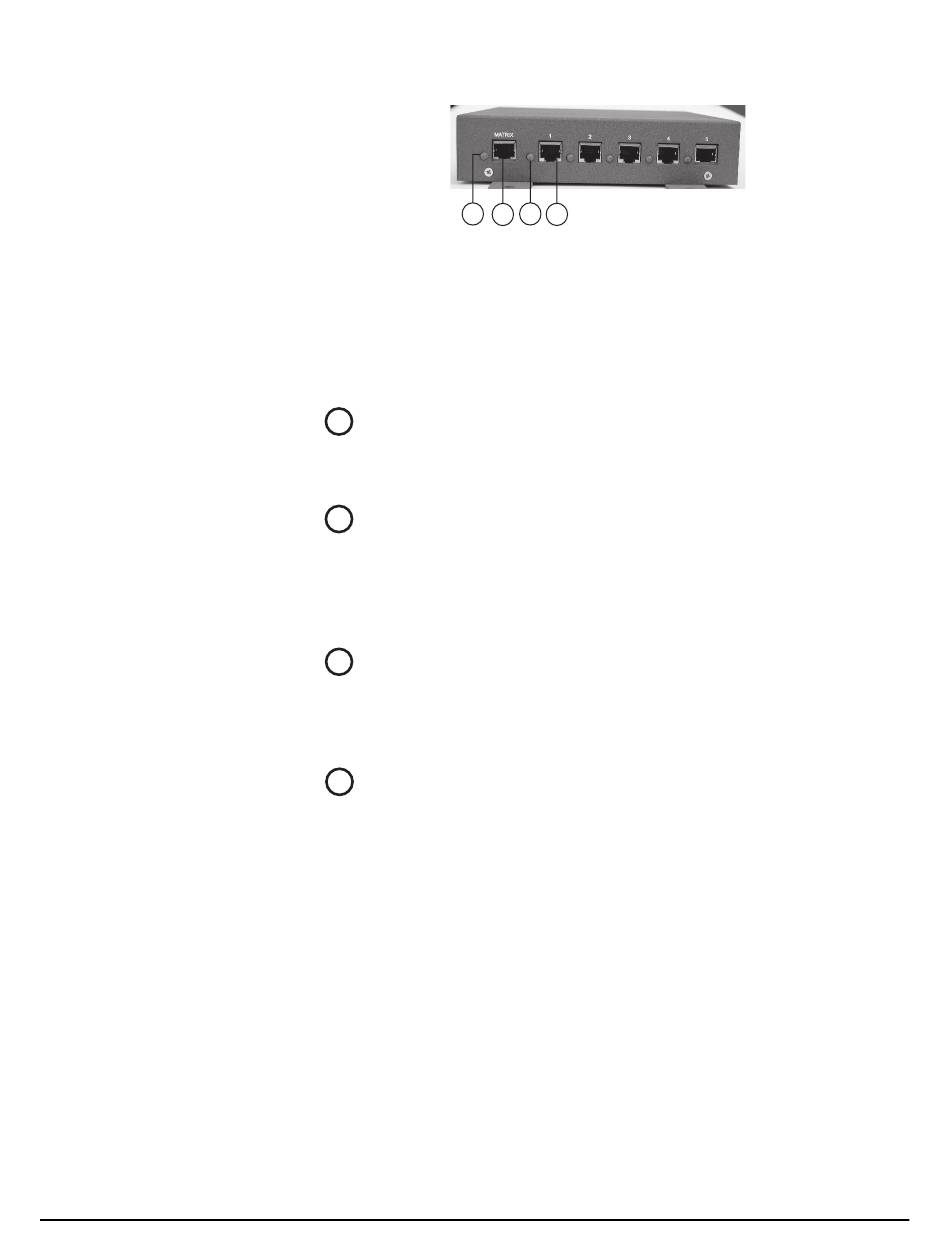

Figure 3-3: Eclipse Splitter Front Connector Panel
Base Connection Indicator Light
1
This yellow light indicates that the splitter is receiving data from the Eclipse base.

Matrix (Eclipse Base) Connector

2
This RJ-45 connector accepts a 4-pair data cable from the Eclipse matrix E-Que
port. This cable can be up to 1,000 meters in length if 24 AWG cable is used or
up to 500 meters if 26 AWG cable is used.

Splitter-to-Transceiver/Antenna Signal Indicator Light

3
These yellow lights indicate that a connection from the Eclipse base is available
to the particular transceiver connected to that port.
Transceiver/Antenna Connectors
4
These five RJ-45 connectors are used to connect up to five remote
transceiver/antennas to the splitter, and via the splitter to the Eclipse matrix.
Each of these cables can be up to 1,000 meters in length if 24 AWG cable is used
or up to 500 meters long if 26 AWG cable is used.
2 3 4
3 - 5
