Item
8
Timeslot Number (used by Active Antenna)
9
Received Signal Strength Indication (digital indication). This is an
arbitrary number in the range 0-52 and, therefore, significant only in
the context of a particular installation.
10
Block error rate for received frames.
From these displays, press button C to return to the status menu.

PAGE OPTIONS

The Page Options on the main menu give access to the page lock and key options
menus.

PAGE LOCKING

When you are looking at a normal display you are looking at one of up to six
numbered pages with three key assignments on each. Eclipse supports up to
eighteen key assignments. The page icon indicates the page number of the
current page. The setting of page number is global to the system and only one
page can be current at a time.
The significance of upper and lower case text on the display is explained in the
Operational Information.
To display a different page, change to menu mode and select Page Options. This
will display the page options menu.

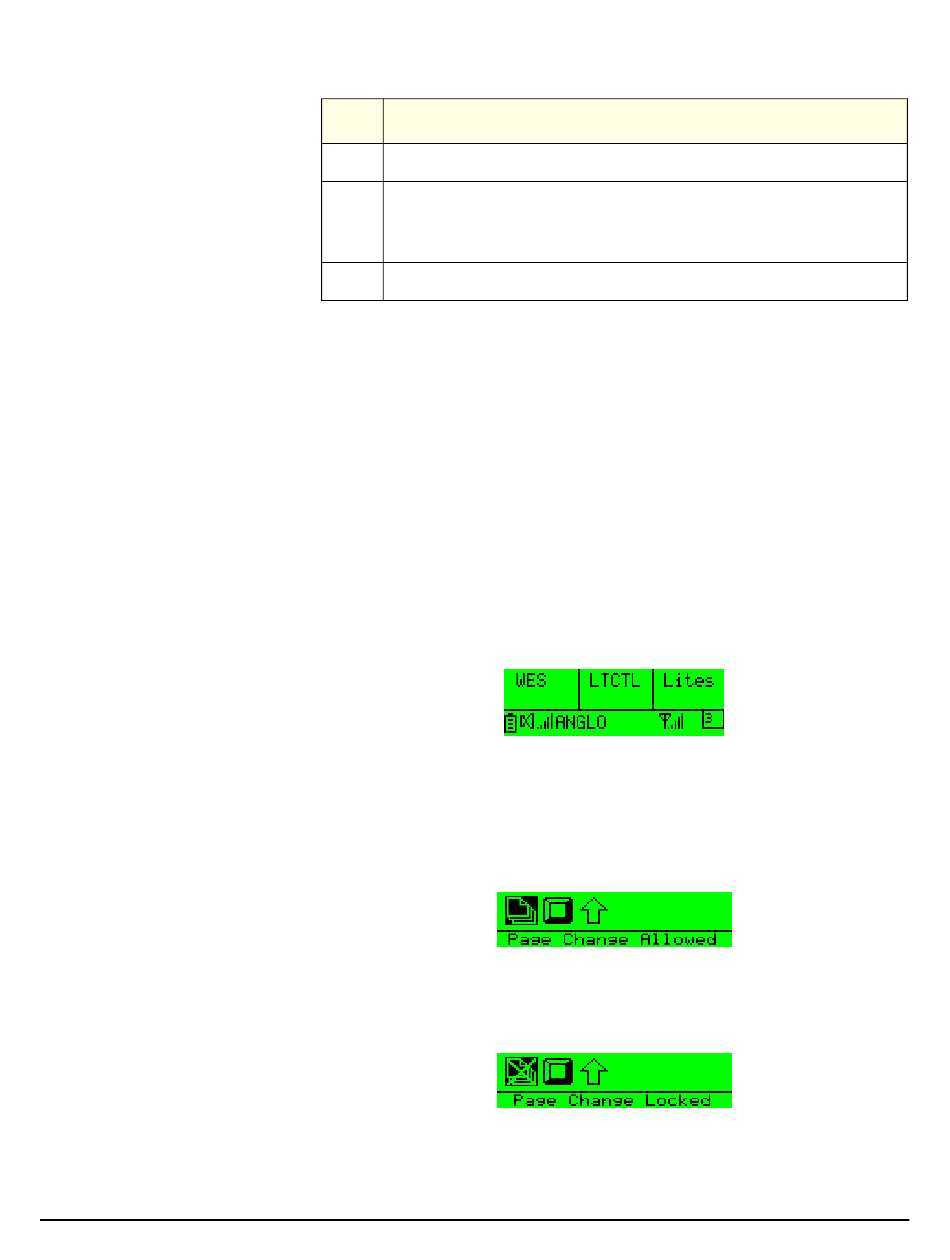

Use button C to change the page status from page change allowed to page locked
to prevent the page being changed.

KEY OPTIONS

Table 1: Connection Information
Description
2 - 1 5
