Backlit LCD Display

1
The display screen shows the various communications routes and other
information relevant to the beltpack. The backlighting comes on when any
action is taken with the scroll or enter buttons, and remains on for approximately
10 seconds. During the answer-back process, the label of the source is displayed
in the lower center of the display.

Left and Right Scroll Buttons

2
When you press the left and right scroll buttons, the beltpack's display screen
scrolls to the left or right, displaying "pages" of information, and menu options
on those pages. These buttons work in conjunction with the enter button,
described below.

Enter/Answer-Back Button

3
The enter/answer-back button has two primary purposes. When you view the
menus on the beltpack's display screen, you can select an option by pressing this
button and you can exit a menu by selecting the up-arrow icon. In this way, the
button serves as an enter key.
During normal beltpack operation it functions as the answer-back key, with
which you can activate a talk to an unassigned source when the answer-back
"talk" light illuminates to indicate an incoming call (see description in "Beltpack
Top Control Section" above).

BELTPACK REAR/BATTERY SECTION

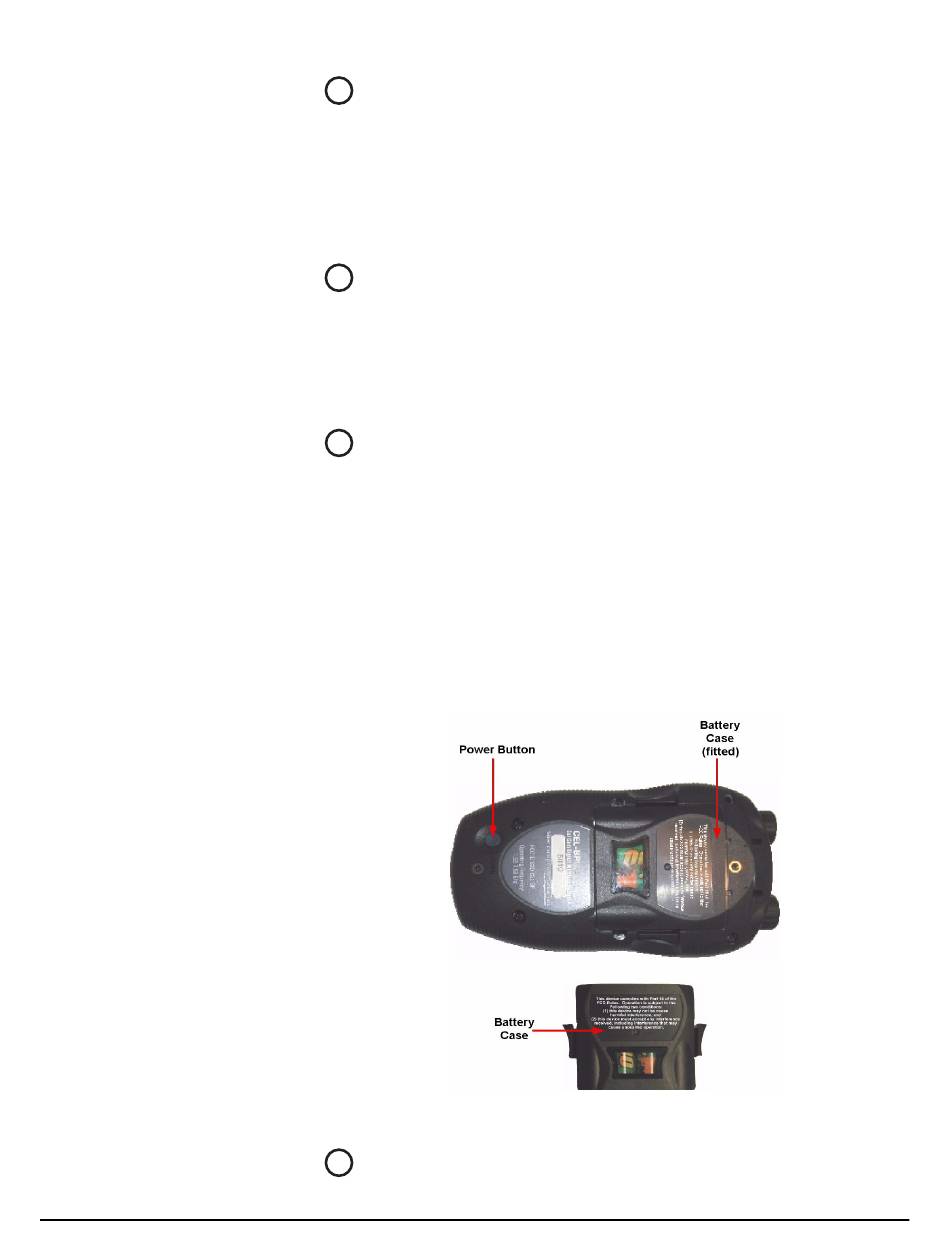

Figure 1-5: View of Back of Beltpack

Power Button

1
