E C L I P S E W I R E L E S S C O M M U N I C A T I O N S Y S T E M
To talk or listen on a channel, press and hold the knob down while speaking or
listening from the headset. While you hold the knob down, your voice transmits
on that channel. When you release the knob, your voice no longer transmits.
To "latch" a knob "on" for hands-free use, quickly tap the knob. Another quick
tap releases the latch.

Level-Control Lights, Channels A and B

2
Three level-control lights are located next to each talk knob. The first light is
green, the second is yellow, and the third is red. With the knob turned fully
counterclockwise, only the green LED is lit to indicate low volume. Turning the
knob clockwise, low audio level is heard in the headset. Turning the knob more,
both the green and yellow LED's light, and higher audio level is heard. This
continues through the maximum audio level, indicated by only the red light
being lit.

Talk/Listen Lights, Channels A and B

3
The green "listen" light blinks whenever a beltpack receives audio from a source
whose label is displayed on the beltpack's LED screen. When you press the talk
button to "talk," the green light then illuminates steadily and the red light also
illuminates.

Answer-Back Lights

4
The green and red lights labeled "answer" illuminate when a source who is not on
the beltpack's presently selected communication routes tries to initiate a call to
the beltpack. The red light flashes when a call is coming in and when the
beltpack is communicating.
By pressing the answer-back button on the front of the beltpack you can answer
an incoming call. The green LED then lights steadily and the red LED flashes
until the conversation is ended by again pushing the answer-back button.

BELTPACK FRONT/DISPLAY SECTION

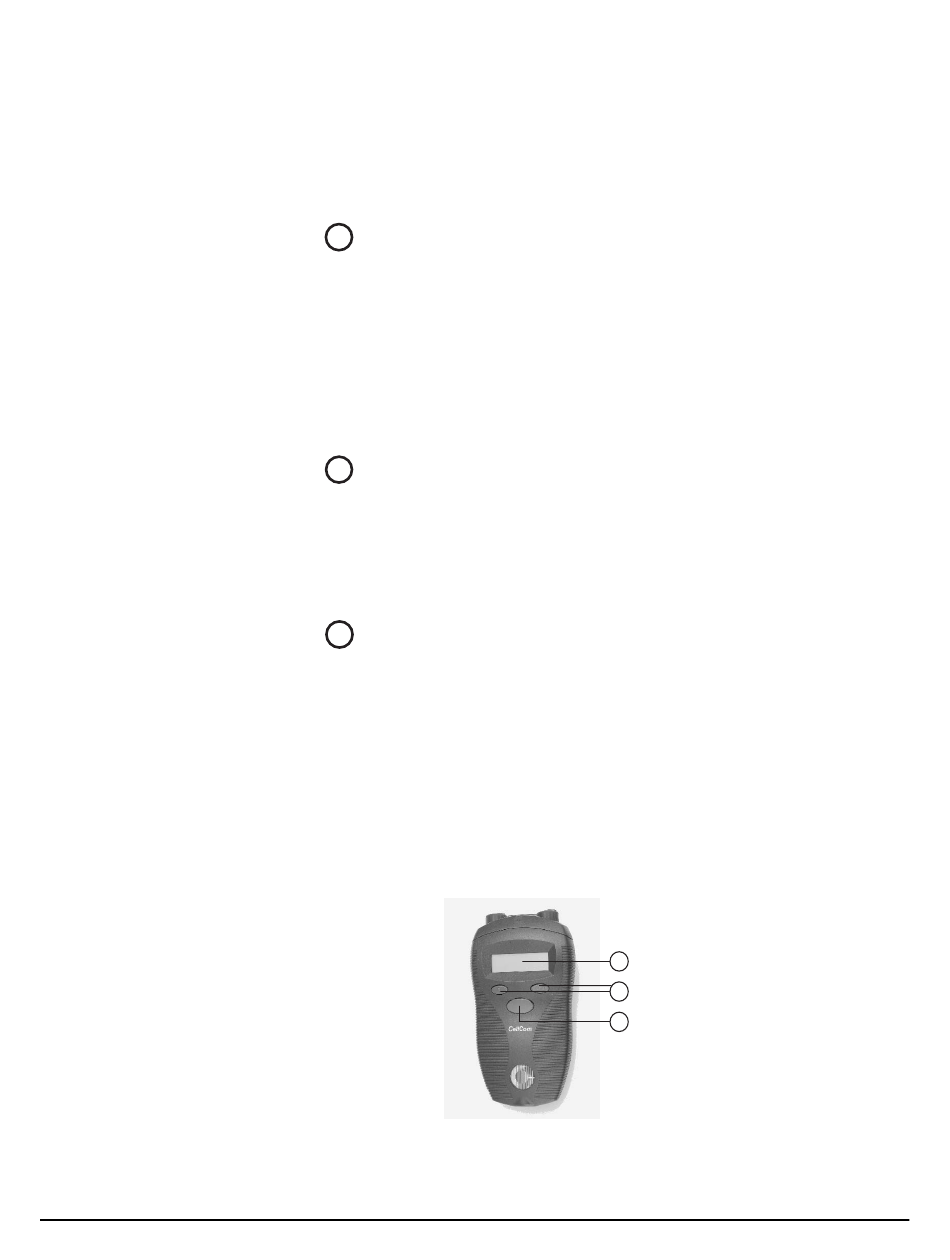

Figure 1-4: View of Front of Beltpack
1 Backlit LCD Display
2
Left and Right Scroll Buttons
Enter/Answer-Back Button
3
1 - 3
