E C L I P S E W I R E L E S S C O M M U N I C A T I O N S Y S T E M
TOP LEVEL MENU
The top level menu structure is displayed when the scroll keys are held down as
described above.

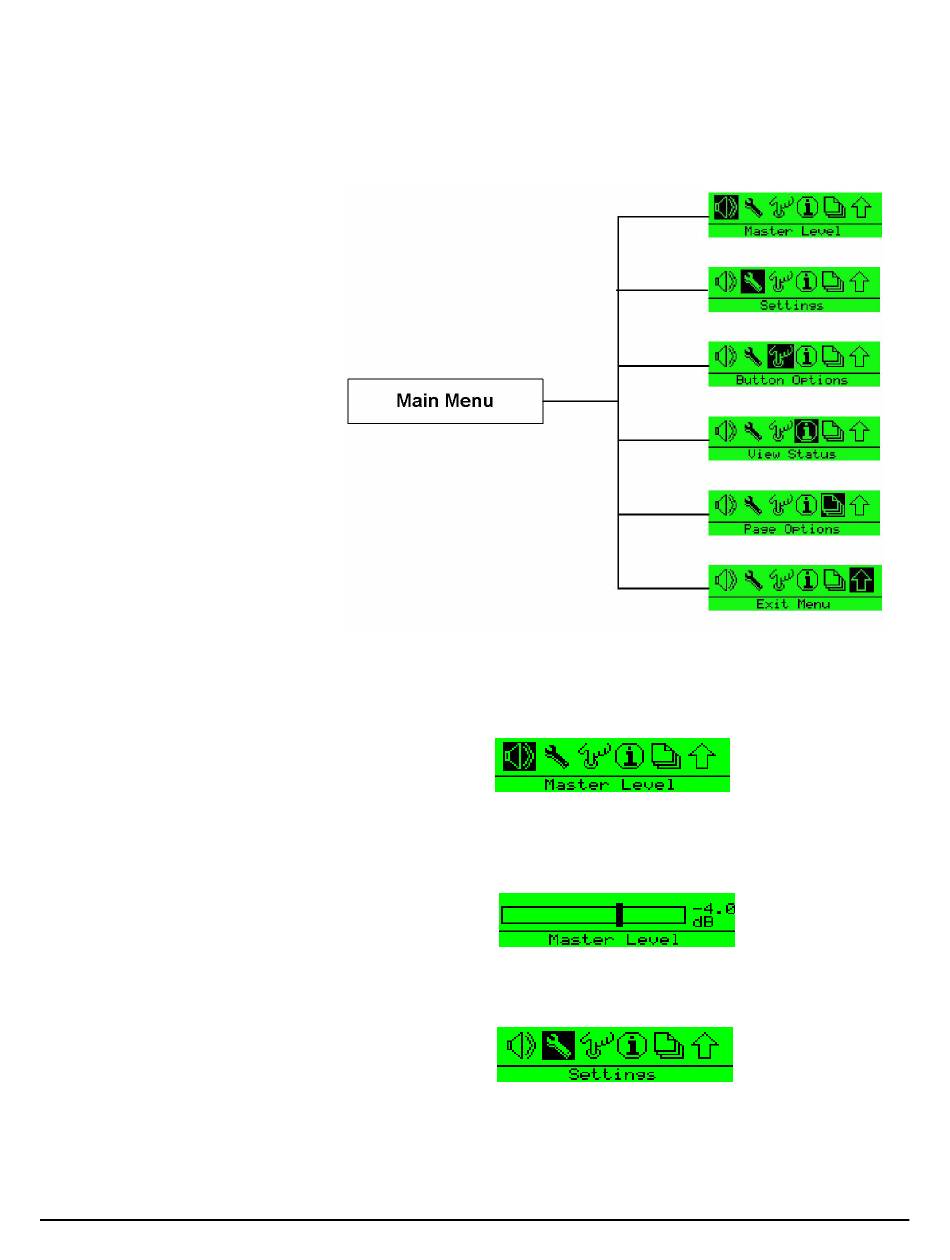

Figure 2-1: Top Level Menu Structure
• Main programming menu showing the Master Level option selected.
This option allows the master volume level to be set in the range -12dB to
0dB using the scroll buttons.
• Main programming menu showing the Settings option selected.
• Main programming menu showing the Button Options selected.
2 - 3
