2 - 1 4
• The Status (Information) menu showing the Connection Information icon
highlighted.
When this icon is selected the display appears. The components of this
display are laid out in the format which is specified for this technology and
appear as follows:

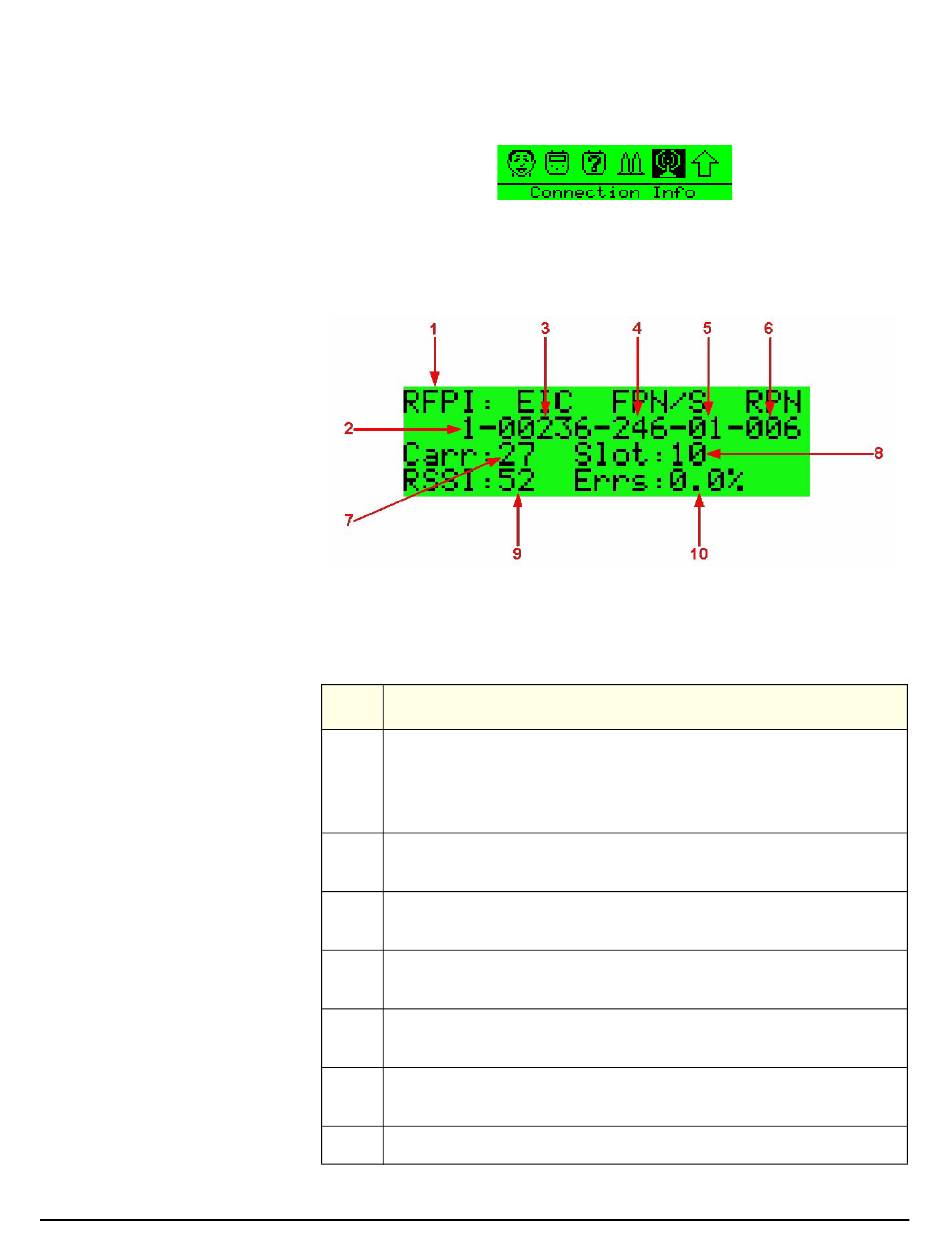

Figure 2-3: Connection Information Display
Item
1
Radio Fixed Part Identifier. This title refers to the whole of the
second line of text. The RFP is the Radio Fixed Part to which the
Beltpack is currently connected. (Much of this line of text is not
unique to one Active Antenna.)
2
This is the PARK (Primary Access Rights Key) number (reserved for
future use.)
3
The abbreviation stands for Equipment Installer Code and the
number on the second line is the EIC number.
4
Fixed Part Number. This and item 6 below are unique to the
particular Active Antenna.
5
Fixed Part Sub-Number. This is effectively the system number which
identifies which matrix the Beltpack is registered with.
6
Radio Fixed Part Number. This is the identifier of the Active
Antenna on the system.
7
Carrier Number (both Active Antenna and Beltpack)
Table 1: Connection Information
Description
