1
You can access six separate
audio routes from a
beltpack.
Depress the channel A or B
talk button to select an
audio route. Turn the button
to adjust volume.
E C L I P S E W I R E L E S S C O M M U N I C A T I O N S Y S T E M
OPERATING THE ECLIPSE
WIRELESS BELTPACK

OVERVIEW OF THE WIRELESS BELPACK

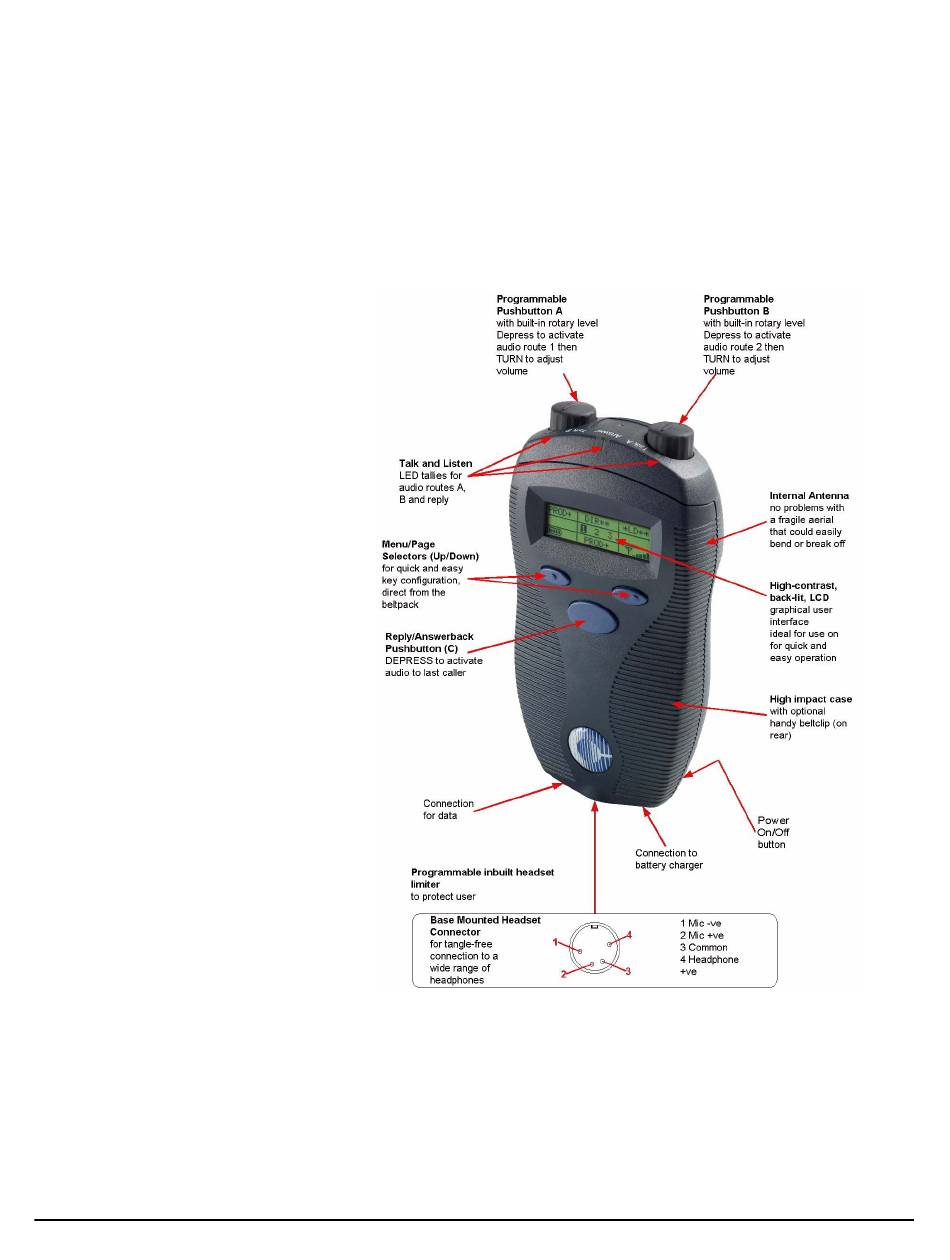

Figure 1-1: Overview of Beltpack Functions
An Eclipse wireless beltpack gives you simultaneous access to six channels of
talk/listen communication, with the ability to switch among them as desired.
Any or all of these six routes may be kept open during use. Incoming volume
levels ("listen levels") may be individually adjusted using the two push-to-talk
knobs, so that one conversation can be monitored in the background while a
primary conversation is held.
1 - 1
