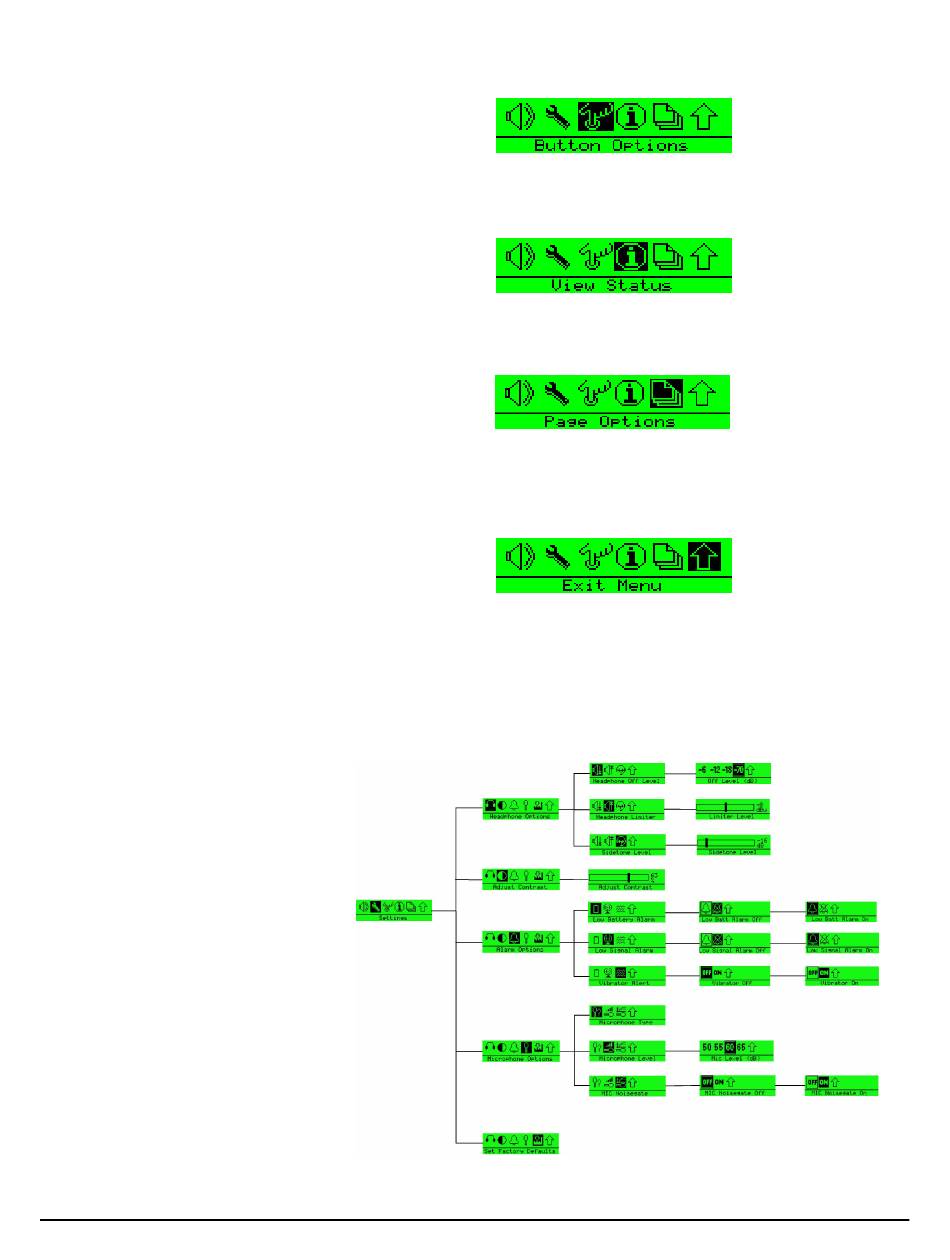

• Main programming menu showing the Information (Status) option selected.
• Main programming menu showing the Page Options selected.
• Main programming menu showing the Exit (from Program mode to normal
operation) option selected.

SETTINGS MENUS

The settings menus allow access to most of the beltpack configuration options.
The basic menu structure is given in the figure below.
Figure 2-2: Beltpack Settings Menu Structure
2 - 4
E C L I P S E W I R E L E S S C O M M U N I C A T I O N S Y S T E M
