7

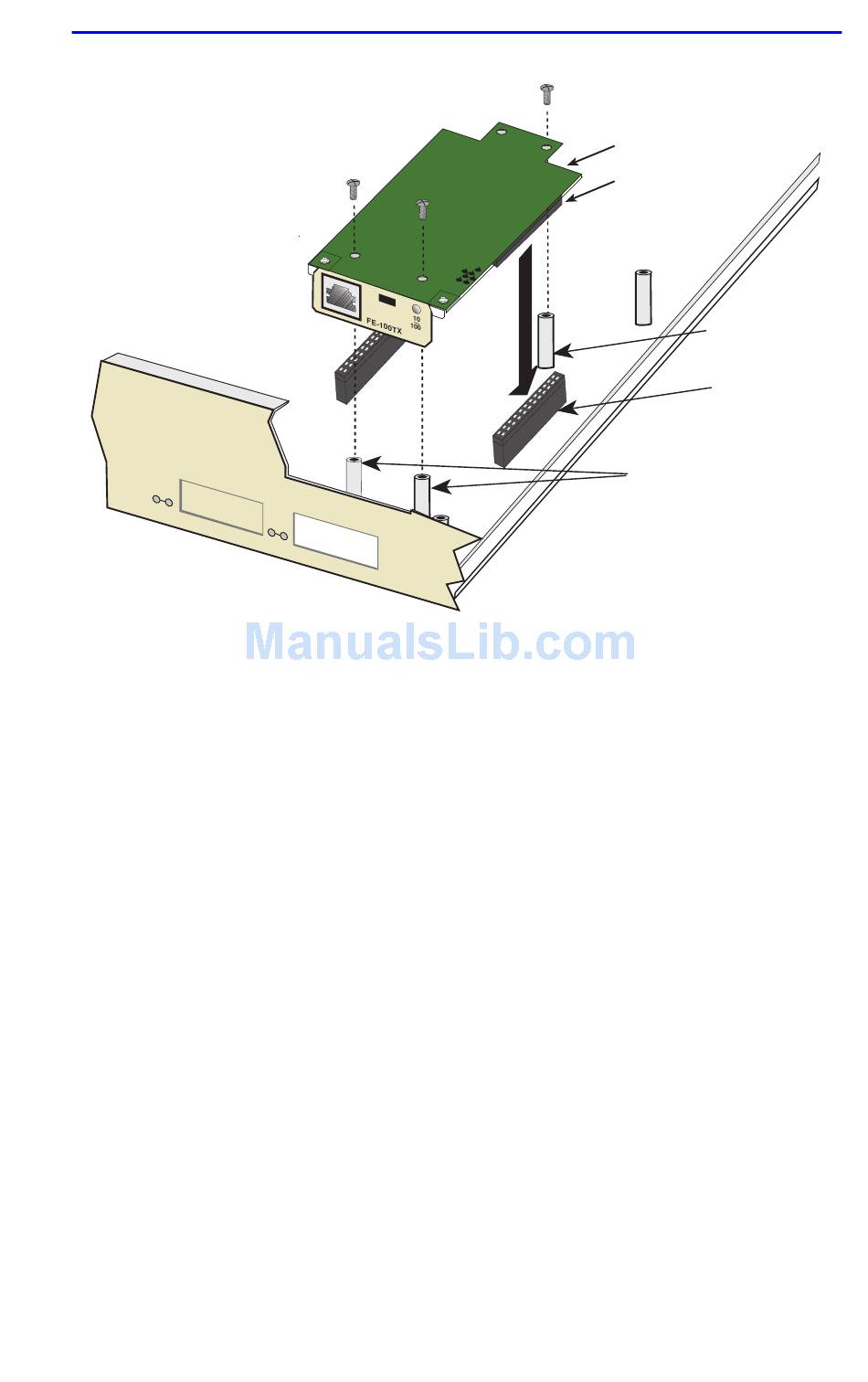

Figure C-4 Installing the Fast Ethernet Interface Module
5. Press down firmly on the Fast Ethernet Interface Module until the pins
slide all the way into the motherboard connector. Ensure that the Fast
Ethernet Interface Module seats flush on the standoffs.
6. Secure the Fast Ethernet Interface Module with the screws saved in
steps 1 and 2.
7. Installation is complete.
6H122-08 User's Guide
Installing Optional Fast Ethernet Interface Modules
8
2159-33
Module
Module
Connector
Rear
Standoff
Motherboard
Connector
Front
Standoffs
C-7
