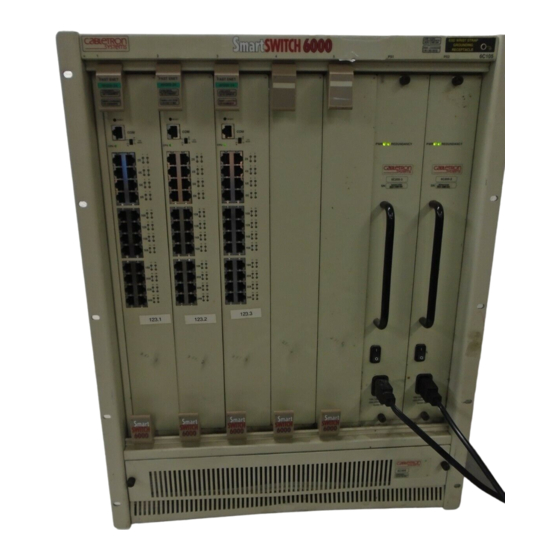

Cabletron Systems SmartSwitch 6000 User Manual
  1. Manuals
  2. Brands
  3. Cabletron Systems Manuals
  4. Software
  5. SmartSwitch 6000
  6. User manual

Cabletron Systems SmartSwitch 6000 User Manual

Enterasys smartswitch 6000: user guide
Hide thumbs Also See for SmartSwitch 6000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installer and User Manual
SmartTrunk
User's Guide
9032267-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSwitch 6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems SmartSwitch 6000

Summary of Contents for Cabletron Systems SmartSwitch 6000

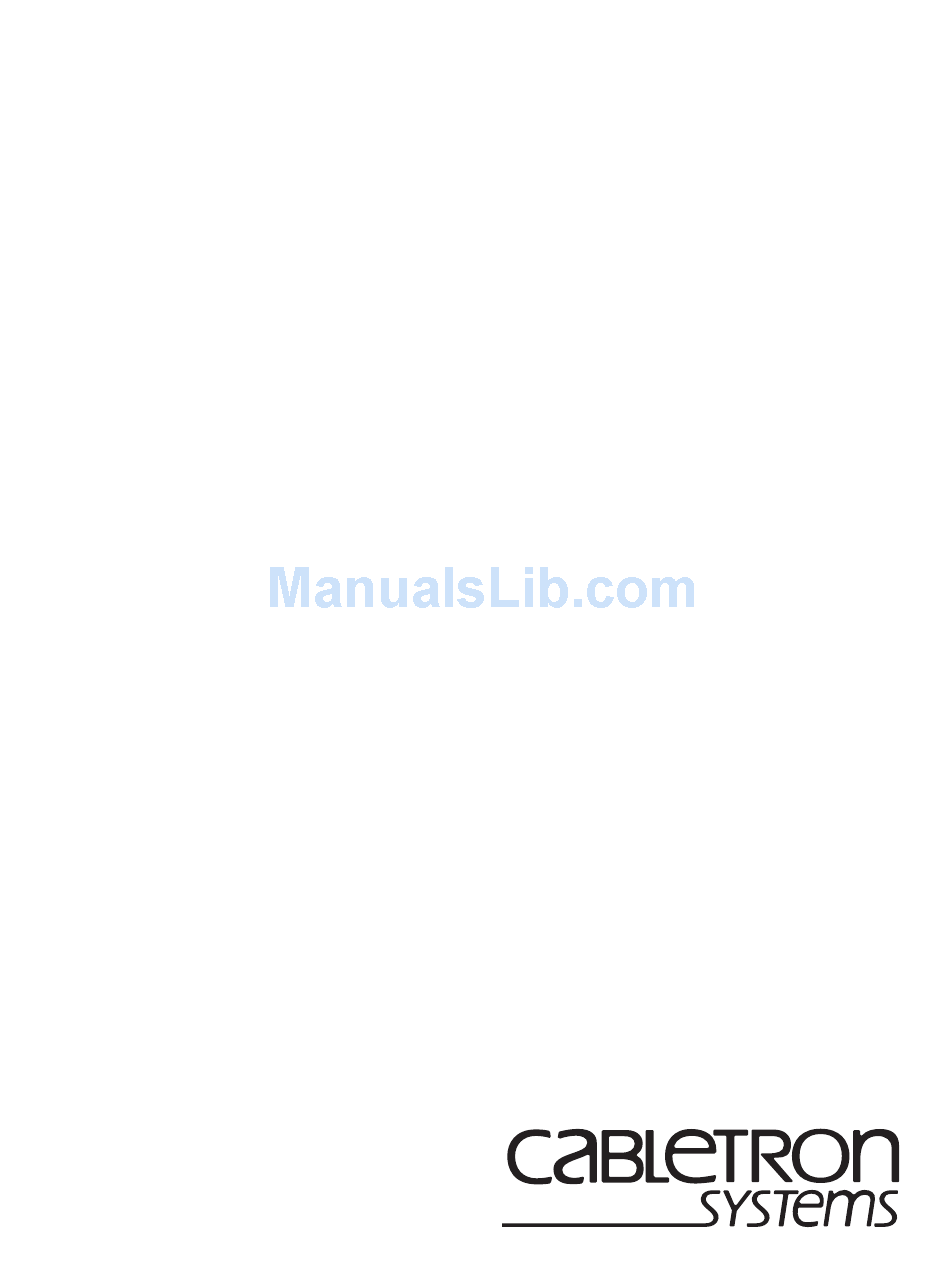

  • Page 1 SmartTrunk User’s Guide 9032267-04...
  • Page 3 Notice Notice Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice.

  • Page 4: Fcc Notice

    Notice FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 5: Declaration Of Conformity Addendum

    Declaration of Conformity Application of Council Directive(s): Manufacturer’s Name: Manufacturer’s Address: European Representative Name: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives. Mr.
  • Page 6 Notice...

  • Page 7: Table Of Contents

    Chapter 1 Introduction SmartTrunking... 1-1 Packet Distribution ... 1-2 Compatibility - DEC Hunt Groups and SmartSwitch Router (SSR) ... 1-3 Chassis with Multiple SmartTrunking Groups... 1-3 SmartTrunk and Port Connections ... 1-4 Getting Help ... 1-7 Chapter 2 SmartTrunk Configuration SmartTrunk Configuration Rules...
  • Page 8 Contents...

  • Page 9: Chapter 1 Introduction

    SmartTrunk divides network traffic across multiple ports in parallel to provide additional throughput. The SmartTrunk application can be used with any of Cabletron Systems’ switch modules (except ATM modules). SmartTrunking A physical port configured in a SmartTrunk Group must: •...

  • Page 10: Packet Distribution

    Introduction Packet Distribution Packet distribution is based on hardware family type: SmartSwitch 6000 Packet distribution among the ports in the group is accomplished by adding the last two bytes of the destination and source MAC addresses and then applying the modulus operator to the sum using the number of active ports in the group.

  • Page 11: Compatibility - Dec Hunt Groups And Smartswitch Router (Ssr)

    Compatibility - DEC Hunt Groups and SmartSwitch Router (SSR) SmartTrunking for the SmartSwitch 6000 and the SmartSwitch 9000 is based on, and compatible with, DEC Hunt Groups. With the SSR adopting the DEC Hunt Groups protocol, this will allow all Cabletron equipment to be trunked to each other.

  • Page 12: Smarttrunk And Port Connections

    Spanning Tree protocol. The SmartTrunk application only acknowledges its neighboring switches. If a user goes through several switch hops, then loops back to the first switch hop (creating a loop), a common connection between two switches (any two) will go into a Blocking state (see Figure 1-2).
  • Page 13 SmartSwitch 6000 Chassis 9C106 Smart -216 Smart -216 SmartSwitch 2200 C P U 2E43-27 Figure 1-2. SmartTrunk with a Network Loop Path costs are considered by SmartTrunk when disabling a looped configuration. SmartTrunk will place the higher path cost trunk group into a Blocking state.
  • Page 14 Introduction Active Trunk Links The number of links participating in the trunking group. If all the ports in the trunking group are the same speed and configured to the same duplex mode, the equation is: If the ports in the trunking group are different speeds, the equation is: Path Cost 1 + Path Cost 2 + Path Cost 3 + Path Cost n...

  • Page 15: Getting Help

    When this configuration is used, only one module’s SmartTrunk Group will be active. The second path will block and serve as a backup to the currently active NOTES path. (The active trunking path will be determined by the module providing the lowest path cost.) Refer to the release notes for image-specific restrictions while using SmartTrunking.
  • Page 16 Introduction • The device history (i.e., have you returned the device before, is this a recurring problem, etc.) • Any previous Return Material Authorization (RMA) numbers...

  • Page 17: Smarttrunk Configuration

    NOTE Failure to follow these rules will produce poor network performance. 1. There is a limit of six (6) SmartTrunk groups per switch. There are no port number restrictions per group. 2. SmartTrunking ports should be configured to Full Duplex.
  • Page 18 SmartTrunk Configuration 7. Backplane ports (INB, FNB, FTM, etc.) on chassis-based switches cannot be configured as SmartTrunk ports and are not eligible to participate in trunking. 8. An end station plugged directly into a port configured for SmartTrunking will not be allowed to communicate. No traffic will flow into the port. 9.

  • Page 19: Smarttrunking Configuration Screen

    9H422-12 9H422-12 SmartTrunking Configuration Screen To select the SmartTrunking Configuration Screen from the Module Configuration Menu: 1. Use the arrow keys to highlight the SmartTrunking Configuration option. 2. Press the ENTER key. The SmartTrunking Configuration Screen, Figure 2-3, displays. Figure 2-2. ILLEGAL CONFIGURATION (Example 2) SmartTrunk Configuration Group A...
  • Page 20 SmartTrunk Configuration Device Type: 2E42-27 SmartTrunk Group: SmartTrunk Logical Port: Port State ---------------- SmartTrunk State: [ENABLED] Add/Remove Group: Display Group: SAVE UPDATE The following section briefly explains each field on the SmartTrunking Configuration Screen. SmartTrunk Group The title of the group that is active in the screen. SmartTrunk Logical Port SmartTrunk ports are a collection of physical ports.
  • Page 21 fill with SmartTrunk names found on the device. Users may either type in the name to be deleted or use the SmartTrunk Group field to step through the list of names found on the switch. Display Group A list of the SmartTrunk groups available on this device. Selecting a group updates the table in the center of the screen.

  • Page 22: Exiting The Smarttrunking Configuration Screen

    SmartTrunk Configuration Port When State is: • ADD - Displays the ports available to add to the displayed group. Ports assigned to other trunk groups will not show up in this list because they are not available to add. • REMOVE - Displays a list of ports currently assigned to the active SmartTrunk group.

  • Page 23: Appendix A Helpful Hints For Configuring Smarttrunk

    Helpful Hints for Configuring SmartTrunk NOTE This procedure must be completed on both switches participating in Trunking. 1. Navigate through Local Management to the SmartTrunking Configuration Screen. 2. Using the arrow keys, move the cursor to the Add/Remove Group field. 3.

  • Page 24: Creating A Second Trunk Group

    Helpful Hints for Configuring SmartTrunk 9. After all ports have been added, highlight the SmartTrunk State field. Press the Spacebar to select ENABLED. In order to minimize the interruption to network traffic while trunking is being NOTE configured, it is recommended that a port between the switches remains outside the group until the trunking links are active.

  • Page 25: Removing An Entire Trunk Group

    Removing an Entire Trunk Group To remove an entire trunk Group: 1. Using the arrow keys, highlight the Group: [ADD/DELETE] field (on the same line as the Add/Remove Group field). Press the Spacebar to select [DELETE]. 2. If the name of the group to be deleted doesn’t appear on the Add/Remove Group field, type the name of the SmartTrunk group you wish to delete.
  • Page 26 Helpful Hints for Configuring SmartTrunk...

  • Page 27: Appendix B Mibii Logical Interface Behavior

    MIBII Logical Interface Behavior Logical/Virtual Port When a SmartSwitch creates a MIBII interface or logical port to represent the SmartTrunk group, other SmartSwitch features will work with the logical port. The only exception is RMON, which works on physical ports. NOTE Virtual and Logical refer to the same type of port.
  • Page 28 MIBII Logical Interface Behavior • VLANs When a port is added to a trunk, the new trunk does not assume any VLAN information that was on any of the trunks physical port. The physical port’s VLAN information will remain unchanged, but never referenced. The user will need to add VLANs to the new logical port.
  • Page 29 • Counters ifInOctets,etc. The counters for each port in the trunk are added together and returned. • ifSpecific This table includes an instance for the virtual port with an OID of: 1.3.6.1.4.1.52.3.11.13 • MIBII Extensions ctifConnectionType The virtual port will appear here with an OID of: 1.3.6.1.4.1.52.3.11.13 •...
  • Page 30 MIBII Logical Interface Behavior...
