B.3

FE-100F3

The FE-100F3 shown in
supports single mode fiber optic cabling. Specifications for the FE-100F3
are listed in Table B-2
Cable Type
8/125 µm fiber
12/125 µm fiber
The transmitter power levels and receive sensitivity levels listed
NOTE
are peak power levels after optical overshoot. A peak power
meter must be used to correctly compare the values given
above to those measured on any particular port. If power levels
are being measured with an average power meter, add 3 dB to
the measurement to compare the measured values to the
values listed above.
6H122-08 User's Guide

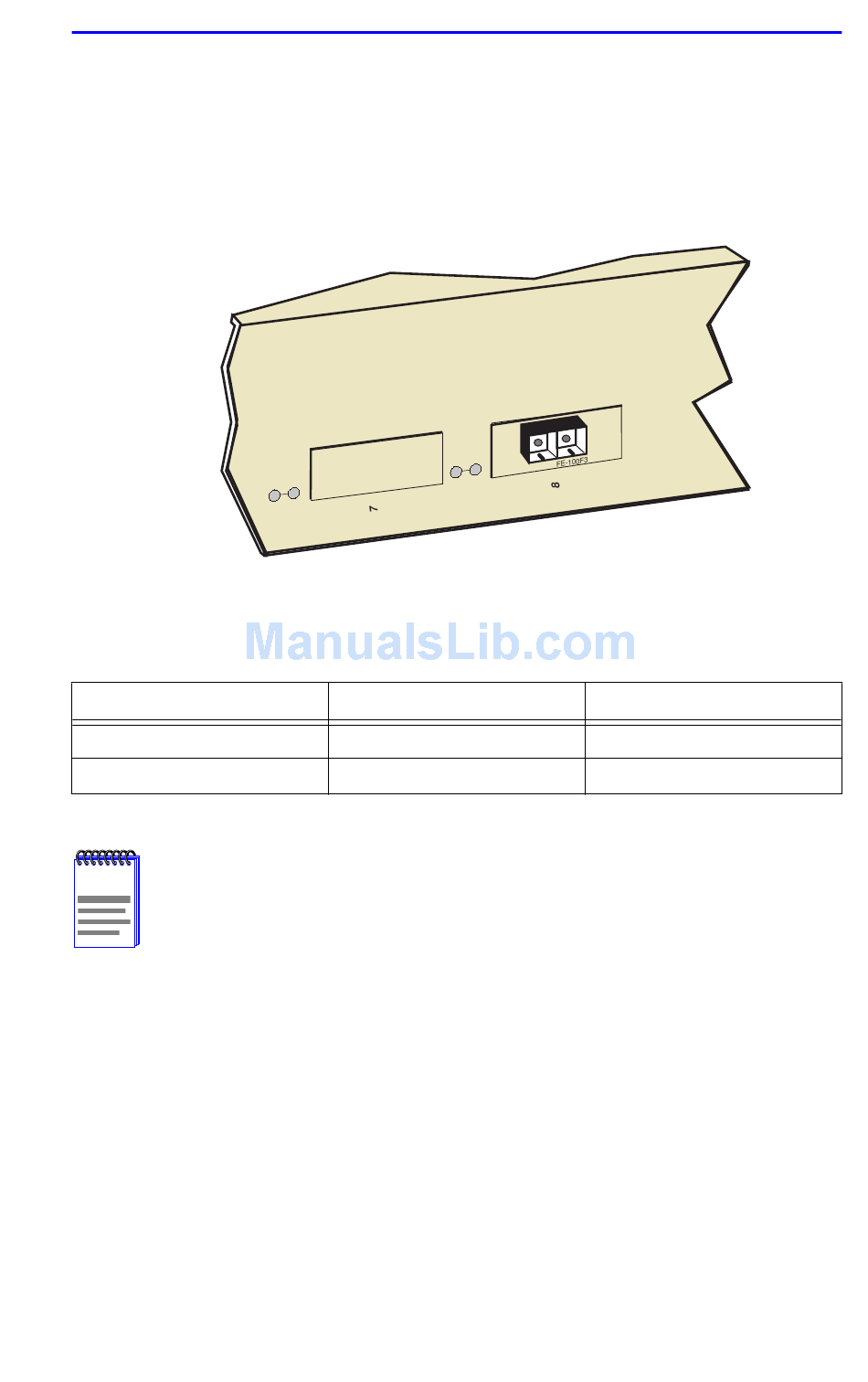

Figure B-3 uses an SC style connector that
below.
Figure B-3 FE-100F3
Table B-2 Transmitter Power
Worst Case Budget
>10.0 dB
>10.0 dB
FE-100F3
2159-31
Typical Budget
<10.0 dB
<10.0 dB
B-3
