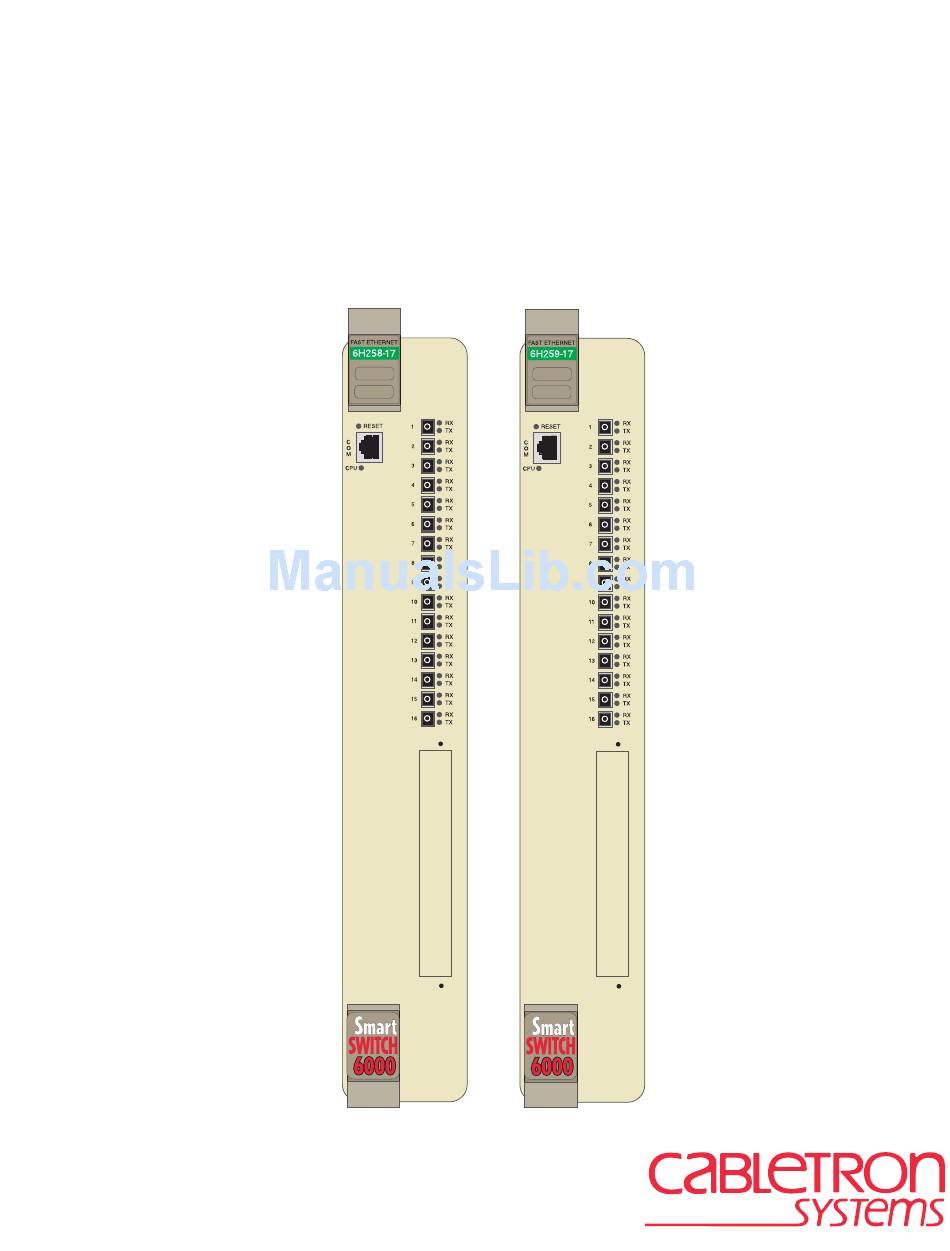

- Page 1 6H258-17 and 6H259-17 SmartSwitch 6000 Interface Modules Installation User’s Guide 9033381...
- Page 3 NOTICE Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice.
-
Page 4: Industry Canada Notice
FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Program License Agreement
BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package. - Page 6 If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be...
- Page 7 BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Sales and Service, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
- Page 8 UNITED STATES GOVERNMENT RESTRICTED RIGHTS. The enclosed Product (i) was developed solely at private expense; (ii) contains “restricted computer software” submitted with restricted rights in accordance with section 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Cabletron and/or its suppliers.
- Page 9 BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between You, the end user, and Cabletron Systems Limited (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (“Program”) in the package.
- Page 10 If the Program is exported from the United States pursuant to the License Exception TSR under the U.S. Export Administration Regulations, in addition to the restriction on transfer set forth in Sections 1 or 2 of this Agreement, You agree not to (i) reexport or release the Program, the source code for the Program or technology to a national of a country in Country Groups D:1 or E:2 (Albania, Armenia, Azerbaijan, Belarus, Bulgaria, Cambodia, Cuba, Estonia, Georgia, Iraq, Kazakhstan, Kyrgyzstan, Laos, Latvia, Libya, Lithuania, Moldova, North Korea, the People’s Republic of China, Romania, Russia, Rwanda, Tajikistan, Turkmenistan, Ukraine, Uzbekistan, Vietnam, or such other countries as may be...
- Page 11 THE GPIM-01 AND GPIM-09 GIGABIT ETHERNET MODULES READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments. The output is factory set, and does not allow any user adjustment.
- Page 12 Application of Council Directive(s): 89/336/EEC Manufacturer’s Name: Cabletron Systems, Inc. Manufacturer’s Address: European Representative Name: Mr. J. Solari European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: Networking Equipment, for use in a Commercial We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms to the above directives.
-
Page 13: Table Of Contents
Figures... xiii Tables ... xiv ABOUT THIS GUIDE Using This Guide...xv Structure of This Guide ...xvi Related Manuals ... xvii Document Conventions... xviii INTRODUCTION Overview ... 1-1 1.1.1 Connectivity... 1-3 1.1.2 Runtime IP Address Discovery ... 1-3 1.1.3 Full Duplex Switched Ethernet ... 1-3 1.1.4 SmartTrunk ... - Page 14 NETWORK REQUIREMENTS 100BASE-FX Network... 2-1 2.1.1 Multimode Fiber Optic Cabling ... 2-1 2.1.2 Single Mode Fiber Optic Cabling ... 2-2 SmartTrunk... 2-2 INSTALLATION Unpacking the SmartSwitch ... 3-1 Installing Options... 3-2 Installing the SmartSwitch into the 6C105 Chassis... 3-2 Connecting to the Network... 3-4 Completing the Installation...
-
Page 15: Figures
Figure The SmartSwitch ... 1-2 Installing an Interface Module ... 3-3 Connecting a Fiber Optic Segment to the SmartSwitch ... 3-5 LANVIEW LEDs ... 4-2 RESET Button ... 4-10 Module Mode Switch Location/Component Layout ...B-2 SIMM Slot Locations ...B-4 Installing the DRAM...B-5 HSIM and VHSIM Connector Locations ...B-6 Figures Page... - Page 16 Tables Table Contents of SmartSwitch Shipping Container... 3-1 LANVIEW LEDs ... 4-3 Fault Identification... 4-5 Power System Troubleshooting ... 4-6 Firmware Troubleshooting ... 4-7 Management System Troubleshooting ... 4-8 Device Setup Troubleshooting... 4-9 COM Port Pin Assignments... A-2 Page...
-
Page 17: About This Guide
SmartSwitch Series 6H202, 6H203, 6H252, 6H253, 6H258, 6H259, 6H262, 6E233, and 6E253 Local Management User’s Guide. Depending on the firmware version used in the 6H258-17 and 6H259-17, some features described in this document may not be supported. Refer to the Release Notes shipped with the device to determine which features are supported. -
Page 18: Structure Of This Guide
SmartSwitch, and gives instructions on how to get help from Cabletron Systems. Chapter 1, Introduction, describes the features of the SmartSwitch. -
Page 19: Related Manuals
World Wide Web in Adobe Acrobat Portable Document Format (PDF) at the following site: http://www.cabletron.com/ All documentation for Cabletron Systems SecureFast VLAN Manager software can be NOTE found on the VLAN Manager CD-ROM. -
Page 20: Document Conventions
Document Conventions DOCUMENT CONVENTIONS The following conventions are used throughout this document: Note symbol. Calls the reader’s attention to any item of information that may be of NOTE special importance. Tip symbol. Conveys helpful hints concerning procedures or actions. Caution symbol. Contains information essential to avoid damage to the equipment. CAUTION Electrical Hazard Warning symbol. -
Page 21: Introduction
High Speed Interface Module (HSIM) or Very High Speed Interface Module (VHSIM). The 6H258-17 uses multimode fiber optic cable for the network connections, while the 6H259-17 uses single mode fiber optic cable. The physical connectors look the same. - Page 22 Overview Figure 1-1 The SmartSwitch Introduction...
-
Page 23: Connectivity
100 Mbps with duplex capability. These ports are in full compliance with the optical performance requirements of 100BASE-FX version of IEEE 802.3u. The 6H258-17 ports support multimode fiber optic cables up to 2 km. The 6H259-17 ports support single mode fiber optic cables up to 15 km. -
Page 24: Smarttrunk
History groups are enabled on all ports by default. Cabletron Systems RMON Actions is a vendor-specific extension of RMON and provides the ability to set an “Action” on any SNMP MIB variable. The Action can be triggered by setting an RMON Event and/or Alarm. -
Page 25: Rate Limiting
The analyzer or RMON probe will see the data as if it were directly connected to the LAN segment of the source port. The VLAN redirect function is similar to the port redirect function except that the frames received by the device are redirected to a designated destination port according to the VLAN classification of the frames received. -
Page 26: Flow Control
Overview and GMRP handle frames under GARP, and how to configure the switch ports to take advantage of this operation, refer to Local Management User’s Guide. 1.1.10 Flow Control Flow control is a method of managing the flow of frames between two devices. It ensures that a transmitting device does not overwhelm a receiving device with data. -
Page 27: Switching Options
SmartSwitches support a wide variety of industry standard MIBs including RFC 1213 (MIB II), RFC 1757 (RMON), RFC 1493 (Bridge MIB), RFC 1354 (FIB MIB), and RFC 1190 (Path MTU Discovery). A full suite of Cabletron Systems Enterprise MIBs provide a wide array of statistical information to enhance troubleshooting. -
Page 28: Lanview Diagnostic Leds
The SmartSwitch modules and 6C105 chassis have an internal clock that can maintain the time and date beyond the year 1999. GETTING HELP For additional support related to this device or document, contact Cabletron Systems using one of the following methods: World Wide Web http://www.cabletron.com/... -
Page 29: Network Requirements
100BASE-FX IEEE 802.3u standard. One module, the 6H258-17, is made specifically for multimode fiber optic cable and the other, the 6H259-17, is made specifically for single mode fiber optic cable. The two modules cannot be used interchangeably with respect to multimode or single mode fiber optic cable. -
Page 30: Single Mode Fiber Optic Cabling
Refer to the Cabletron Systems SmartTrunk User’s Guide for additional information. The Cabletron Systems Cabling Guide and the SmartTrunk User’s Guide can be found NOTE on the Cabletron Systems World Wide Web site: http://www.cabletron.com/... -
Page 31: Installation
Only qualified personnel should install the SmartSwitch. Read the Release Notes shipped with the device to check for any exceptions to the NOTE supported features and operation documented in this guide. This chapter covers the following items: • Unpacking the SmartSwitch •... -
Page 32: Installing Options
Installing Options INSTALLING OPTIONS If installing an optional HSIM or VHSIM, it must be installed in the SmartSwitch before proceeding to Section 3.3. Complete instructions for installing an optional HSIM or VHSIM are available in the applicable HSIM or VHSIM User’s Guide. For details on how to get manuals, refer to the Related Manuals in the... - Page 33 Installing the SmartSwitch into the 6C105 Chassis Figure 3-1 Installing an Interface Module Examine the module for damage. If any damage exists, DO NOT install the module. Immediately contact Cabletron Systems. Refer to Section 1.2. Installation...
-
Page 34: Connecting To The Network
SmartTrunking to operate properly. Before connecting the cables, refer to the Cabletron Systems SmartTrunk User’s Guide for the configuration information. For the 6H258-17 and multimode fiber optic cable configuration information, refer to the Cabletron Systems Cabling Guide . Section 2.1 for information on connecting using single mode fiber optic cable with the 6H259-17. - Page 35 Figure 3-2 Connecting a Fiber Optic Segment to the SmartSwitch Connect a fiber optic segment to the SmartSwitch as follows: Remove protective covers from the fiber optic segment or MT-RJ port. Leave protective covers on the fiber optic cable or fiber optic ports until they are NOTE connected to protect the connectors from dust and dirt.
-
Page 36: Completing The Installation
Verify that the device at the other end of the fiber optic segment is powered on and properly connected to the segment. Ensure that the fiber optic connection meets the dB loss and cable specifications outlined in the Cabletron Systems Cabling Guide. Refer to the Guide preface for information on obtaining this document. -
Page 37: Troubleshooting
Troubleshooting network and module operational problems • Using the RESET button USING LANVIEW The SmartSwitch modules use Cabletron Systems’ built-in visual diagnostic and status monitoring system called LANVIEW. The LANVIEW LEDs network status to aid in diagnosing network problems. Refer to LEDs. - Page 38 Using LANVIEW Figure 4-1 LANVIEW LEDs Troubleshooting...
-
Page 39: Lanview Leds
Diagnostic failure. Table 4-1 LANVIEW LEDs Recommended Action Power up chassis. Contact Cabletron Systems. If the LED remains red for several minutes, contact Cabletron Systems. Contact Cabletron Systems. If the LED remains amber for several minutes, contact Cabletron Systems. None. None. - Page 40 Recommended Action 1. Ensure that the STA is enabled and that there is valid link. describes how to enable the STA. 2. Contact Cabletron Systems. None. 1. Ensure that the port is not disabled. Refer to your Local Management User’s Guide for information on enabling/disabling ports.
-
Page 41: Troubleshooting Checklist
2. If the problem continues after pressing the RESET button, refer Section B.1 for instructions on forcing a BootP image download. 3. Contact Cabletron Systems if the problem continues. 1. Firmware image fault - refer to 2. Management system fault - refer to 1. Management system fault - refer to 2. -
Page 42: Power System Troubleshooting
The 6C105 chassis power bus may have a localized fault. Install the SmartSwitch in the working slot and contact Cabletron Systems. 3. If the SmartSwitch does not function in the selected slot, continue the process with all module slots in the chassis. If the module... -
Page 43: Firmware Troubleshooting
1. If possible, attempt to download the image to the device again. Refer to Section B.1 a download of a new firmware image. 2. Contact Cabletron Systems if the problem continues. Troubleshooting Checklist for instructions on how to force Troubleshooting... -
Page 44: Management System Troubleshooting
Troubleshooting Checklist Table 4-5 Management System Troubleshooting Possible Causes Improper Community Names Table. The SmartSwitch does not have an IP address. The applicable front panel port is disabled. Troubleshooting Instruction 1. Refer to your Local Management User’s Guide for Community Names Table setup. 2. -
Page 45: Device Setup Troubleshooting
1. Reenter the lost parameters as necessary. Refer to the Local Management User’s Guide for instructions on configuring the device through Local Management. 2. Call Cabletron Systems if the problem continues. 1. Reenter the lost parameters as necessary. Refer to the Local Management User’s Guide for instructions on configuring the device through Local Management. -
Page 46: Using The Reset Button
Using the RESET Button USING THE RESET BUTTON The RESET button located near the upper plastic locking tab of the module (refer to resets the SmartSwitch processor without affecting the NVRAM. Pressing the RESET button resets the device, and all current switching being performed by the module is halted. -
Page 47: A.1 Module Specifications
This appendix provides operating specifications for the Cabletron Systems 6H258-17 and 6H259-17 Interface Modules. Cabletron Systems reserves the right to change these specifications at any time without notice. MODULE SPECIFICATIONS Processor: Dynamic Random Access Memory (DRAM): 20 MB FLASH Memory:... -
Page 48: A.3 Environmental Requirements
Specifications 5°C to 40°C (41°F to 104°F) -30°C to 73°C (-22°F to 164°F) 5% to 90% (non-condensing) 6H258-17 using multimode fiber only 6H259-17 using single mode fiber only Slot accepts optional HSIMs or VHSIMs that provide a variety of connections... -
Page 49: A.6 Regulatory Compliance
Fast Ethernet 100 Mbps (100BASE-FX compliant) with MT-RJ connectors using single mode fiber. Options for both the 6H258-17 and the 6H259-17: Slot for optional High Speed Interface Module (HSIM) or Very High Speed Interface Module (VHSIM). Slot accepts optional HSIMs or VHSIMs that provide a variety of connections. -
Page 51: B.1 Setting The Mode Switches
Switch Settings, Upgrades, and Installations This appendix covers the following items: • Setting the mode switches • Installing the DRAM SIMM • Location for installing HSIMs or VHSIMs An antistatic wrist strap (provided with 6C105 chassis) is required to perform the procedures in this appendix. -
Page 52: Setting The Mode Switches
Figure B-1 Module Mode Switch Location/Component Layout Switch definitions and positions are as follows: • Switches 1 through 4 – For Cabletron Systems use only. • Switch 5 – COM Port Autobaud. The default (OFF) position enables Autobaud sensing on the COM port for Local Management sessions. -
Page 53: B.2.1 Locating Simms
Memory upgrade is available for the SmartSwitch modules to expand the DRAM to 32 MB. This section explains how to locate and add/replace a Single In-line Memory Module (SIMM). For information on the available SIMM upgrades, contact Cabletron Systems. For details on getting help, refer to Section 1.2. -
Page 54: Installing The Dram Simm
SIMM Upgrade B.2.2 Installing the DRAM SIMM Observe all antistatic precautions when handling sensitive electronic equipment. CAUTION To install a DRAM SIMM, refer to With the SIMM alignment notch oriented as shown in between the connector teeth. Pivot the SIMM downward so the connector clips align with the two side notches of the SIMM and the connector clips lock the SIMM into place. -
Page 55: B-3 Installing The Dram
INSTALLING OPTIONAL HIGH SPEED INTERFACE MODULES Figure B-4 shows the location of the two connectors for an optional High HSIM or VHSIM. Depending on if an HSIM or VHSIM is installed, one or both connectors are used. Refer to the installation instructions for the optional HSIM or VHSIM in the associated NOTE user’s guide. -
Page 56: B-4 Hsim And Vhsim Connector Locations
Installing Optional High Speed Interface Modules Figure B-4 HSIM and VHSIM Connector Locations Switch Settings, Upgrades, and Installations... - Page 57 Numerics 100BASE-FX connection requirements Cable Specifications 100BASE-FX network COM port pin assignments Connecting to the network Distributed Chassis Management Document Conventions xviii Environmental requirements Help related manuals xvii Installation connecting to the Network High Speed Interface Module Module Very High Speed Interface Module LANVIEW LEDs LDRAM installation...
