ADEEPT Robotic Arm Manual page 98

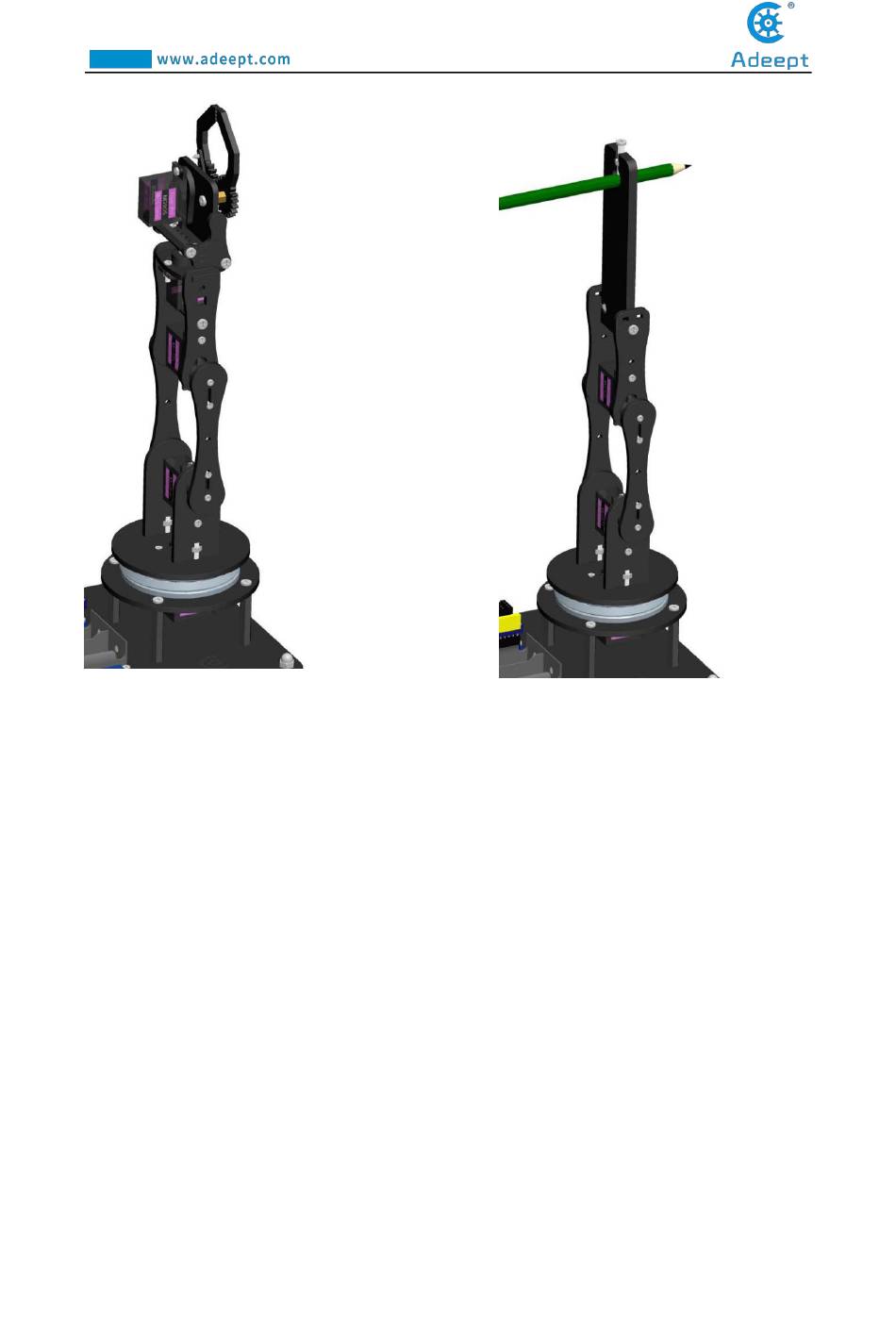

【If your robot arm is assembled and turned on, it is not what it
looks like in the picture above, then how do you adjust it?】
1.First, you need to re-download the code used in lesson 5: Servo90.ino. Observe
if the robot arm is close to the one in the picture above.
2.If it does not work, then you need to manually disassemble the robot arm for
adjustment, is to operate with the power on, generally you just need to manually
adjust the A07 section in the figure below, remove it, and then connect the upper and
lower sections of the robot arm vertical ground, and then install the A07 on to fix
them.
95
