Install the clamp section on the robotic arm.

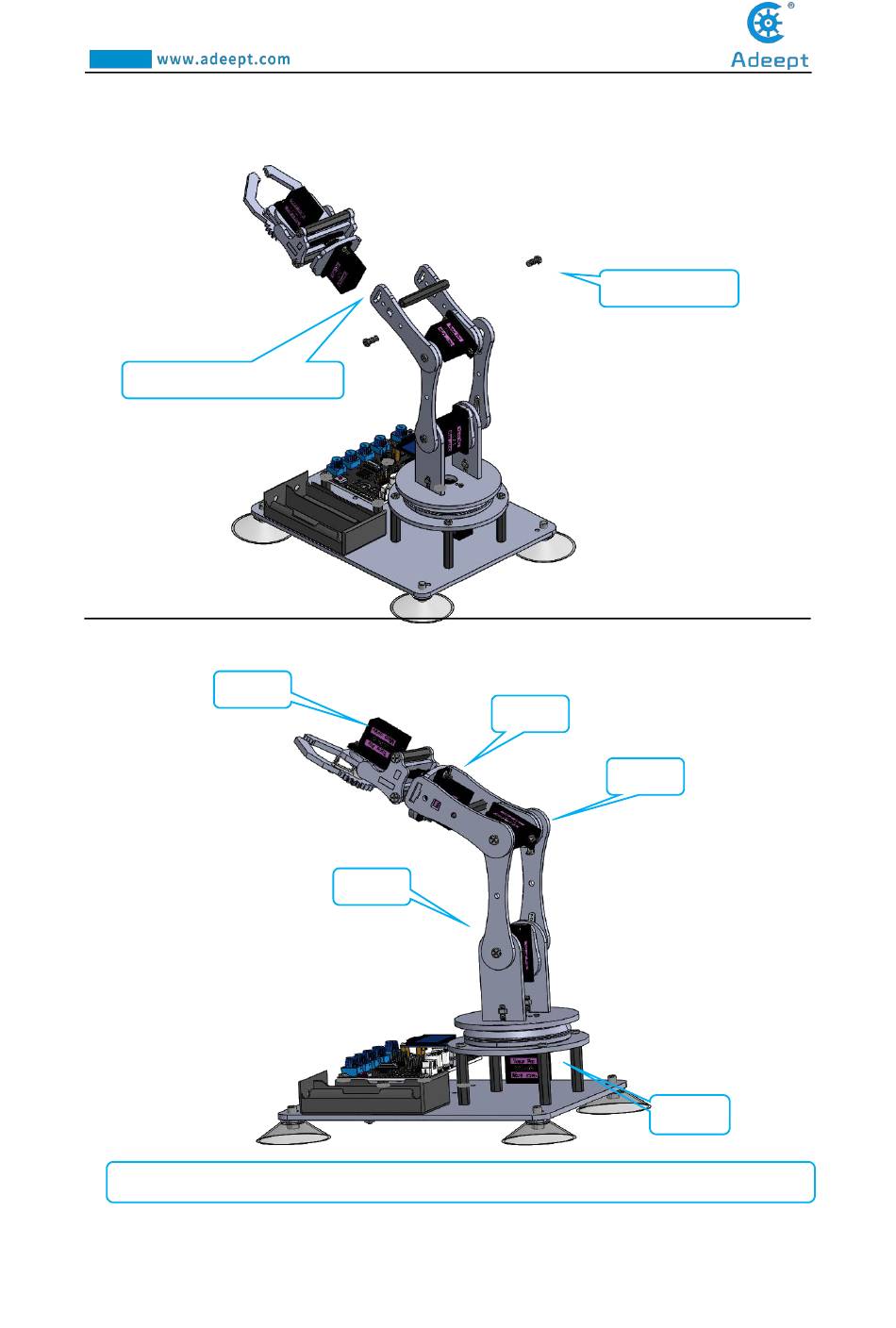

Assemble the following components
M3*8 Screw x2
M3*30 Nylon Standoff x1
Effect diagram after assembling
Servo5
Servo4
Servo3
Servo2
Servo1
Number each servo to prepare for the circuit connection.
