Note that the arm is still connected to the computer with the USB cable.

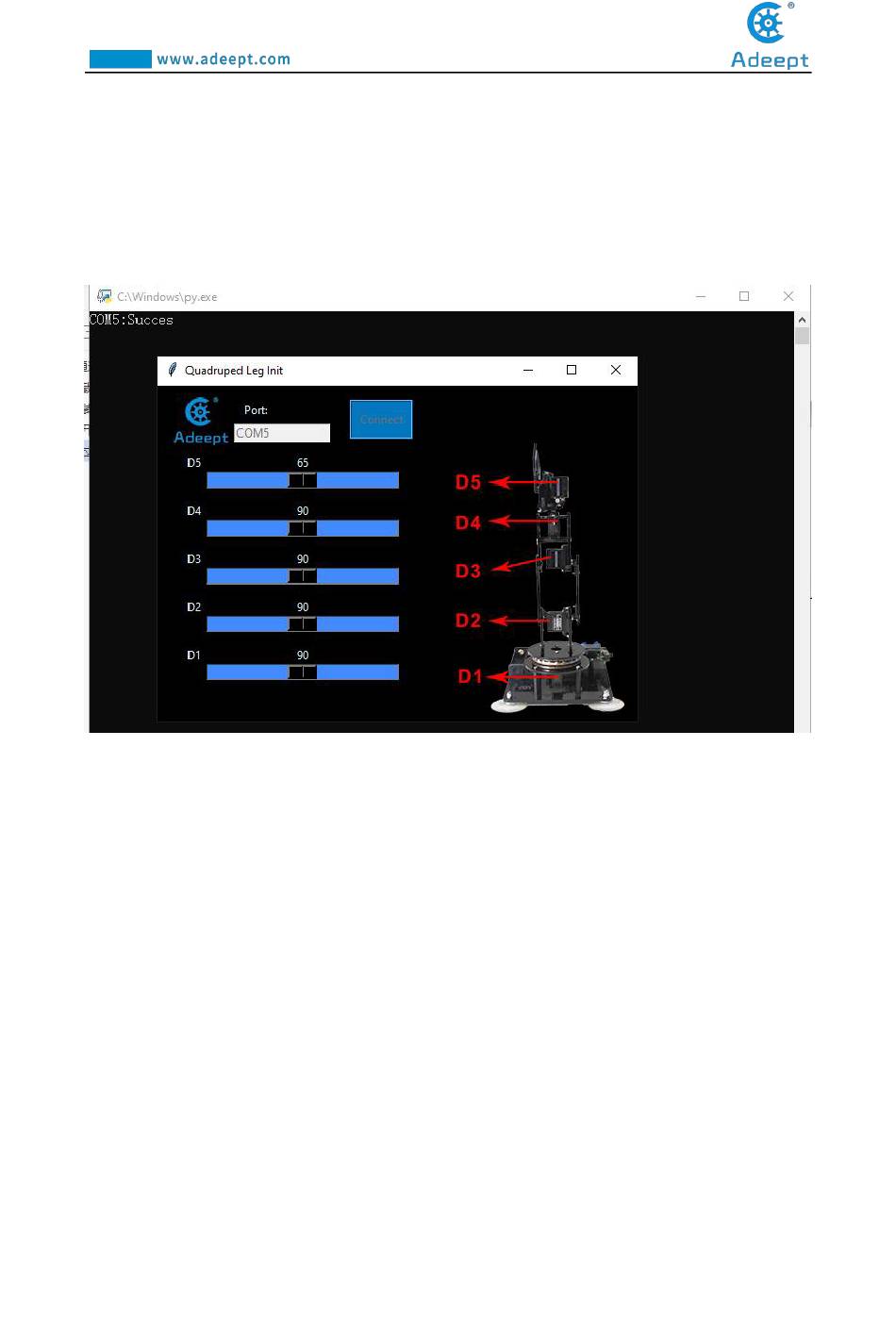

1. In the opened GUI interface, the left area is to control the movement of the
servo D1~D5, and the right area is the structure diagram of the servo of the robotic
arm.
2. When you need to control the robotic arm, you can slide the slider
corresponding to the servo in the left area to control the movement of the robotic arm.
When a certain position is slipped, a data will be displayed on the slider, this data
represents the angle.
