3. Fix one rocker arm of the servo to A17.

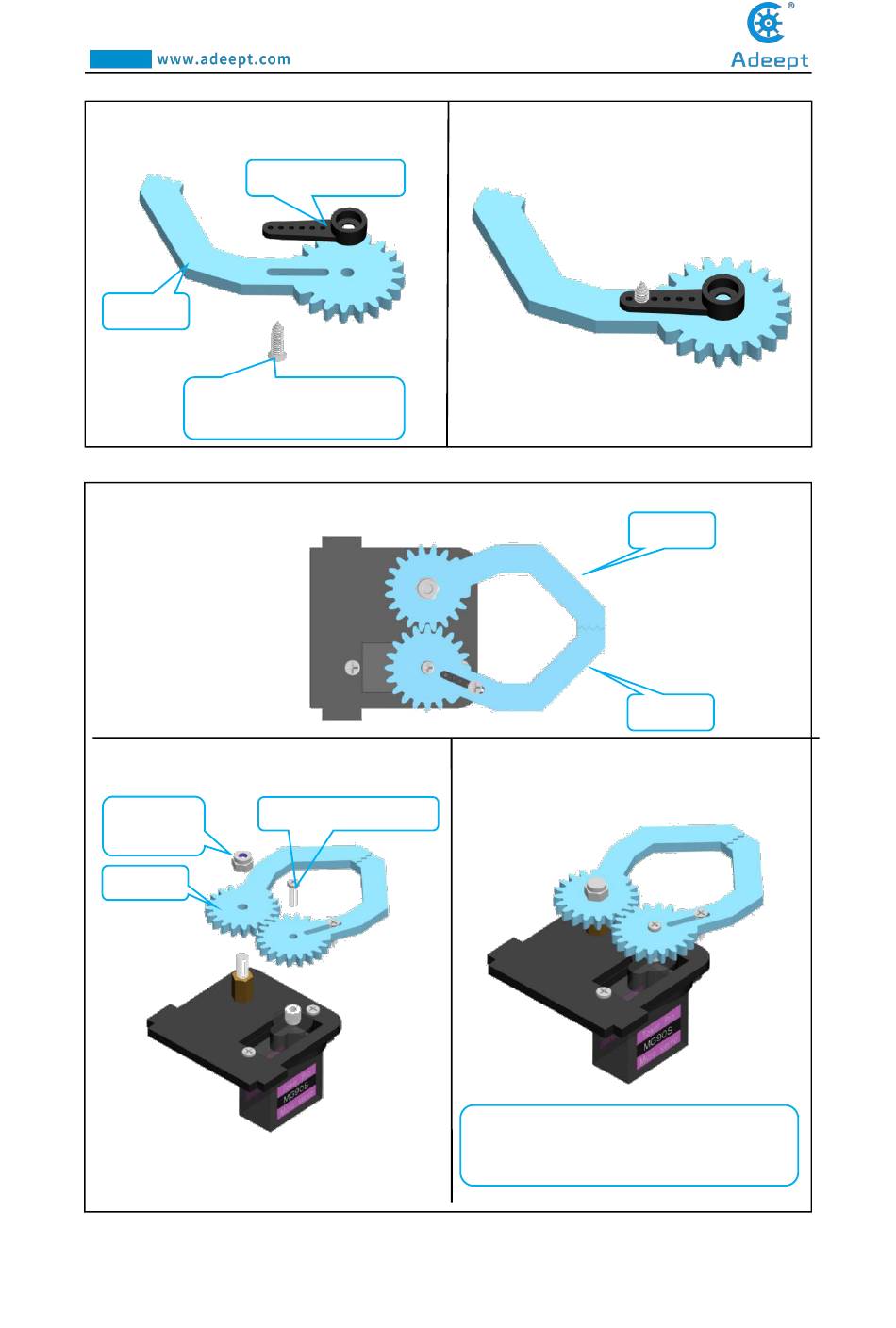

Assemble the following components
A17 x1
Self-tapping screw packaged
with servo
4. Assemble A16 and A17.
Install A16 and A17 as shown below.
Assemble the following components
M3 Lock
Nut x1
A16 x1
Rocker arm x1
x1
M2.5*7 Screw x1
Effect diagram after assembling
Effect diagram after assembling
Do not tighten the M3 Lock Nut to ensure
that the A16 can rotate.
87
A16
A17
