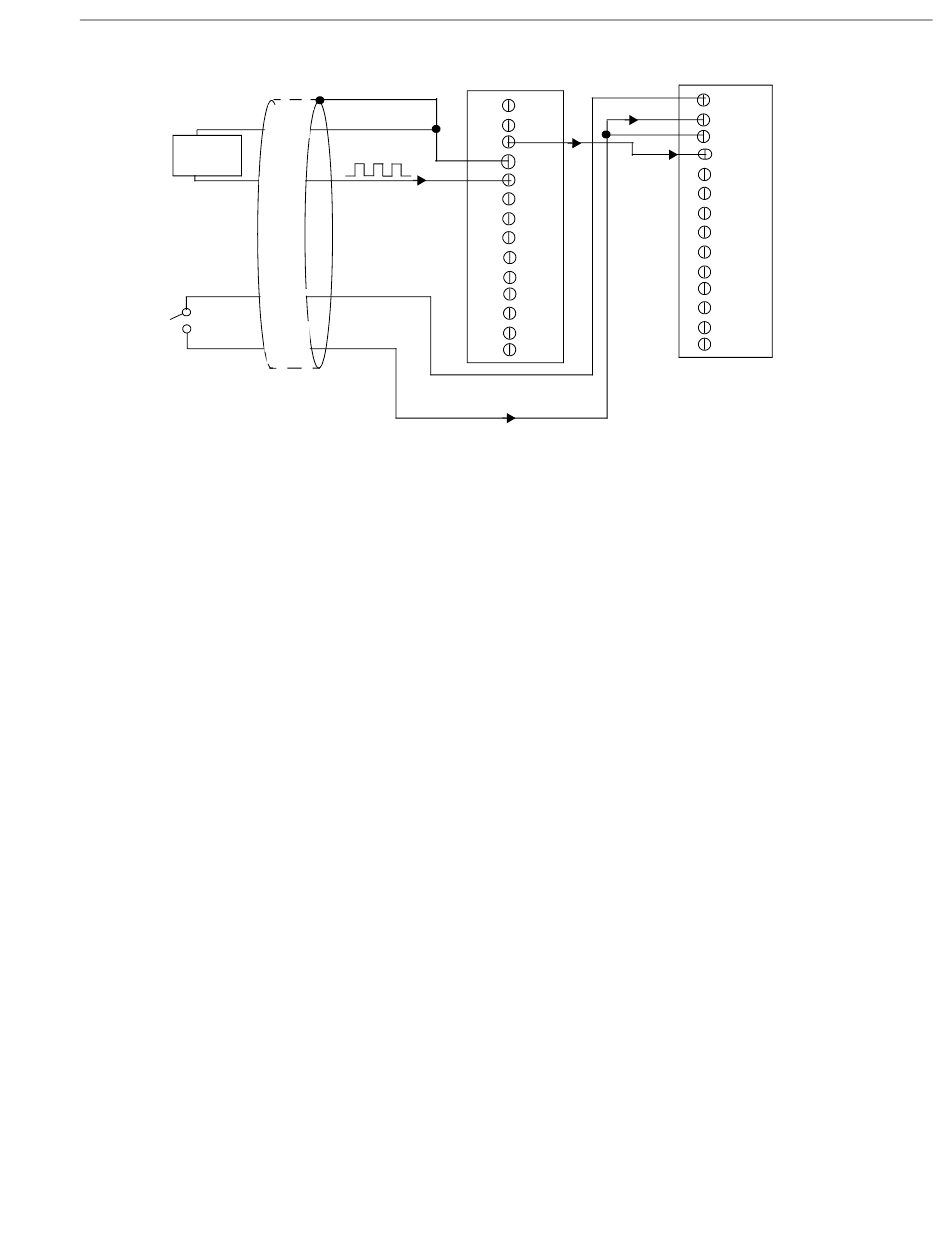

Figure 42: Cascading Counters on an STP268-EC Screw Terminal Panel
(Shown for Event Counting Using Counters 0 and 1 and External Gate 0)

Connecting Frequency Measurement Signals

You can connect a frequency measurement application to a DT740 or STP268 screw terminal
panel in two ways.
The first configuration uses the same wiring as an event counting application that does not
use an external gate signal (see
the STP268, or Figure 41 on page 82
to specify the duration of the frequency measurement. In this configuration, the frequency of
the clock input is the number of counts divided by the duration of the Windows timer.
If you need more accuracy than the Windows timer provides, you can connect a pulse of a
known duration (such as a one-shot output of another user counter) to the external gate input.
In this configuration, the frequency of the clock input is the number of counts divided by the
period of the external gate input. For an example of this configuration, refer to
the DT740, Figure 44
