Antenna and Cable Monitor (ACMI) Measurements

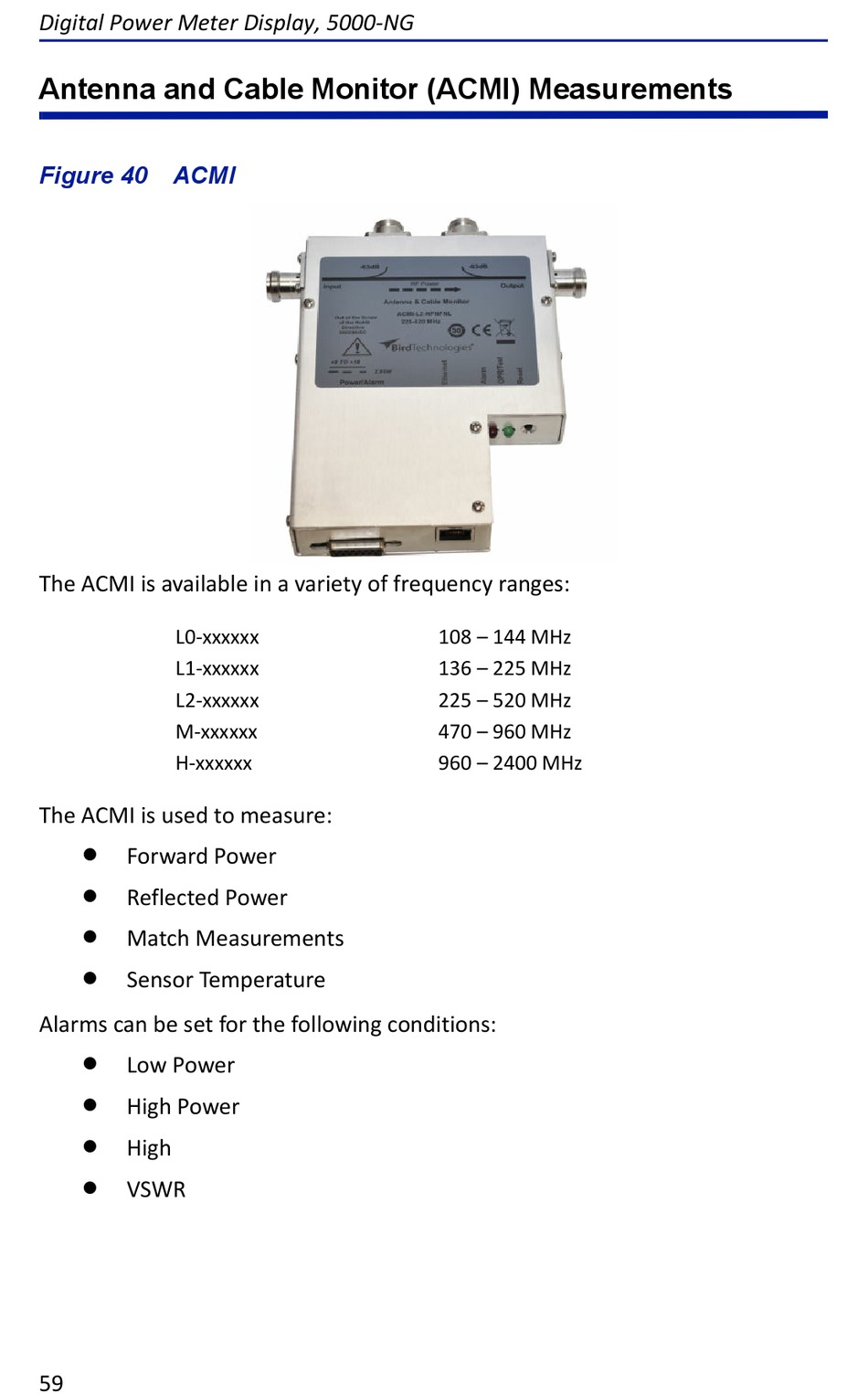

Figure 40 ACMI
The ACMI is available in a variety of frequency ranges:
L0-xxxxxx
L1-xxxxxx
L2-xxxxxx
M-xxxxxx
H-xxxxxx
The ACMI is used to measure:

Forward Power

Reflected Power

Match Measurements

Sensor Temperature
Alarms can be set for the following conditions:

Low Power

High Power

High

VSWR
59
108 – 144 MHz
136 – 225 MHz
225 – 520 MHz
470 – 960 MHz
960 – 2400 MHz
