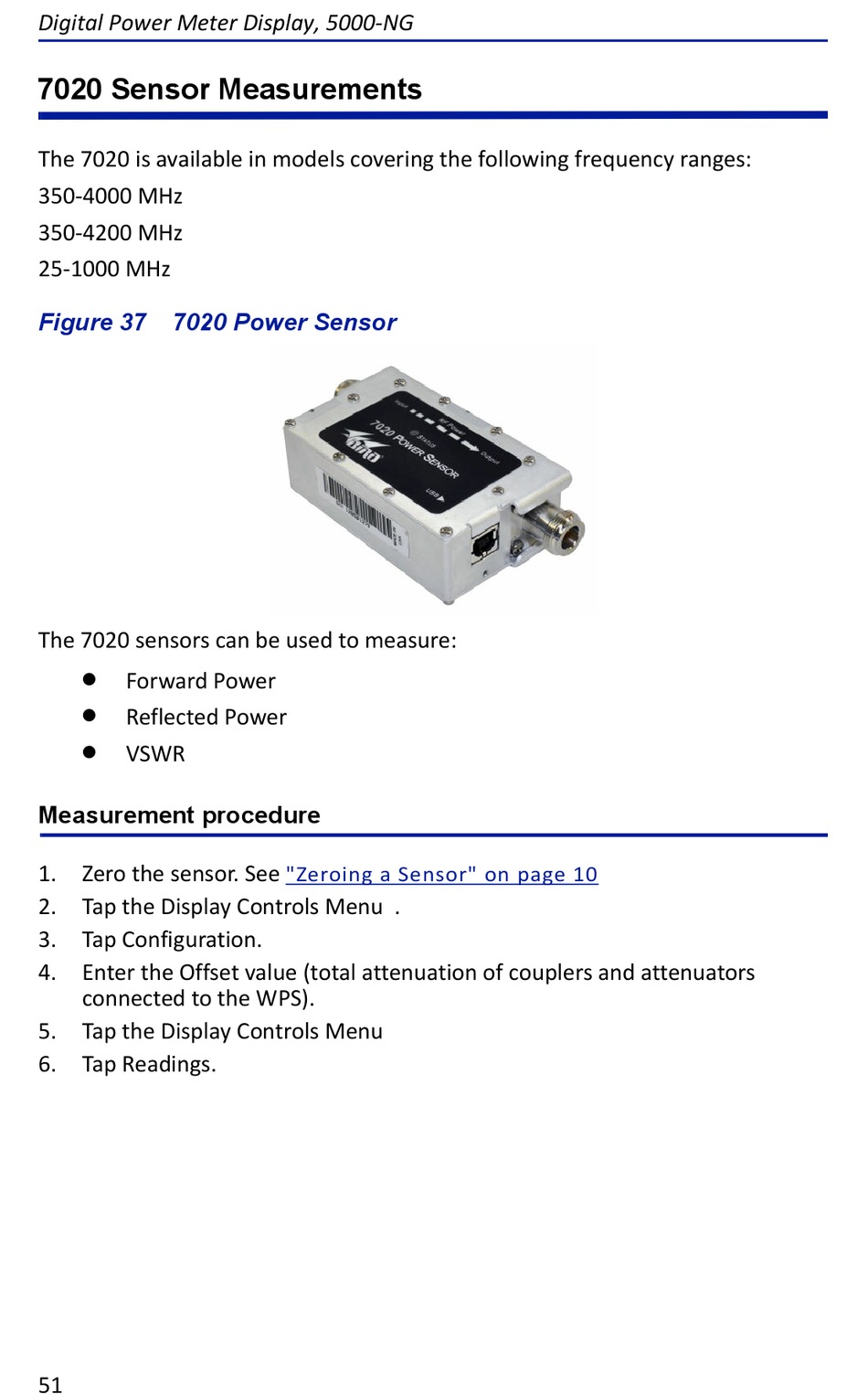

Digital Power Meter Display, 5000-NG

7020 Sensor Measurements

The 7020 is available in models covering the following frequency ranges:
350-4000 MHz
350-4200 MHz
25-1000 MHz
Figure 37
7020 Power Sensor
The 7020 sensors can be used to measure:
Forward Power
Reflected Power
VSWR

Measurement procedure

1. Zero the sensor. See
2. Tap the Display Controls Menu .
3. Tap Configuration.
4. Enter the Offset value (total attenuation of couplers and attenuators
connected to the WPS).
5. Tap the Display Controls Menu
6. Tap Readings.
51
"Zeroing a Sensor" on page 10
