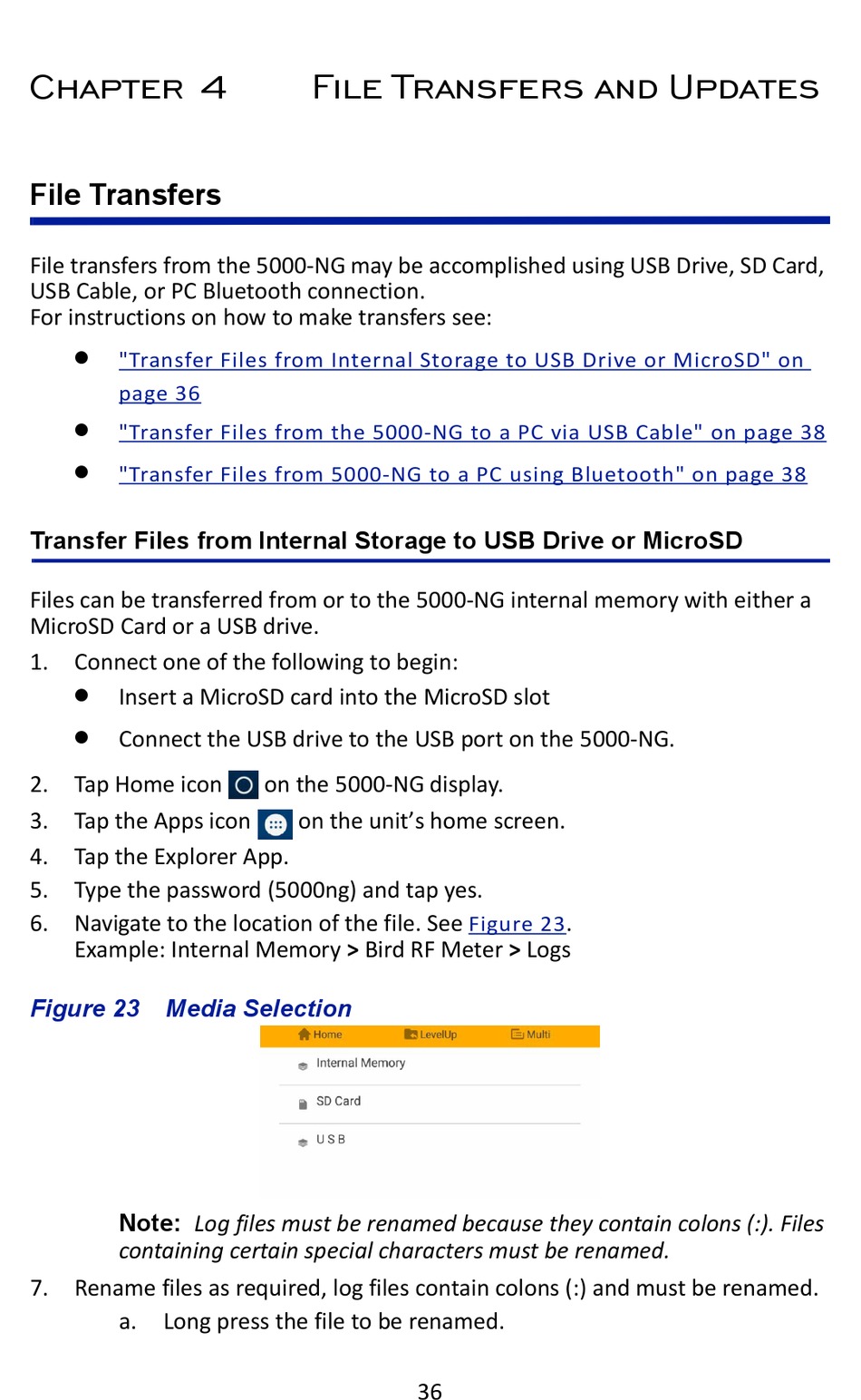

Chapter 4 File Transfers And Updates; File Transfers; Transfer Files From Internal Storage To Usb Drive Or Microsd - BIRD Digital Power Meter Display Operation Manual

Chapter 4

File Transfers

File transfers from the 5000-NG may be accomplished using USB Drive, SD Card,
USB Cable, or PC Bluetooth connection.
For instructions on how to make transfers see:

"Transfer Files from Internal Storage to USB Drive or MicroSD" on
page 36

"Transfer Files from the 5000-NG to a PC via USB Cable" on page 38

"Transfer Files from 5000-NG to a PC using Bluetooth" on page 38

Transfer Files from Internal Storage to USB Drive or MicroSD

Files can be transferred from or to the 5000-NG internal memory with either a
MicroSD Card or a USB drive.
1. Connect one of the following to begin:

Insert a MicroSD card into the MicroSD slot

Connect the USB drive to the USB port on the 5000-NG.
2. Tap Home icon
3. Tap the Apps icon
4. Tap the Explorer App.
5. Type the password (5000ng) and tap yes.
6. Navigate to the location of the file. See
Example: Internal Memory > Bird RF Meter > Logs
Figure 23 Media Selection
Note: Log files must be renamed because they contain colons (:). Files
containing certain special characters must be renamed.
7. Rename files as required, log files contain colons (:) and must be renamed.
a. Long press the file to be renamed.
File Transfers and Updates
on the 5000-NG display.
on the unit's home screen.
36
.
Figure 23
