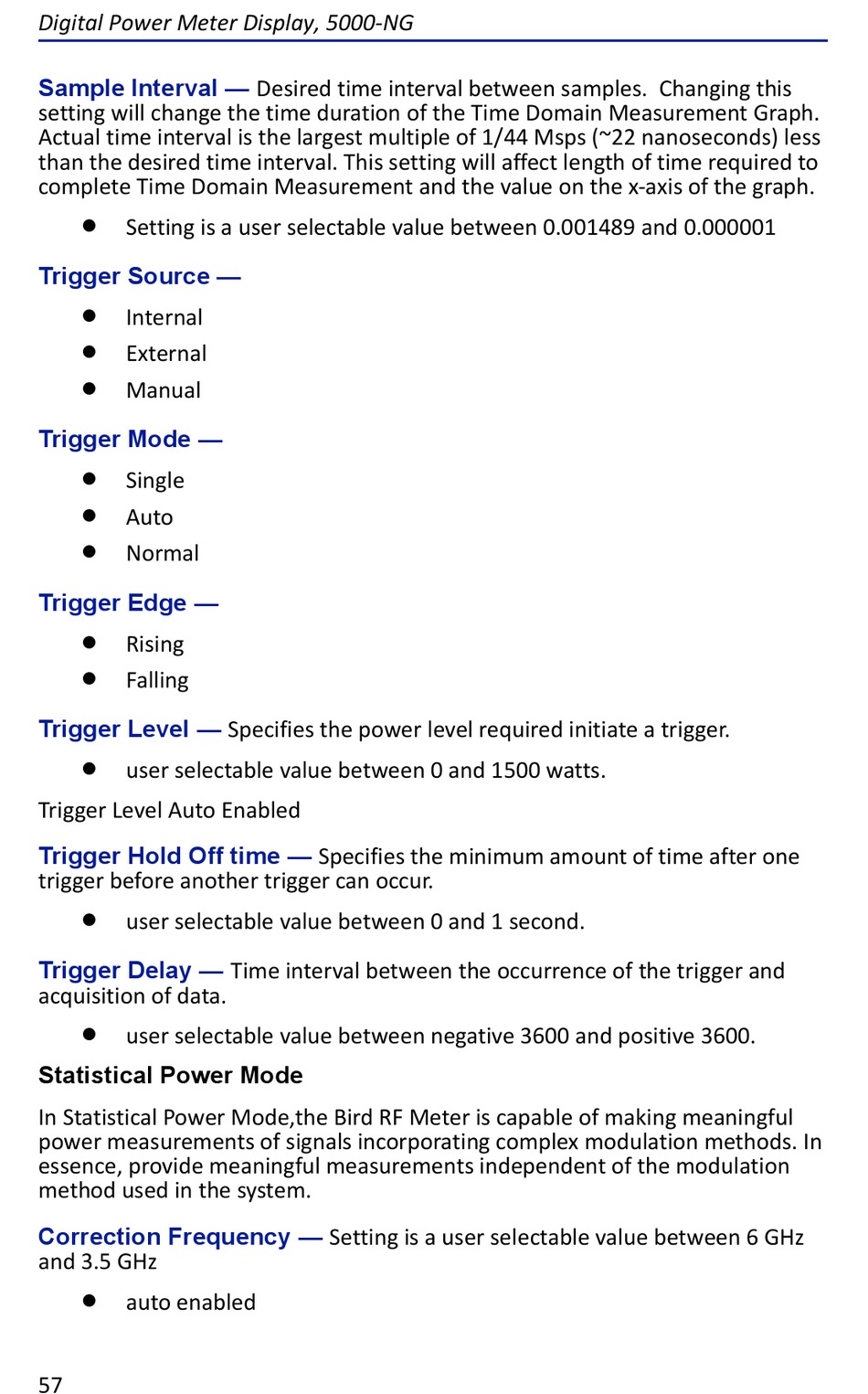

Digital Power Meter Display, 5000-NG
Sample Interval —
setting will change the time duration of the Time Domain Measurement Graph.
Actual time interval is the largest multiple of 1/44 Msps (~22 nanoseconds) less
than the desired time interval. This setting will affect length of time required to
complete Time Domain Measurement and the value on the x-axis of the graph.

Setting is a user selectable value between 0.001489 and 0.000001
Trigger Source —

Internal

External

Manual
Trigger Mode —

Single

Auto

Normal
Trigger Edge —

Rising

Falling
Trigger Level —

user selectable value between 0 and 1500 watts.
Trigger Level Auto Enabled
Trigger Hold Off time —
trigger before another trigger can occur.

user selectable value between 0 and 1 second.
Trigger Delay —
acquisition of data.

user selectable value between negative 3600 and positive 3600.
Statistical Power Mode
In Statistical Power Mode,the Bird RF Meter is capable of making meaningful
power measurements of signals incorporating complex modulation methods. In
essence, provide meaningful measurements independent of the modulation
method used in the system.
Correction Frequency —
and 3.5 GHz

auto enabled
57
Desired time interval between samples. Changing this
Specifies the power level required initiate a trigger.
Specifies the minimum amount of time after one
Time interval between the occurrence of the trigger and
Setting is a user selectable value between 6 GHz
