Statistical Power Sensor Measurements

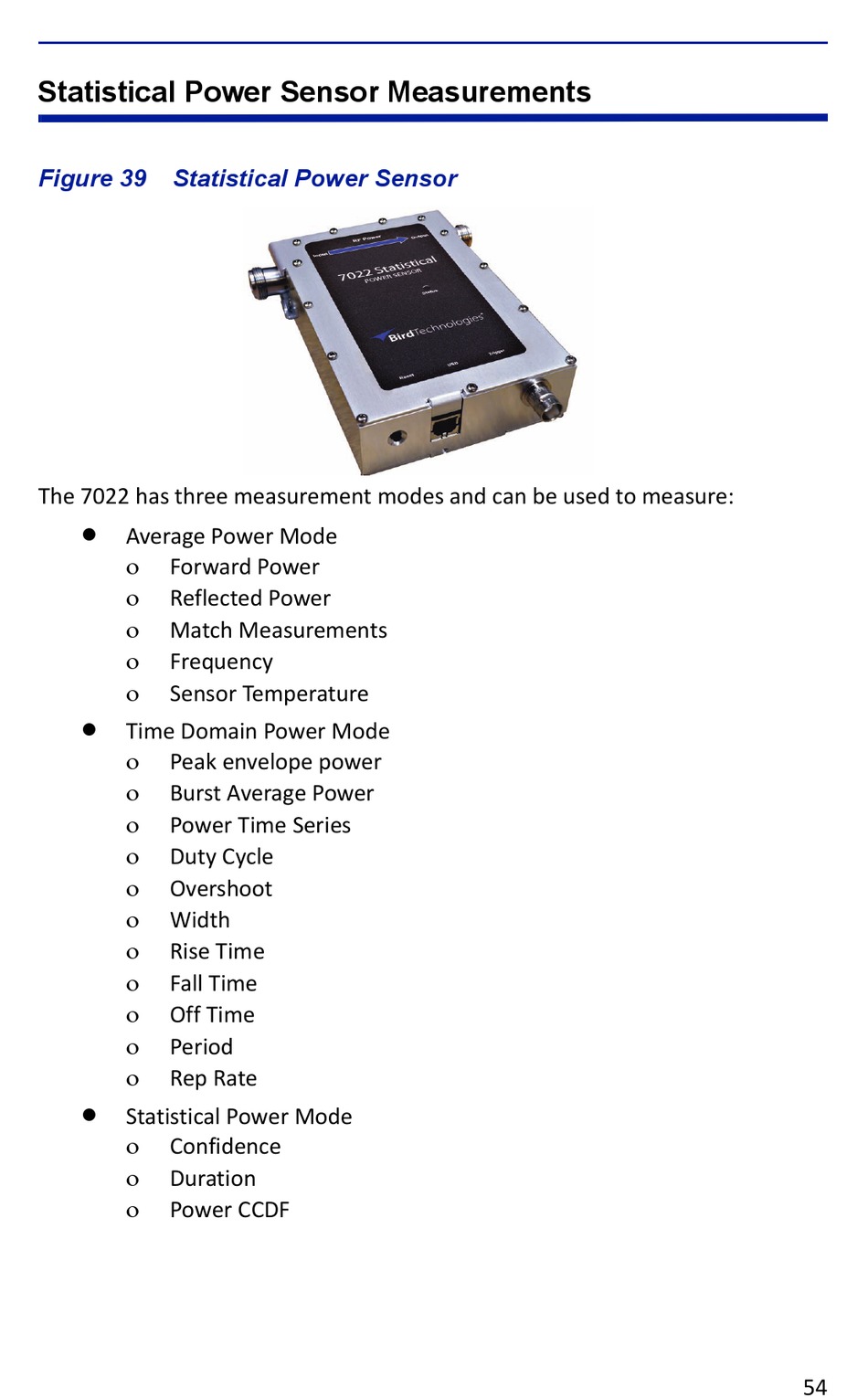

Figure 39 Statistical Power Sensor
The 7022 has three measurement modes and can be used to measure:

Average Power Mode
 Forward Power
Reflected Power

 Match Measurements
 Frequency
Sensor Temperature


Time Domain Power Mode
 Peak envelope power
Burst Average Power

Power Time Series

 Duty Cycle
Overshoot

Width

 Rise Time
Fall Time

Off Time

 Period
Rep Rate


Statistical Power Mode
Confidence

 Duration
Power CCDF

