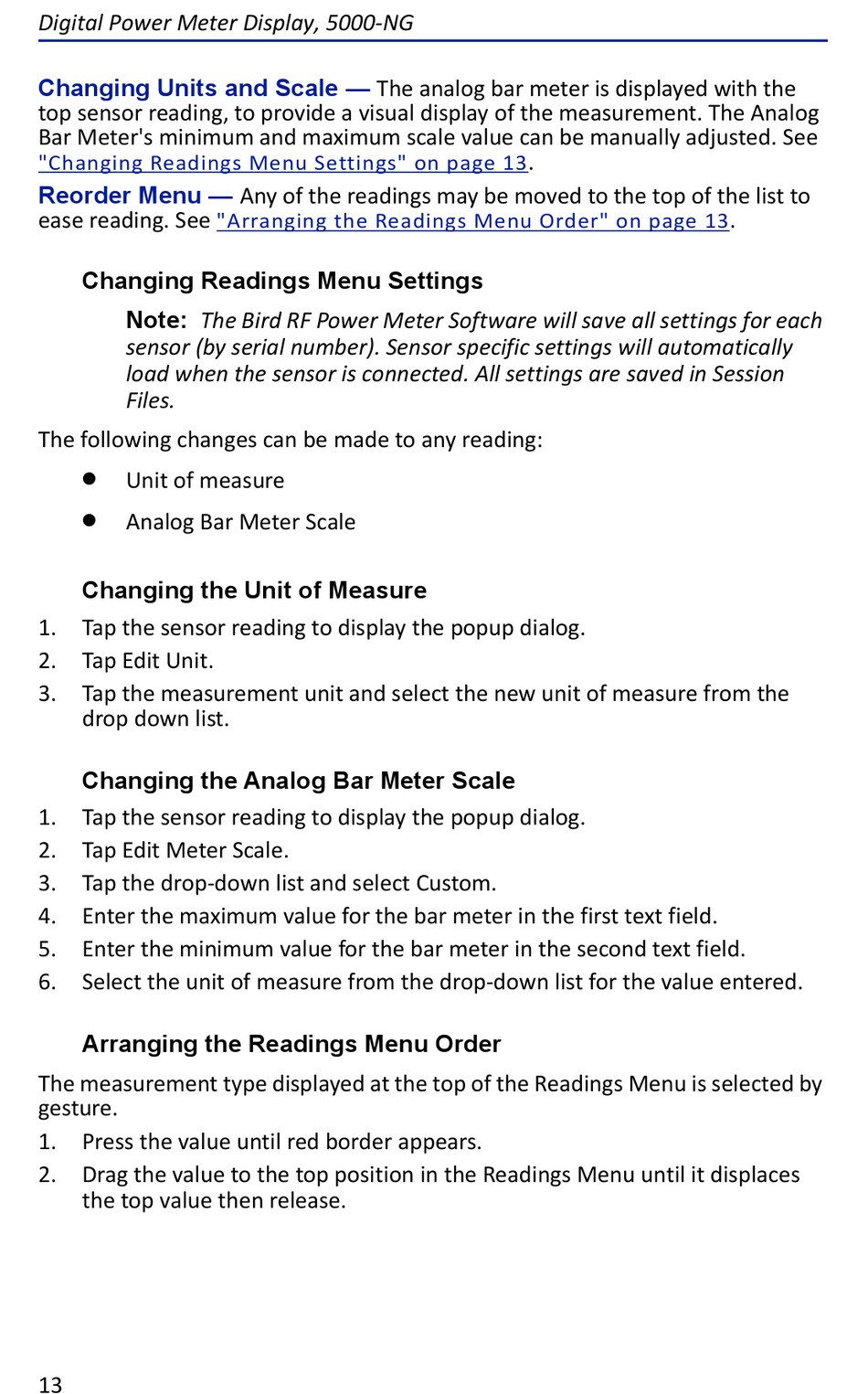

Digital Power Meter Display, 5000-NG
Changing Units and Scale —
top sensor reading, to provide a visual display of the measurement. The Analog
Bar Meter's minimum and maximum scale value can be manually adjusted. See
"Changing Readings Menu Settings" on page 13
Reorder Menu —
ease reading. See
Changing Readings Menu Settings
Note: The Bird RF Power Meter Software will save all settings for each
sensor (by serial number). Sensor specific settings will automatically
load when the sensor is connected. All settings are saved in Session
Files.
The following changes can be made to any reading:

Unit of measure

Analog Bar Meter Scale
Changing the Unit of Measure
1. Tap the sensor reading to display the popup dialog.
2. Tap Edit Unit.
3. Tap the measurement unit and select the new unit of measure from the
drop down list.
Changing the Analog Bar Meter Scale
1. Tap the sensor reading to display the popup dialog.
2. Tap Edit Meter Scale.
3. Tap the drop-down list and select Custom.
4. Enter the maximum value for the bar meter in the first text field.
5. Enter the minimum value for the bar meter in the second text field.
6. Select the unit of measure from the drop-down list for the value entered.
Arranging the Readings Menu Order
The measurement type displayed at the top of the Readings Menu is selected by
gesture.
1. Press the value until red border appears.
2. Drag the value to the top position in the Readings Menu until it displaces
the top value then release.
13
The analog bar meter is displayed with the
Any of the readings may be moved to the top of the list to
"Arranging the Readings Menu Order" on page 13
.
.
