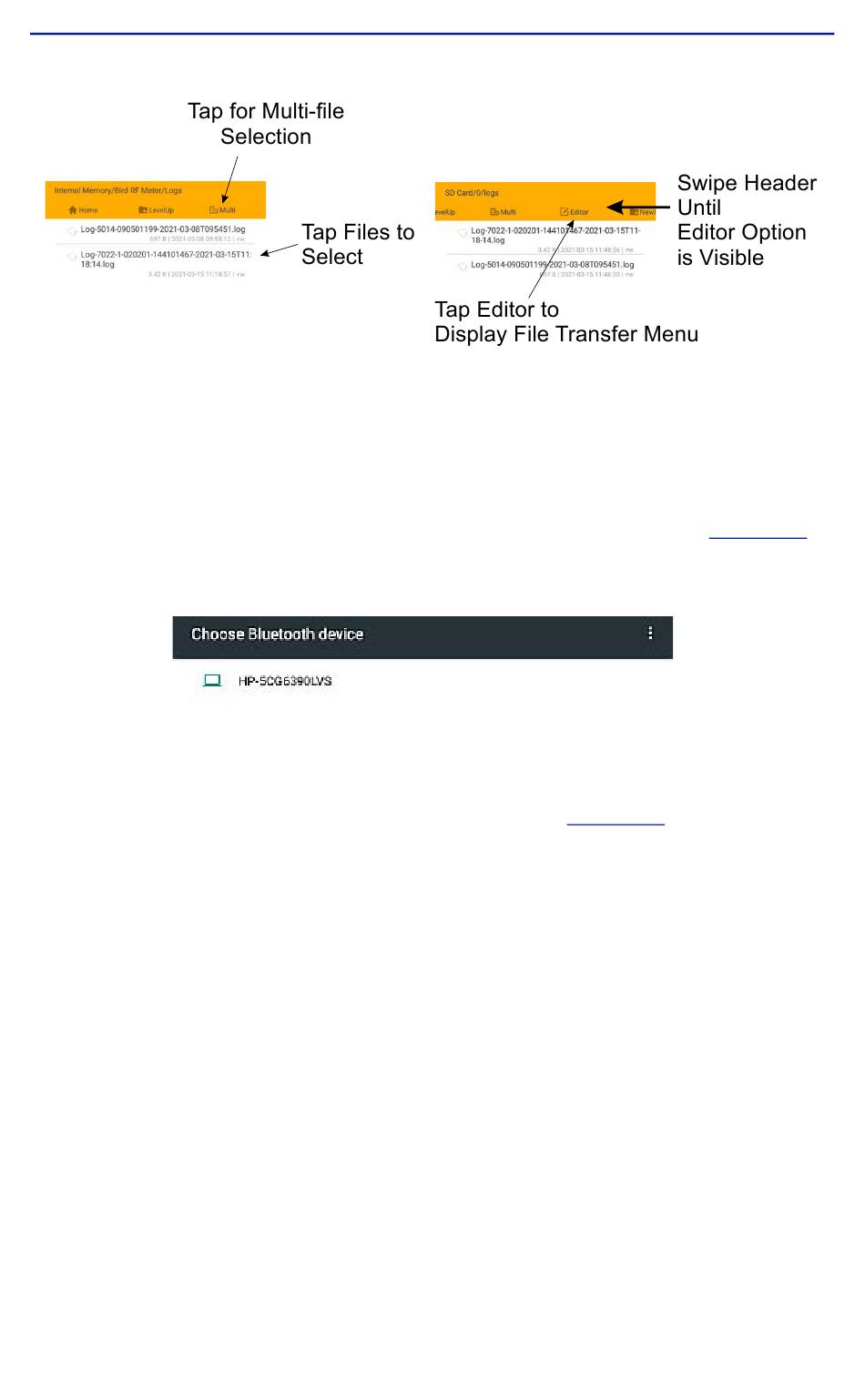

Figure 28
Multiple File Selection
10. If transferring just one file:
a.
Long press the file name.
b. Tap Send.
11. Tap the Bluetooth option in the Send Menu.
12. Tap the PC name in the Bluetooth Device Selection screen. See
Figure 29
Bluetooth Device selection
Windows PC
Note: The "Save the received file" dialog will appear on the PC once
the files are received from the 5000-NG. See
13. Click the Browse.. button to select a location to save the files.
Skip to use the default.
File Transfers and Updates
Figure 29
.
Figure 30
.
40
