Wideband RF Power Sensor (WPS) Measurements

See
"Wideband RF Power Sensor (WPS) Measurements" on page 48
The WPS are available with the frequency ranges shown below:
5012D: 350-4000 MHz
5016D: 350-4000 MHz
5017D: 25-1000 MHz
5018D: 150-4000 MHz
5019D: 25-1000 MHz

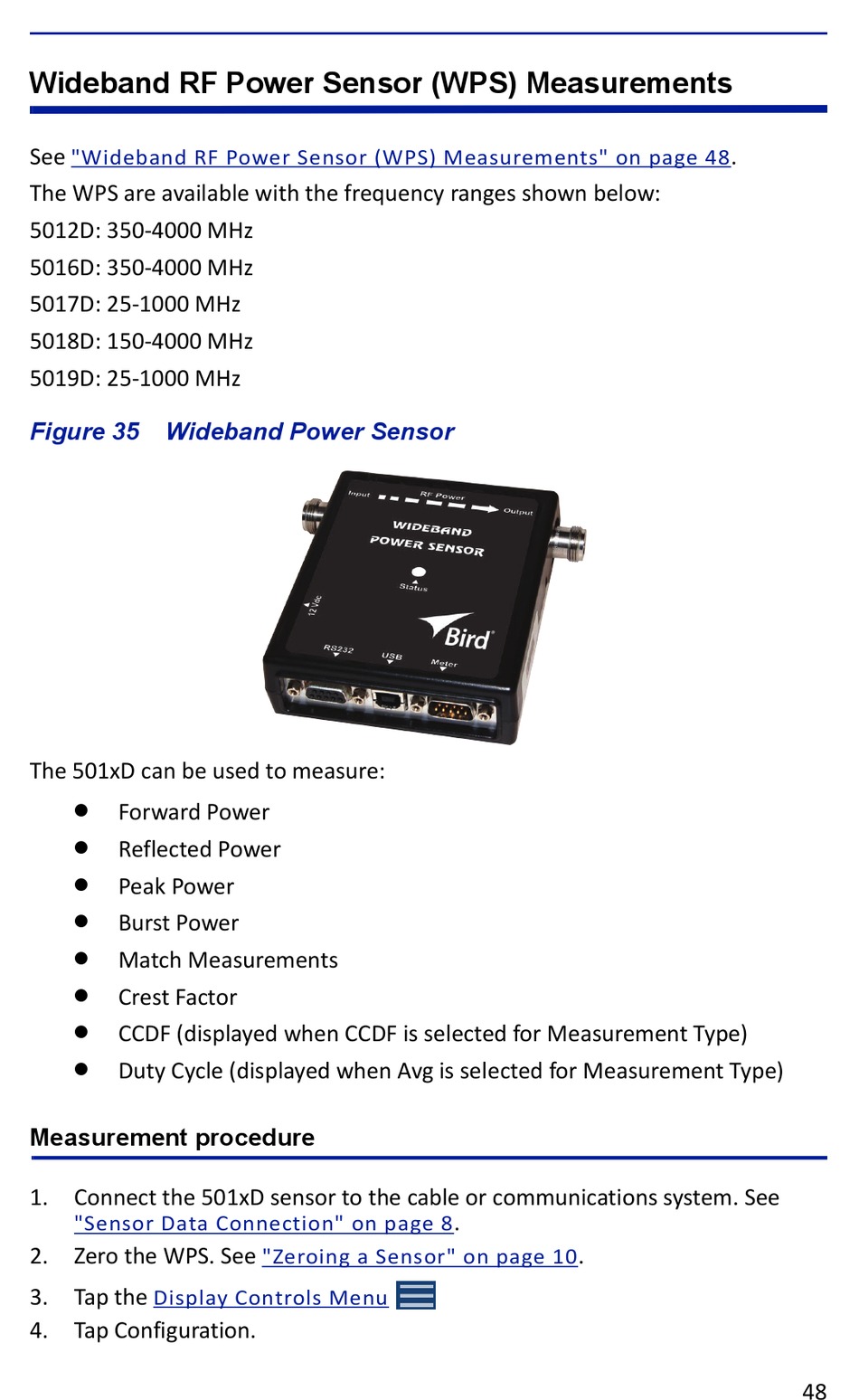

Figure 35 Wideband Power Sensor
The 501xD can be used to measure:

Forward Power

Reflected Power

Peak Power

Burst Power

Match Measurements

Crest Factor

CCDF (displayed when CCDF is selected for Measurement Type)

Duty Cycle (displayed when Avg is selected for Measurement Type)

Measurement procedure

1. Connect the 501xD sensor to the cable or communications system. See
"Sensor Data Connection" on page 8
2. Zero the WPS. See
3. Tap the
Display Controls Menu
4. Tap Configuration.
"Zeroing a Sensor" on page 10
.
.
.
