Chapter 1 Introduction
The Digital Power Meter Display, 5000-NG is a hand held device designed for use
with many of Bird's Power Sensors to measure RF power in a variety of systems.

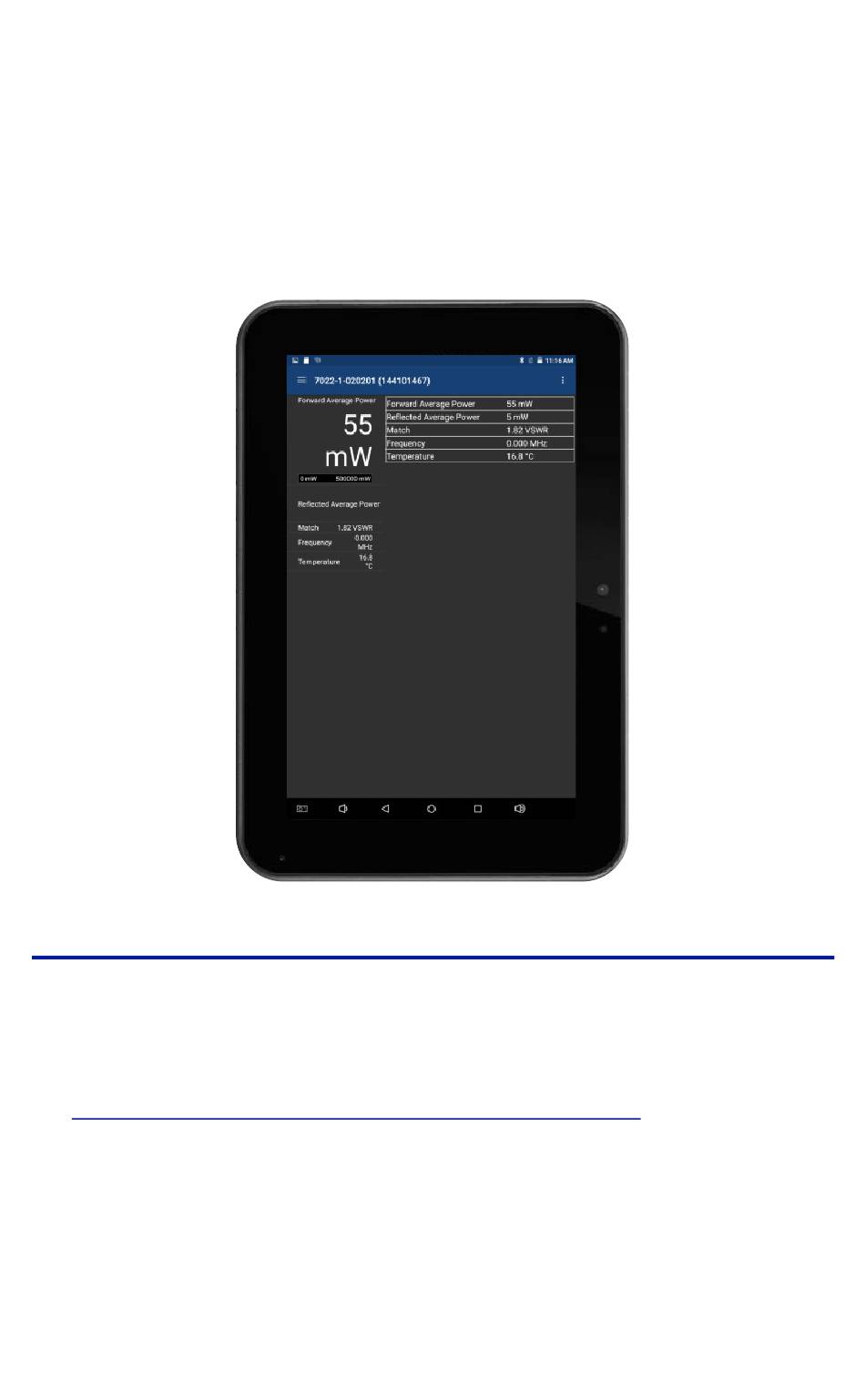

Figure 1 Digital Power Meter Display, 5000-NG

Measuring RF Power

The 5000-NG utilizes the RF Power Meter Software. The Bird RF Power Meter
Software allows the 5000-NG to be used with a variety of Bird RF Power Sensors.
To measure transmitter RF power, connect the power sensor to the 5000-NG. RF
Power measurements verify and monitor the condition of a transmitter system.
See for details on how
"RF Power Meter Software User Interface" on page 11
to use the Bird RF Power Meter Software.
