- Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) OPERATING INSTRUCTIONS DIGITAL POWER METER MODEL 5000...
- Page 2 INSTRUCTION BOOK DIGITAL POWER METER MODEL 5000 AND POWER SENSORS MODELS 5010, 5011, AND 5011-EF ©Copyright 2003 by Bird Electronic Corporation Instruction Book P/N 920-5000S Rev. E. ® THRULINE is a Registered Trademark of Bird Electronic Corporation ® ® Microsoft...
- Page 3 I am not blank...
-
Page 4: Safety Precautions
Safety Precautions The following are general safety precautions that are not necessarily related to any specific part or procedure, and do not necessarily appear elsewhere in this publication. These precautions must be thoroughly understood and apply to all phases of operation and maintenance. - Page 5 Bird Model 5000 Digital Power Meter Safety Earth Ground An uninterruptible earth safety ground must be supplied from the main power source to test instruments. Grounding one conductor of a two conductor power cable is not sufficient protection. Serious injury or death can occur if this grounding is not properly supplied.
- Page 6 Damage may occur if torque is applied to the sensor body. CAUTION Ground all instruments before connecting the TPS. Electric shock could damage the sensor. CAUTION Use a Bird adapter only and do not use the adapter with the batteries removed.
- Page 7 Bird Model 5000 Digital Power Meter CAUTION Do not exceed 2 W average or 125 W peak power for 5 µs when using the TPS or TPS-EF. Doing so will render the sensor inoperative. CAUTION Harsh or abrasive detergents and some solvents can damage the display unit and information on the labels.
- Page 8 BENUTZUNG WIRD DAS GERÄT AUF ANDERE WEISE VERWENDET ALS VOM HERSTELLER BESCHRIEBEN, KANN DIE GERÄTESICHERHEIT BEEINTRÄCHTIGT WERDEN. UTILISATION TOUTE UTILISATION DE CET INSTRUMENT QUI N’EST PAS EXPLICITEMENT PRÉVUE PAR LE FABRICANT PEUT ENDOMMAGER LE DISPOSITIF DE PROTECTION DE L’INSTRUMENT. IMPIEGO QUALORA QUESTO STRUMENTO VENISSE UTILIZZATO IN MODO DIVERSO DA COME SPECIFICATO DAL PRODUTTORE LA PROZIONE...
- Page 9 Bird Model 5000 Digital Power Meter WARTUNG ANWEISUNGEN FÜR DIE WARTUNG DES GERÄTES GELTEN NUR FÜR GESCHULTES FACHPERSONAL. ZUR VERMEIDUNG GEFÄHRLICHE, ELEKTRISCHE SCHOCKS, SIND WARTUNGSARBEITEN AUSSCHLIEßLICH VON QUALIFIZIERTEM SERVICEPERSONAL DURCHZUFÜHREN. ENTRENTIEN L’EMPLOI DES INSTRUCTIONS D’ENTRETIEN DOIT ÊTRE RÉSERVÉ AU PERSONNEL FORMÉ...
-
Page 10: About This Manual

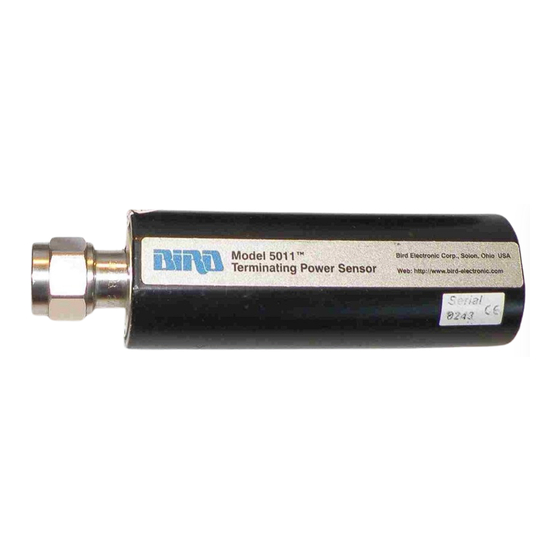

About This Manual This instruction manual guides users through the operation and maintenance of the Bird 5000 Digital Power Meter (DPM), as well as the Bird 5010 Directional Power Sensor (DPS) and Bird 5011 and 5011-EF Terminating Power Sensors (TPS). - Page 11 Bird Model 5000 Digital Power Meter Operation — Explains how to make measurements with the DPM, and the special functions used with specific sensors. Maintenance — Lists routine maintenance tasks for the Digital Power Meter, and troubleshooting tips for common problems. Specifications and battery information are also included.
-
Page 12: Table Of Contents
Table of Contents Safety Precautions ......i About This Manual ......vii Introduction. - Page 13 Battery Replacement ..... . . 20 Customer Service......21 Parts List .
-
Page 14: Introduction
Chapter 1 Introduction Items Supplied Figure 1 Supplied Items 1. Bird Digital Power Meter (DPM) 2. AC Mains Adapter 3. Instruction Book... -
Page 15: Component Description
Bird Model 5000 Digital Power Meter Component Description Model 5000 Digital Power Meter Figure 2 Component Description... - Page 16 Introduction Activates the command displayed Speed Keys above it. Turns the DPM on or off. On Key Toggles between positive and +/- Key negative numbers. Completes data entry. Enter Key Aborts data entry without accepting Escape Key changes. Turns the backlight on momentarily. Backlight Key Enter offset values in dB.
-
Page 17: Display Description
Bird Model 5000 Digital Power Meter Display Description True Avg Power µ Match Eff% Rho VSWR dBr RL dBm W mW KW Overrange Low Bat Sens µ Match Eff% Rho VSWR dBr RL dBm W mW KW Scale Units Units... -
Page 18: Speed Keys
Introduction Proportional to the major Analog Bar Graph display. Minimum at 0 W or –20 dBm. Max at full scale power. Turns on when the forward Overrange power exceeds 100% of scale or Indicator the reflected power exceeds 120% of scale. Turns on when the batteries 10. -
Page 19: Indicators
Offset Indicator — “Fwd” will blink when an offset has been applied. Features Compatibility — The DPM is compatible with Bird Thruline or Terminating Power Sensors, and with Bird VSWR Alarm and Broadcast Power Monitor products with the use of an accessory adapter. -
Page 20: Optional Equipment
Includes interface cable. Terminating Power Sensors (TPS)— Highly accurate terminating sensors; do not require elements. The Bird 5011 frequency range is 40 MHz – 4 GHz. The 5011-EF frequency range is 40 MHz – 12 GHz. Includes interface cable. - Page 21 Bird Model 5000 Digital Power Meter Interface Software — (P/N 4397A040) PC software with real time display of DPM measurements. Can also log data for analysis, printing, or storage. System requirements: IBM PC or equivalent; Windows 95 or later, 2 MB free hard disk space; VGA monitor, open Com port.
-
Page 22: Installation
When using the cigarette lighter adapter, charge time will depend on the car battery charge. CAUTION Use a Bird adapter only and do not use the adapter with the batteries removed. AC Mains Adapter — To use the ac adapter. insert the adapter’s barrel connector into the DPM’s... - Page 23 Bird Model 5000 Digital Power Meter Figure 4 DPM Connections...
-
Page 24: Dpm Connection
Installation DPM Connection CAUTION Always turn off the DPM before connecting or disconnecting a sensor. Although unlikely, it is possible to corrupt the power sensor firmware by connecting it to the DPM while the DPM is on. To prevent this, always turn the DPM off before connecting or disconnecting a sensor. -
Page 25: Terminating Power Sensor (Tps)
Bird Model 5000 Digital Power Meter Figure 5 DPS Element Orientation Terminating Power Sensor (TPS) CAUTION Ground all instruments before connecting the TPS(-EF). Electric shock could damage the sensor. CAUTION When connecting the TPS or the TPS-EF, only turn the connector nut. Damage may occur if torque is applied to the sensor body. -
Page 26: Operation
Chapter 3 Operation The Bird Digital Power Meter is very easy to operate. Once a sensor is connected, turn the DPM on and take a reading. Additional commands are available, depending on the sensor used. Normal Operation Connect the sensor. -
Page 27: Loading Setups
NOTE: Entering 0 returns the DPM to its default scale and offset. Directional Power Sensor The Directional Power Sensor (DPS) uses Bird Plug-In Elements. These are labeled with a max power and a frequency range. The transmitter frequency should be within the element range, and the forward element power should be 10x the reverse element power. -
Page 28: Terminating Power Sensor
RF power is applied to the sensor, press ENTER and zero the sensor again. TPS-EF The Bird 5011-EF uses frequency correction factors to provide more accurate measurements. To use these, look at the label on the side of the sensor and find the correction factor for the frequency being measured. - Page 29 Bird Model 5000 Digital Power Meter...
-
Page 30: Maintenance
Harsh or abrasive detergents and some solvents can damage the display unit and information on the labels. Clean the Bird Digital Power Meter and its display with a soft cloth dampened with mild detergent and water only. Clean sensors with a dry cleaning solvent that leaves no residue. -
Page 31: Troubleshooting
Bird Model 5000 Digital Power Meter Troubleshooting PROBLEM POSSIBLE REMEDY CAUSE Nothing shown Unit is off Momentarily press the on display ON key. Batteries are Use external power drained source. (page 9) Replace the batteries. (page 20) DPM firmware Update firmware. - Page 32 Damaged Replace element. element (DPS) Sensor has lost Rezero sensor. its zero (TPS) Sensor is Replace sensor. damaged Sensor calibra- Return sensor to Bird tion corrupted for recalibration. Turn off the DPM before connecting or disconnecting a sensor.
-
Page 33: Battery Replacement
Bird Model 5000 Digital Power Meter Battery Replacement The Nickel-Metal Hydride (Ni-MH) batteries do not normally need to be replaced. If necessary, however, follow these instructions (see Figure 6). WARNING Disconnect from external power before any disassembly. The potential for electric shock exists. -
Page 34: Customer Service
If you need to return the unit for any reason, contact the Bird Service Center for a return authorization. All instruments returned must be shipped prepaid and to the attention of Bird Service Center. -
Page 35: Parts List
Bird Model 5000 Digital Power Meter Parts List Part Name Part Number Digital Power Meter 5000 AC adapter 120V ac 5A2229 230V ac 5A2226 Cigarette Lighter Adapter 5A2238-1 Directional Power Sensor 5010 DPM Elements Various See P/N 871-DPM-019-901, the DPM Element Guide,... -
Page 36: Attenuators & Accessories
Maintenance Attenuators & Accessories N(F) – N(M) Attenuators (RF power range with TPS) 30 dB (10 mW – 10 W) 8353A030–10 40 db (100 mW – 50 W) 8353A040–50 DC Block 5011A035–1 N(F) – N(M) Test Cable, 1.5 m TC–MNFN–1.5–G N(F) –... -
Page 37: Specifications
Bird Model 5000 Digital Power Meter Specifications Bird 5000 Digital Power Meter Display Backlit LCD with major and minor displays and analog bar graph Major Display 5 digits, 5/16” High Minor Display 5 digits, 1/4” High Analog Bar Graph 20 segment, horizontal orientation. - Page 38 Maintenance Storage Temp. –4 to 122 ° F (–20 to +50 °C) Humidity 95% ± 5% max. (non-condensing) Altitude 15,000 ft. (4572 m) operating Complies with directive 92/31/ EEC with exceptions noted: Emissions: EN-55011:1991, Class B EN-61000-3-2:1995 EN-61000-3-3:1995 Immunity: EN-50082-2:1997 Safety Complies with EN-61010, IAW Council Directives 73/23/EEC and...
- Page 39 Bird Model 5000 Digital Power Meter Bird 5010 Sensor Sensor Type / Bird Thruline directional dual- element line section. Uses two Elements Bird DPM Elements. † Power 0.1 to 1,000 W † Frequency Range 2 MHz to 3600 MHz Accuracy With DPM Elements: ±5% of reading 15 to 35 °C RSS...
- Page 40 Maintenance Bird 5011 and 5011-EF Sensors Sensor Type Diode based terminated true average power measurement µ Power W to 10 mW (–20 dBm to +10 dBm) Maximum Power 2 W avg. 125 W peak for 5 µs Frequency Range 5011...
- Page 41 Bird Model 5000 Digital Power Meter Power Supply From host instrument via cable connection Operating Temp. –10 to +50 °C (+14 to +122 °F) Storage Temp. –40 to +80 °C (–40 to +176 °F) Humidity 95% max. (non-condensing) Altitude 15,000 ft operating Size 6”...
- Page 42 Limited Warranty All products manufactured by Seller are warranted to be free from defects in material and workmanship for a period of one (1) year, unless otherwise specified, from date of shipment and to conform to applicable specifications, drawings, blueprints and/or samples. Seller’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
- Page 43 Digital Power Meter and Power Sensor Models: 5000 5010 The undersigned hereby declares, on behalf of Bird Electronic Corporation of Cleveland, Ohio, that the above- referenced product, to which this declaration relates, is in conformity with the provisions of the following standards with exceptions noted;...
- Page 44 Product: Terminating Power Sensor Models: 5011 The undersigned hereby declares, on behalf of Bird Electronic Corporation of Cleveland, Ohio, that the above- referenced product, to which this declaration relates, is in conformity with the provisions of the following standards with exceptions noted;...
- Page 45 Product: Terminating Power Sensor Models: 5011-EF The undersigned hereby declares, on behalf of Bird Electronic Corporation of Cleveland, Ohio, that the above referenced product, to which this declaration relates, is in conformity with the provisions of the following standards; •...
- Page 47 QUALITY INSTRUMENTS FOR RF POWER MEASUREMENTS From 2 to 4000 MHz and from 25 milliwatts to 250 kilowatts in 50 ohm coaxial line systems ® TERMALINE ABSORPTION WATTMETERS LOAD RESISTORS CALORIMETERS ® THRULINE DIRECTIONAL MONITORING WATTMETERS ® TENULINE ATTENUATORS ® COAXWITCH SELECTOR SWITCHES...
