Figure 6-5: Programmable Clock Source on the AX7Z100 FPGA Core Board
GTX clock source ZYNQ pin assignment:：
BANK111_CLK1_P
BANK111_CLK1_N

Part 7: LED Light

There are 2 red LED lights on the AC7Z100 FPGA core board, one of
which is the power indicator light (PWR), one is the configuration LED light
(DONE). When the core board is powered, the power indicator will illuminate;
when the FPGA is configured, the configuration LED will illuminate. The
schematic diagram of the LED light hardware connection is shown in Figure
7-1:
20 / 33
ZYNQ FPGA Development Board AC7Z100 User Manual

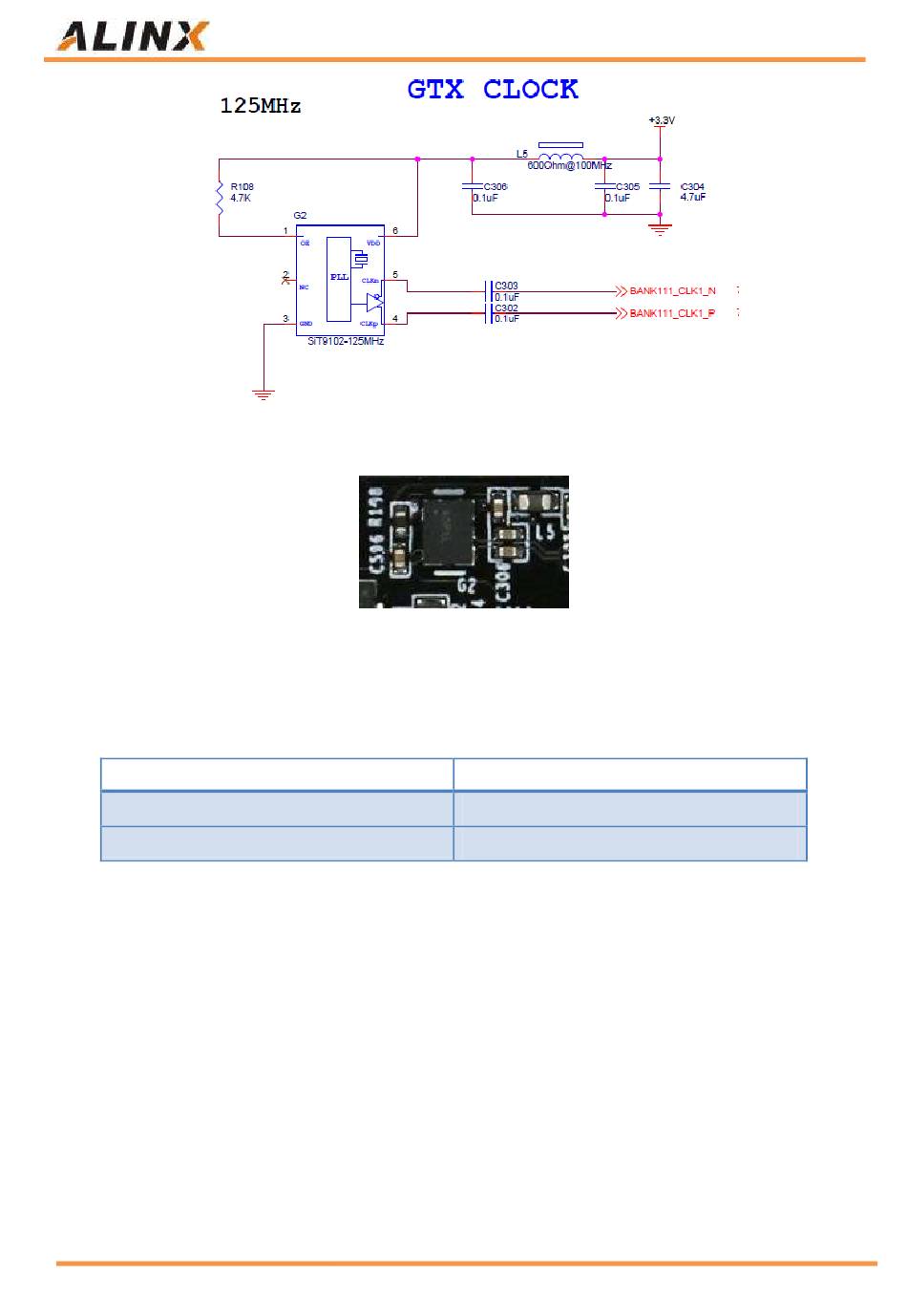

Figure 6-4: GTX Clock Source
Signal Name
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin
AC8
AC7
