CAUTION
! !
Do not attempt to start or ride the vehicle
•
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
Turn the ignition switch "OFF" before
•
checking or replacing the fuse to prevent
accidental short-circuiting.

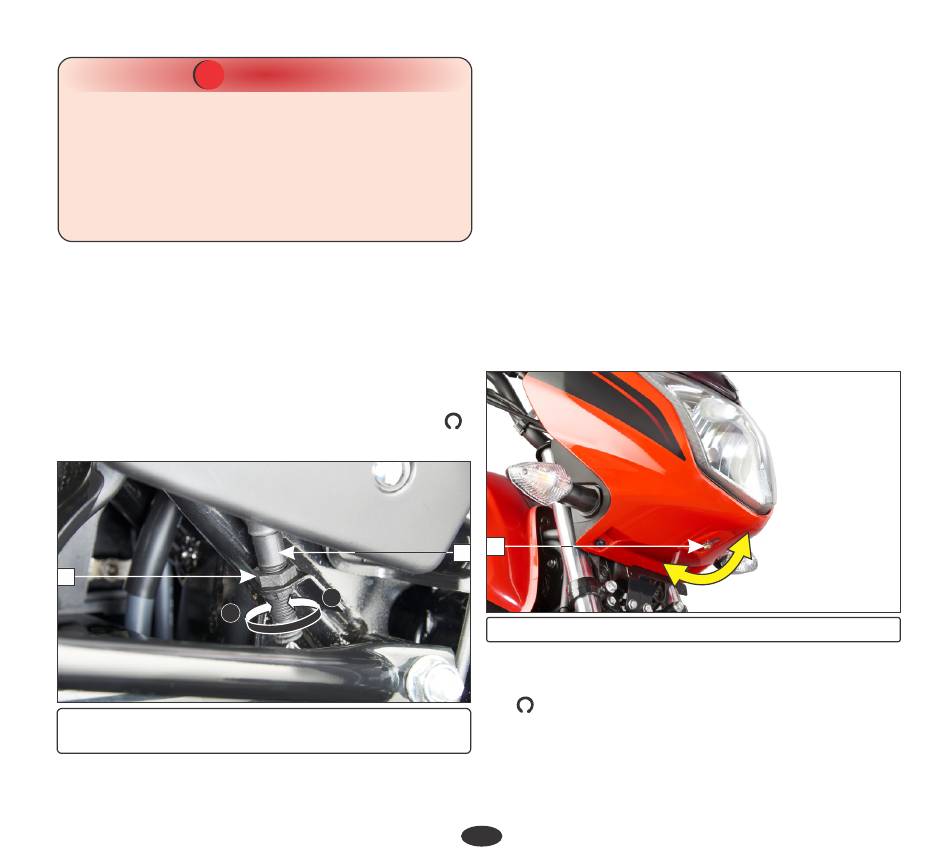

STOP LAMP SWITCH

The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 47)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows:
Turn the ignition switch to the "ON" ( )
•
position.
2
A
(1) Stop lamp switch
(A) Advance
•

HEADLAMP FOCUS ADJUSTMENT

Headlamp is factory preset. However in case
of adjustment required, please follow the steps
as given below:
•
1
1
B
•
•
(2) Adjusting nut
•
(B) Retard
58
Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
depressed to the limit of its free play. Turn
the adjusting nut in direction (A) to advance
switch timing or in direction (B) to retard
switch timing.
Headlamp adjustment is done by the
headlamp adjusting bolt (1) located below
headlamp.
(1) Headlamp adjusting bolt
Park the vehicle on level ground.
Turn the ignition switch to "ON" position
( ) and start the engine.
Adjust the headl
by loosening the bolt & move the headlamp
unit forward & backward for correct focus
adjustment.
amp beam vertically
