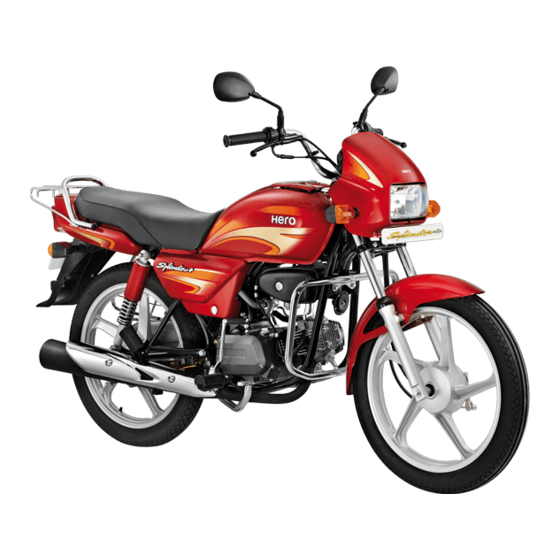

HERO Splendor Plus Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Thank you for selecting a Hero MotoCorp Splendor Plus. We wish you many miles of
continued riding pleasure in the years ahead.
We, at Hero MotoCorp, are committed to demonstrate excellence in our environment
performance on a continual basis, as an intrinsic element of our corporate philosophy. To
achieve this we commit ourselves to continue product innovations to improve
environment compatibility, comply with all applicable legislation including
environment legislation and strengthen the green supply chain.
Your motorcycle is conforming to latest (Bharat Stage-III norms) regulation for
emission, safety & noise levels. We are also using non asbestos brake shoes and engine
gaskets which are environment friendly in nature.
This booklet is your guide to the basic operation and maintenance of your new Hero
MotoCorp Splendor Plus. Please take time to read it carefully. As with any fine
machine, proper care and maintenance are essential for trouble-free operation and
optimum performance.
Your Authorised Hero MotoCorp dealer will be glad to provide further information or
assistance and is equipped to handle your future service needs.
Let us make this world a safer, healthier and more environment friendly place.
PREFACE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Splendor Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HERO Splendor Plus

Summary of Contents for HERO Splendor Plus

  • Page 1 PREFACE Thank you for selecting a Hero MotoCorp Splendor Plus. We wish you many miles of continued riding pleasure in the years ahead. We, at Hero MotoCorp, are committed to demonstrate excellence in our environment performance on a continual basis, as an intrinsic element of our corporate philosophy. To...
  • Page 2 AVAILABLE AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED. Hero MotoCorp Limited. RESERVES THE RIGHT TO MAKE CHANGES IN ITS CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN PERMISSION FROM Hero MotoCorp Limited.

  • Page 3: Utility Box

    STEERING LOCK FUEL VALVE STOP LAMP SWITCH HEADLAMP ADJUSTMENT CATALYTIC CONVERTER AIR SUCTION VALVE UTILITY BOX HERO GENUINE PARTS...
  • Page 4 Manufacturer Vehicle Year of Assembly Month of Serial Engine Year of Assembly Month of Serial Code Description Mfg. Plant Mfg. Number Description Mfg. Plant Mfg. Number Model Code.: Model Engine Splendor Plus (Kick, Drum, Spoke) Splendor Plus ((Kick, Drum, Cast)
  • Page 5 1970 mm 720 mm 1040 mm 1230 mm Saddle Height 785 mm 159 mm 109 kg 0.95 litres at the disassembly 0.75 litres at draining 11 litres (minimum) 1 litre (usable) 162-165 ml Maximum power 5.50 kW (7.5 Ps) @ 8000 r/min Maximum torque 7.95 N-m @ 5000 r/min 9.0 :1...
  • Page 6 Front Suspension Telescopic Hydraulic Shock Absorbers Swing Arm with Hydraulic Shock Absorber Rear Suspension Trail length 2.75 x 18 - 4 PR / 42P 2.75 x 18 - 6 PR / 48P Front Wheel Spoke / Cast Wheel (Optional) Spoke / Cast Wheel (Optional) Rear Wheel 3.722 3.071...
  • Page 7 9. To make yourself more visible, wear bright reflective clothing that fits well. 10. Take care of loose / hanging clothes while solo / pillion riding. 11. Get your motorcycle serviced regularly by the Authorised Hero MotoCorp workshop.
  • Page 8 Genuine Engine Oil: Hero 4T Plus SAE 10W 30 SL grade (JASO MA2) engine oil recommended by Hero MotoCorp and make sure you change it every 6000 kms.
  • Page 9 (1) Turn signal indicator (9) Fuel gauge (2) Horn switch (10) High beam indicator (3) Turn signal switch (11) Rear view mirror (4) Headlamp switch (12) Throttle grip (5) Headlamp dimmer switch (13) Front turn signal lamp (6) Speedometer (14) Ignition switch with steering lock (7) Odometer (15) Fuel tank lid (8) Neutral indicator...
  • Page 10 (1) Carburetor (7) Women pillion step (12) Left side cover (2) Gear shift pedal (8) Saree guard (13) Air suction valve (3) Rider foot rest (9) Reflex reflector (14) Fuel valve (4) Main stand (10) Tail /Stop lamp (15) Clutch lever (5) Side stand (11) Rear carrier (6) Pillion foot rest...
  • Page 11 (1) Pillion foot rest (6) Utility box (11) B attery compartment (inside) (2) Kick start pedal (7) Front suspension (12) Seat (3) Rider foot rest (8) Headlamp (13) Rear turn signal lamp (4) Oil level dipstick (9) Visor (14) Rear suspension (5) Rear brake pedal (10) Front brake lever *Accessories and features shown may not be part of standard fitment.
  • Page 12 headlamp. Sl. No. Description Function Speedometer Indicates driving speed Gear shifting range Shows the appropriate speeds for shifting gears Odometer Shows accumulated mileage Fuel gauge Indicates approximate fuel quantity High beam indicator Light glows when headlamp is in Hi Beam Neutral Indicator Light glows when vehicle is in neutral Turn signal indicators...
  • Page 13 “ON” Position “OFF” Position / Lock Open “LOCK” Position “ON” The engine can be started, Turn signal lamps, Horn, Tail/Stop lamp and Fuel Gauge will be functional “OFF” Engine cannot be started and no electrical system will be functional “LOCK” Steering can be locked...
  • Page 14 Left Handlebar Controls 3. Position lamp switch 1. Headlamp switch Select to put the position lamp to “ON”. white Shift the turn signal switch sideways for Right/Left indications and leave it to come back to its normal position on its own. IMPORTANT : To switch “OFF”...

  • Page 15: Fuel Valve

    (1) Ignition key FUEL VALVE...
  • Page 16 1. To remove the fuel tank cap (1), insert At “RES”, fuel will flow from the reserve the ignition key (2), turn it anti- fuel supply to the carburetor. Use the clockwise and open the lid (3) as shown reserve fuel only when the main supply is in the picture.

  • Page 17: Engine Oil

    ENGINE OIL U s e h e r o g e n u i n e e n g i n e o i l o r recommended grade oil. BRAND: Hero 4T plus GRADE: SAE 10W 30 SL Grade UPPER (JASO MA2).
  • Page 18 7. Make sure that oil level is at the upper 3. Reinsert the oil level dipstick without screwing it in and check the oil level. level mark of the oil level dipstick with 4. If required, add the specified oil up to the motorcycle parked on its main the upper level mark.
  • Page 19 TYRES NOTE The imported tyre(s) if fitted without ISI mark; are in compliance of BIS standard and Central Motor Vehicle Rules 1989, as declared by the Tyre manufacturer. To safely operate your motorcycle, the tyres must be of recommended type and size, in good condition with adequate tread, and correctly inflated.
  • Page 20 (1) Wear indicator Also, if you hit a pothole or hard object, pull to the side of the road as soon as you safely can and carefully inspect the tyres for damage.
  • Page 21 30-31 32-34 28). 8. Lamps and Horn - check that headlamp, tail/stop lamp, turn signals, indicators and horn function properly. 38-39 12-14 Front and rear brakes - check operation. Adjust free play if necessary 13. Air Suction Valve - make sure that all (pages 34-38).
  • Page 22 Turn the fuel valve “ON”. Open the throttle slightly and kick start the engine. Select indicator glows on Never run the engine in a closed area, the exhaust contains poisonous gases.
  • Page 23 the clutch lever and shift to 2 gear 3 and 4 (top gear). Recommended Shifting Speed 0-20 km/hr 15-30 km/hr 20-40 km/hr 30 km/hr and above pedal to shift into 1 (low) gear.
  • Page 24 All your actions should be smooth under these conditions. Sudden Do not shift gears without operating clutch accelerations, braking or turning may and without closing the throttle otherwise cause loss of control. For your safety, this would lead to damage of gears. exercise extreme caution when braking, accelerating or turning.
  • Page 25 Tool bag- 1 No. +, - No. 2 Driver- 1 No. Grip- 1 No. Box wrench 16 x 14- 1 No. To open, insert the key (1), rotate it clockwise, pull the cover (2), and slide it sideways to disengage it from the hook (3). The first aid kit (2) is stored in the utility box.
  • Page 26 1st 60 Next 100 Next 100 Next 100 Next 100 Next 100 3000-3500 6000-6500 9000-9500 12000- 15000- 3000 6000 9000 12000 15000 12500 15500 Air Cleaner* I,C,L,A at every 2000 kms I,C,L,A at every 2000 kms Battery Brake Shoe Wear...
  • Page 27 Replace once in every two years or 30000 kms. whichever is earlier. Check idle CO emission along with idle r/min / idle CO adjustment (if required). Visit Authorised Hero MotoCorp workshop for inspection, cleaning, lubrication and adjustment of drive chain at every 2000 kms.
  • Page 28 5. Remove centrifugal filter cover (5) & clean the centrifugal filter (6) with non flammable or high flash point solvent (kerosene). 6. Reinstall the centrifugal filter cover, right crankcase cover, kick start pedal & Remove the kick starter pedal (1), disconnect the clutch cable (2).
  • Page 29 0.6-0.7 mm Recommended plugs : NGK - CR7HSA, BOSCH - UR4AC, Federal Mogul - P-RZ9HC number; consult Authorised Hero MotoCorp workshop on this if required. Clean any dirt around the spark plug base. Disconnect the noise suppressor cap and spark plug wrench provided in the tool...
  • Page 30 Insert the ignition key into the side cover lock (1). Remove the side cover (2) by turning the key clockwise. Pull out lug (3) from the grommet and push the cover as per direction indicated (4). lock (3) Lug (4) Direction Indication (7) Mounting clamp (8) Inner lug Pull out the filter assembly by...
  • Page 31 Never use petrol or low flash point solvent for cleaning the air cleaner element. A fire or explosion could result. Soak the air cleaner element in clean gear oil (SAE 80 or 90) and squeeze out the excess oil. Install the air cleaner element, on holder, insert filter assy.
  • Page 32 Center and both the inlet and exhaust valves are closed. This condition can be determined by moving the rocker arms. If they are free, it is an indication that the valves are closed and the piston is in compression stroke. If they are tight the valves are open, rotate the flywheel 360 anticlockwise and re-align the 'T' mark with the index...
  • Page 33 The checking or adjusting of valve clearance should be performed while the engine is cold. The clearance will change as the engine temperature rises. 0.05 mm 0.05 mm R/MIN r/min...
  • Page 34 Tighten the lock nut and check the adjustment. If proper adjustment cannot be obtained or the clutch does not work correctly, visit your Authorized Hero MotoCorp workshop. Check that the clutch cable routing is correct.
  • Page 35 Turn the chain to view chain lock plate (4) inside the hole. Ensure that the “OFF” chain lock plate open end (5) is installed in the opposite direction of the chain rotation. to allow approximately 25 mm vertical (4) Chain lock plate (5) Open end...
  • Page 36 adjusting nut clockwise to decrease the slack or anticlockwise to increase the slack of the chain. Align the chain adjuster index mark (5) w i t h t h e c o r r e s p o n d i n g s c a l e graduations (6) on both the sides of the swing arm equally.
  • Page 37 NOTE Visit Authorised Hero MotoCorp workshop for inspection, cleaning, lubrication and adjustment of drive chain at every 2000 kms. Adjustment 1. Place the motorcycle on its main stand. 2. Measure the distance, the front brake...
  • Page 38 Decrease freeplay (Clockwise) (B) Increase freeplay (Anti-Clockwise) (A) CUT-OUT NOT SEATED If proper adjustment cannot be obtained by this method, visit your Authorized Hero MotoCorp workshop. (B) CUT-OUT SEATED Measure the distance brake pedal (1) moves before the brake starts to take hold.
  • Page 39 Make sure that the cut-out on the adjusting nut is seated on the brake arm pin (4) after the final adjustment has been made. If proper adjustment cannot be obtained by this method, visit your Authorised Hero MotoCorp workshop. Spoke wheel version (Spoke wheel version)
  • Page 40 Front Brake Wear Indication (Cast wheel version) Rear Brake Wear Indication...
  • Page 41 (1) Battery (2) Upper level mark (3) Lower level mark (4) Negative terminal (5) Positive terminal (6) Bolt (7) Bracket Check the battery electrolyte. The electrolyte level must be maintained between the upper (2) and lower (3) level marks on the battery. If the electrolyte level is low, disconnect the cable from battery negative (4) and positive (5) terminals, remove the bolt (6) and remove...
  • Page 42 Dispose off used / old battery to Authorised dealer only. The fuse holder (1) is placed adjacent to the battery which consists of specified fuse 7A (2) and spare fuse (3). 3 Spare Fuse...

  • Page 43: Headlamp Adjustment

    STOP LAMP SWITCH HEADLAMP ADJUSTMENT The stop lamp switch (1) must be adjusted Headlamp so that stop lamp will glow when rear brake is applied. Rear brake free play (page 36-37) should be adjusted before Headlamp adjustment is done by the performing stop lamp switch adjustment.
  • Page 44 2. Remove the speedometer cable (1) by pressing the tab (2) & then pull out the cable. 3. Disconnect the brake cable (3) from brake arm (4) and brake panel (5) by removing the front brake adjusting nut there (6). 4.
  • Page 45 3. Disconnect the brake cable (3) from brake arm (4) and brake panel (5) by removing the front brake adjusting nut (6). 4. Remove the axle nut (7). 5. Remove the axle and then remove the wheel. Tighten the axle nut Axle nut torque : 5.4 kgf-m 35-36 (5) Brake panel...
  • Page 46 stopper arm (4) from the brake panel (5) by Remove the axle nut (8) and pull the axle (9). Remove the wheel. Axle nut torque : 5.4 kgf-m rod, (3) Brake arm, (4) Brake stopper arm, (5) (page 35-36). Lock nut (Spoke wheel version) brake...
  • Page 47 Axle nut torque : 5.4 kgf-m Brake stopper arm nut torque : 2.2 kgf-m Adjust the brake (page 36-37) and drive chain (page 32-34). (Cast wheel version) Remove the axle nut (8) and pull out the axle (9). Remove the wheel.
  • Page 48 Torque link nut torque : 2.2 kgf-m Our authorised dealership take all Adjust the brake (page 36-37) and above mentioned precautions like drive chain (page 32-34). recommended detergents and usage of muffler caps/plugs during wash to ensure quality wash. Always replace used split pins with new ones.

  • Page 49: Air Suction Valve

    AIR SUCTION VALVE (1) Air Suction Valve Further to meet emission standards this motorcycle is provided with the air suction valve. Air Suction Valve (1) supplies fresh air from the air filter to the exhaust manifold to convert carbon monoxide to carbon dioxide.
  • Page 50 Check fuel valve position Consult Authorised Hero MotoCorp Workshop B. NO SPARK AT SPARK PLUG Check Spark Plug for Fouling/ Improper Electrode Gap Check for Poorly Connected or Loose Spark Plug Wire Consult Authorised Hero MotoCorp Workshop Check Choke Lever Position...
  • Page 51 Spark Plug Loose in Cylinder Head Check Air Cleaner Check Tyre Inflation Pressure Consult Authorised Hero MotoCorp Workshop Consult Authorised Hero MotoCorp Workshop...
  • Page 54 & conditions. Terms & conditions Splendor Plus vehicle is warranted for a period of 5 years or 70000 Km, whichever is earlier, from the date of purchase. It is advised that the purchaser avails all free and paid services from the Hero MotoCorp’s authorized workshop as per the recommended schedule, to be eligible for warranty benefits.
  • Page 55 Hero MotoCorp Ltd. If all free services/paid services/oil top-ups are not availed as per the recommended schedule at Hero MotoCorp's authorized workshop. (2) If any other engine oil which is non compatible with product is used other than SAE 10W30 SL Grade (JASO MA2).

  • Page 56: Emission Warranty

    (s) which is/are considered to be the cause of non-compliance with the emission standards. The emission warranty shall be applicable only to those vehicles, which are being regularly maintained at Hero MotoCorp Authorised Dealers/Service Points in accordance with the maintenance schedule provided in the owner's manual.
  • Page 57 WHAT ARE THE BENEFITS OF HERO MOTOCORP GENUINE SPARE PARTS ? 4Assures long life 4Ensures economy for a long time 4Safety of vehicle and rider 4Peace of mind 4Value for money 4Assured quality...
  • Page 58 CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS Clutch Plate Material used is inferior Damages other parts of clutch like, clutch center and outer clutch Affects fuel efficiency Poor acceleration Cam Chain Kit Poor performance Reduced life Gasket Cylinder Head Improper sealing Engine knocking Leads to leakage and smoky exhaust Higher emission level...
  • Page 59 CONSEQUENTIAL DAMAGES ON USING NON-GENUINE PARTS Element Air Cleaner Improper air filtration resulting in premature engine failure Affects fuel efficiency Poor engine performance Spark Plug Frequent stalling of engine Higher emission level Poor engine performance Affects fuel efficiency Poor braking effeciency Brake Pads / Shoes Rider safety - an issue Discs / Drum wear out, resulting in subsequent repair cost...
  • Page 60 Hero MotoCorp Ltd., 3rd Floor, Tower-A, DLF Centre Court, Sector-42, Golf Course Road, DLF Phase 5, Gurgaon -122002, Haryana, India. Tel: 0124-4754800, E-mail: delhi@heromotocorp.com Hero MotoCorp Ltd., 602, 6th Floor, Office Tower-1, Plot No BW58, Logix City Center, Sector-32, Noida – 201301. Tel: 0120-4631000, E-mail: noida@heromotocorp.com Hero MotoCorp Ltd., S.C.O-367-368, First Floor, Sector-34A, Chandigarh-160022, India.
  • Page 61 ZONAL/REGIONAL/AREA OFFICES NORTH ZONE Hero MotoCorp Ltd., Summit Building (10th Floor) Plot No TCG 3/3 Vibhuti Khand, Gomti Nagar Lucknow – 226010, India. Tel: 0522-4006594, E-mail: lucknow@heromotocorp.com Hero MotoCorp Ltd., C-19/134-B ,Third Floor I .P Grand, Lallapura, Sigra , Varanasi, Uttar Pradesh - 221010, India.
